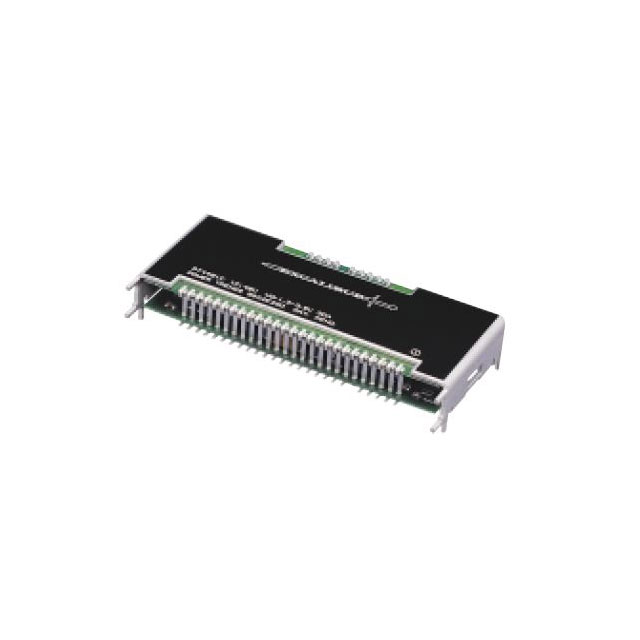

PT4661 Series

Catalog

DC DC CONVERTER 5V 3.3V 99W

Part	Features	Voltage - Input (Min) [Min]	Voltage - Output 1	Package / Case	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Type	Voltage - Output 2	Current - Output (Max)	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Efficiency	Applications
Texas Instruments PT4661C	OCP OTP OVP Remote On/Off UVLO	36 V	5 V	26-SMD Module	99 W	75 V	1.5 kV	1.62 in	0.5 in	41.1 mm	3.61 "	91.7 mm	12.7 mm	Isolated Module	3.3 V	10 A 15 A	2	85 °C	-40 °C	Surface Mount	88 %	ITE (Commercial)
Texas Instruments PT4661N		36 V	5 V	26-SIP Module	99 W	75 V	1.5 kV							Isolated Module	3.3 V	10 A 15 A	2	85 °C	-40 °C	Through Hole	88 %	ITE (Commercial)
Texas Instruments PT4661A		36 V	5 V	26-SIP Module	99 W	75 V	1.5 kV							Isolated Module	3.3 V	10 A 15 A	2	85 °C	-40 °C	Through Hole Right Angle	88 %	ITE (Commercial)
