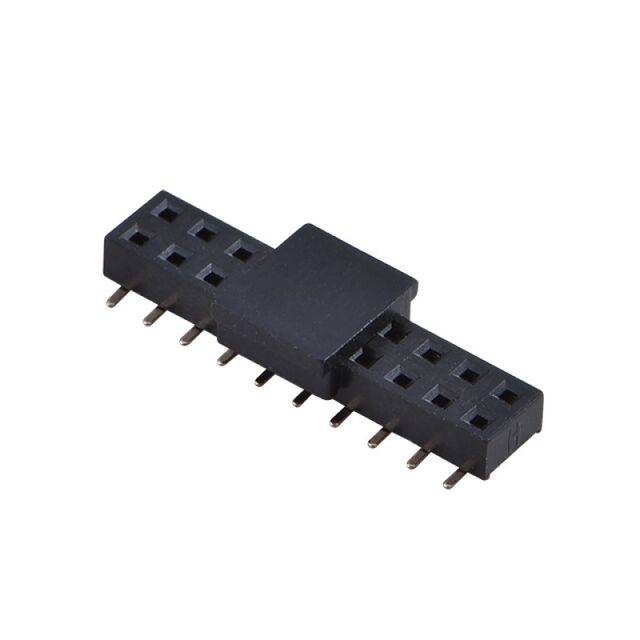

A-BL200-DG Series

Catalog

FEMALE HEADER

...

Part	Contact Material	Insulation Material	Contact Shape	Features	Number of Positions	Number of Positions Loaded	Termination	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Material Flammability Rating	Mounting Type	Current Rating (Amps)	Connector Type	Contact Finish - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Length - Post [custom]	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish - Post	Insulation Height	Insulation Height
Assmann WSW Components A-BL200-DG-Z58MP1	Phosphor Bronze	Glass Filled Nylon 6T Polyamide (PA6T)	Square	Pick and Place	58	All	Solder	Female Socket	-55 C	105 ░C	2	0.181 in	4.6 mm	0.079 "	2 mm	Black	2 mm	0.079 in	Push-Pull	UL94 V-0	Surface Mount	3 A	Receptacle
Assmann WSW Components A-BL200-DG-G14MP1	Phosphor Bronze	Glass Filled Nylon 6T Polyamide (PA6T)	Square	Pick and Place	14	All	Solder	Female Socket	-55 C	105 ░C	2	0.181 in	4.6 mm	0.079 "	2 mm	Black	2 mm	0.079 in	Push-Pull	UL94 V-0	Surface Mount	3 A	Receptacle	Gold	39.4 µin	1 µm
Assmann WSW Components A-BL200-DG-G32D	Phosphor Bronze	Glass Filled Nylon 6T Polyamide (PA6T)	Square			All	Solder	Female Socket	-40 C	105 ░C	2	0.157 in	4 mm	0.079 "	2 mm	Black	2 mm	0.079 in	Push-Pull	UL94 V-0	Through Hole	3 A	Receptacle	Gold			0.11 in	2.79 mm	Flash
Assmann WSW Components A-BL200DG76-022-KSR1	Phosphor Bronze	Glass Filled Nylon 9T Polyamide (PA9T)	Square	Pick and Place	76	All	Solder	Female Socket	-55 C	105 ░C	2			0.079 "	2 mm	Black	2 mm	0.079 in	Push-Pull	UL94 V-0	Surface Mount	2 A	Receptacle	Gold					Flash	Flash	Gold	0.096 in	2.44 mm
Assmann WSW Components A-BL200-DG-Z56MP1	Phosphor Bronze	Glass Filled Nylon 6T Polyamide (PA6T)	Square	Pick and Place	56	All	Solder	Female Socket	-55 C	105 ░C	2	0.181 in	4.6 mm	0.079 "	2 mm	Black	2 mm	0.079 in	Push-Pull	UL94 V-0	Surface Mount	3 A	Receptacle
Assmann WSW Components A-BL200-DG-G70D	Phosphor Bronze	Glass Filled Nylon 6T Polyamide (PA6T)	Square		70	All	Solder	Female Socket	-40 C	105 ░C	2	0.157 in	4 mm	0.079 "	2 mm	Black	2 mm	0.079 in	Push-Pull	UL94 V-0	Through Hole	3 A	Receptacle	Gold			0.11 in	2.79 mm	Flash
Assmann WSW Components A-BL200DG08-022-GSR1	Phosphor Bronze	Glass Filled Nylon 9T Polyamide (PA9T)	Square	Pick and Place	8	All	Solder	Female Socket	-55 C	105 ░C	2			0.079 "	2 mm	Black	2 mm	0.079 in	Push-Pull	UL94 V-0	Surface Mount	2 A	Receptacle	Gold					Flash			0.096 in	2.44 mm
Assmann WSW Components A-BL200-DG-Z08MR1	Phosphor Bronze	Glass Filled Nylon 6T Polyamide (PA6T)	Square	Pick and Place	8	All	Solder	Female Socket	-55 C	105 ░C	2	0.181 in	4.6 mm	0.079 "	2 mm	Black	2 mm	0.079 in	Push-Pull	UL94 V-0	Surface Mount	3 A	Receptacle
Assmann WSW Components A-BL200-DG-Z36MP1	Phosphor Bronze	Glass Filled Nylon 6T Polyamide (PA6T)	Square	Pick and Place	36	All	Solder	Female Socket	-55 C	105 ░C	2	0.181 in	4.6 mm	0.079 "	2 mm	Black	2 mm	0.079 in	Push-Pull	UL94 V-0	Surface Mount	3 A	Receptacle
Assmann WSW Components A-BL200-DG-G22D	Phosphor Bronze	Glass Filled Nylon 6T Polyamide (PA6T)	Square		22	All	Solder	Female Socket	-40 C	105 ░C	2	0.157 in	4 mm	0.079 "	2 mm	Black	2 mm	0.079 in	Push-Pull	UL94 V-0	Through Hole	3 A	Receptacle	Gold			0.11 in	2.79 mm	Flash
