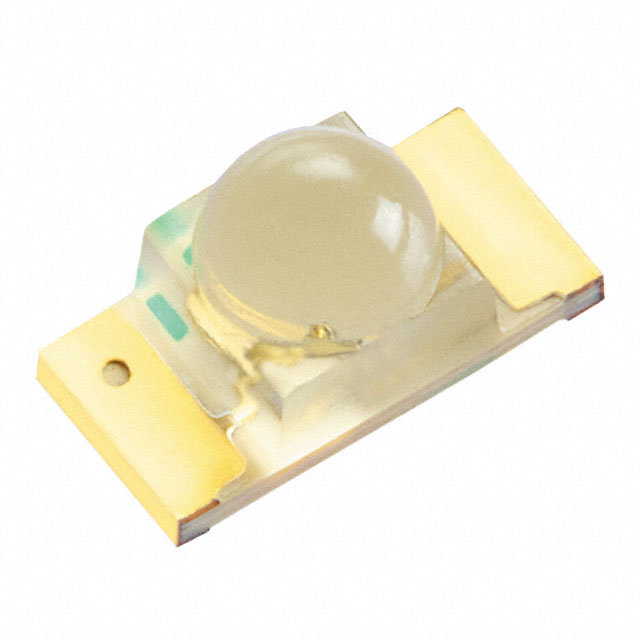

APTD3216 Series

Catalog

LED BLUE CLEAR 2SMD

Part	Lens Transparency	Mounting Type	Wavelength - Peak	Millicandela Rating	Lens Color	Viewing Angle	Configuration	Height (Max) [z]	Lens Style	Package / Case	Supplier Device Package	Lens Size [diameter]	Size / Dimension [y]	Size / Dimension [x]	Color	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Current - Test	Orientation	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Dark (Id) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Wavelength	Power - Max [Max]	Current - DC Forward (If) (Max)	Radiant Intensity (Ie) Min @ If [Min]	Type
Kingbright APTD3216PBC/A	Clear	Surface Mount	468 nm	400 mcd	Colorless	50 °	Standard	1.9 mm	Round with Domed Top	1206 (3216 Metric)	2-SMD	1.6 mm	1.6 mm	3.2 mm	Blue	470 nm	3.2 V	20 mA
Kingbright APTD3216LQBC/D	Clear	Surface Mount	460 nm	100 mcd	Colorless	30 °	Standard	1.9 mm	Round with Domed Top	1206 (3216 Metric)	2-SMD	1.6 mm	1.6 mm	3.2 mm	Blue	465 nm	2.65 V	2 mA
Kingbright APTD3216SRCPRV	Clear	Surface Mount	655 nm	150 mcd	Colorless	35 °	Standard	1.9 mm	Round with Domed Top	1206 (3216 Metric)	2-SMD	1.6 mm	1.6 mm	3.2 mm	Red	640 nm	1.85 V	20 mA

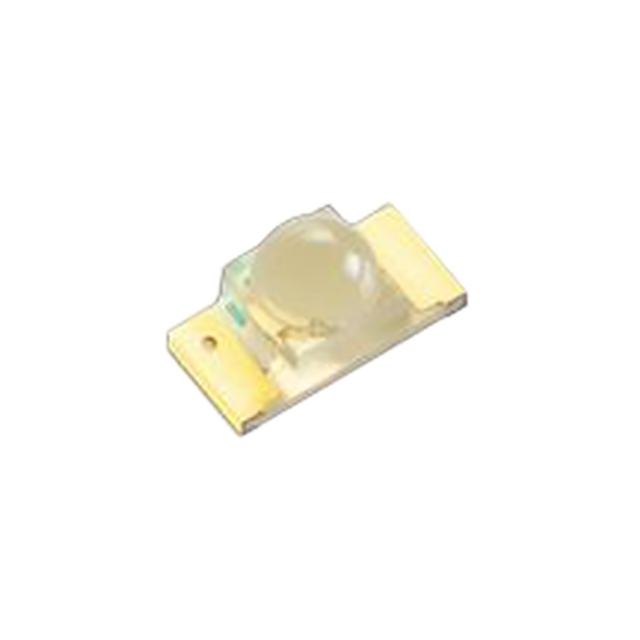

Kingbright APTD3216P3C-P22		Surface Mount				40 °				1206 (3216 Metric)									Top View	30 V	100 nA	85 °C	-40 C	940 nm	100 mW
Kingbright APTD3216F3C-P22		Surface Mount				40 °				1206 (3216 Metric)									Top View			85 °C	-40 C	940 nm		50 mA	2 mW/sr	Infrared (IR)
Kingbright APTD3216-PZ23
Kingbright APTD3216SECK	Clear	Surface Mount	610 nm	1000 mcd	Colorless	40 °	Standard	1.9 mm	Round with Domed Top	1206 (3216 Metric)	2-SMD	1.6 mm	1.6 mm	3.2 mm		601 nm	2.1 V	20 mA
Kingbright APTD3216LSYCK	Clear	Surface Mount	590 nm	40 mcd	Colorless	40 °	Standard	1.9 mm	Round with Domed Top	1206 (3216 Metric)	2-SMD	1.6 mm	1.6 mm	3.2 mm	Yellow	590 nm	1.85 V	2 mA

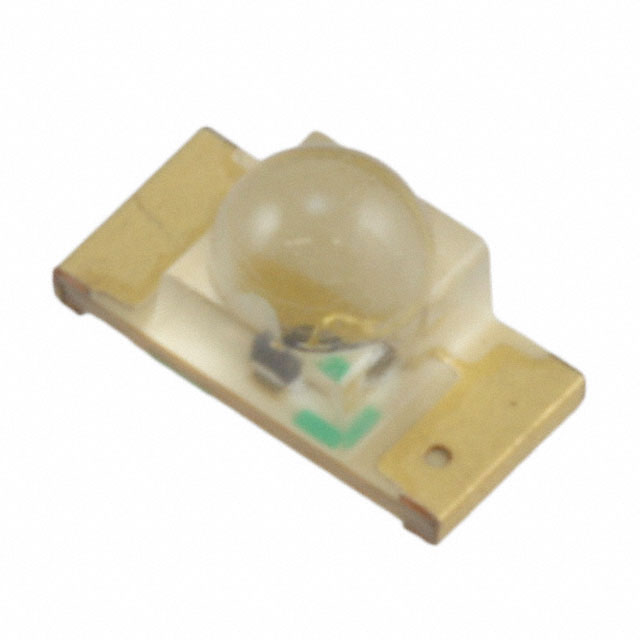

Kingbright APTD3216SF4C		Surface Mount				50 °				1206 (3216 Metric)							1.3 V		Top View			85 C	-40 ¯C	880 nm		50 mA	1.6 mW/sr	Infrared (IR)
Kingbright APTD3216SGC	Clear	Surface Mount	565 nm	50 mcd	Colorless	35 °	Standard	1.9 mm	Round with Domed Top	1206 (3216 Metric)	2-SMD	1.6 mm	1.6 mm	3.2 mm	Green	568 nm	2.2 V	20 mA
