AUTO TVS SMTO HI-POWER
Description
AI

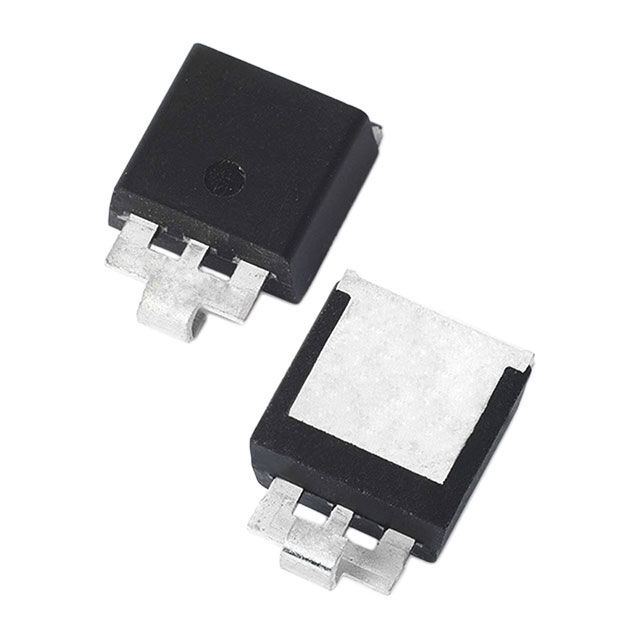

The SLD8S Series is SMTO-263 packaged with leaded modification and is designed to provide precision overvoltage protection for sensitive electronics
Beta
⌘K
AUTO TVS SMTO HI-POWER
AUTO TVS SMTO HI-POWER
| Part | Power Line Protection | Current - Peak Pulse (10/1000µs) | Voltage - Breakdown (Min) [Min] | Voltage - Reverse Standoff (Typ) | Voltage - Clamping (Max) @ Ipp [Max] | Mounting Type | Supplier Device Package | Grade | Qualification | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Power - Peak Pulse | Power - Peak Pulse | Unidirectional Channels [custom] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 352 A | 13.3 V | 12 V | 19.9 V | Surface Mount | SMTO-263 | Automotive | AEC-Q101 | 175 °C | -55 °C | Nonstandard SMD | 7000 W | 7 kW | 1 | Zener | |
LITTELFUSE | 167 A | 28.9 V | 26 V | 42.1 V | Surface Mount | SMTO-263 | Automotive | AEC-Q101 | 175 °C | -55 °C | Nonstandard SMD | 7000 W | 7 kW | 1 | Zener | |
LITTELFUSE | 132 A | 36.7 V | 33 V | 53.3 V | Surface Mount | SMTO-263 | Automotive | AEC-Q101 | 175 °C | -55 °C | Nonstandard SMD | 7000 W | 7 kW | 1 | Zener | |
LITTELFUSE | 108 A | 44.4 V | 40 V | 64.5 V | Surface Mount | SMTO-263 | Automotive | AEC-Q101 | 175 °C | -55 °C | Nonstandard SMD | 7000 W | 7 kW | 1 | Zener | |
 LITTELFUSE | 89.7 A | 53.3 V | 48 V | 77.4 V | Surface Mount | SMTO-263 | Automotive | AEC-Q101 | 175 °C | -55 °C | Nonstandard SMD | 7000 W | 7 kW | 1 | Zener | |
LITTELFUSE | 216 A | 22.2 V | 20 V | 32.4 V | Surface Mount | SMTO-263 | Automotive | AEC-Q101 | 175 °C | -55 °C | Nonstandard SMD | 7000 W | 7 kW | 1 | Zener | |
LITTELFUSE | 301 A | 15.6 V | 14 V | 23.2 V | Surface Mount | SMTO-263 | Automotive | AEC-Q101 | 175 °C | -55 °C | Nonstandard SMD | 7000 W | 7 kW | 1 | Zener | |
 LITTELFUSE | 240 A | 20 V | 18 V | 29.2 V | Surface Mount | SMTO-263 | Automotive | AEC-Q101 | 175 °C | -55 °C | Nonstandard SMD | 7000 W | 7 kW | 1 | Zener | |
 LITTELFUSE | 144 A | 33.3 V | 30 V | 48.4 V | Surface Mount | SMTO-263 | Automotive | AEC-Q101 | 175 °C | -55 °C | Nonstandard SMD | 7000 W | 7 kW | 1 | Zener | |
LITTELFUSE | 75.5 A | 63.8 V | 57 V | 92.7 V | Surface Mount | SMTO-263 | Automotive | AEC-Q101 | 175 °C | -55 °C | Nonstandard SMD | 7000 W | 7 kW | 1 | Zener |
