A60-114 Series
Manufacturer: EDAC Inc.
Beta
⌘K

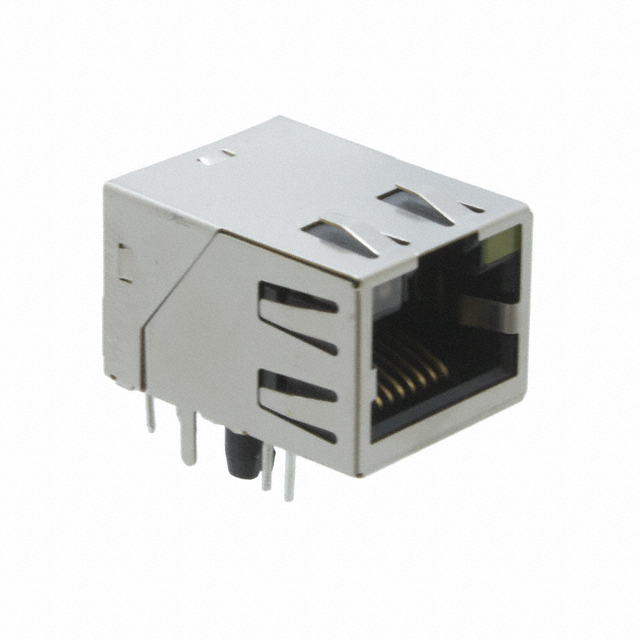

RJ45 CONNECTOR ROHS COMPLIANT: YES
| Part | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Orientation | Number of Cores per Jack | Mounting Type | Applications | Number of Ports | Features | LED Color | Termination | Connector Type | Height Above Board [z] | Height Above Board [z] | Contact Finish | Tab Direction | Shielding | Number of Rows | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 30 Áin | 0.76 Ám | Glass Filled Polybutylene Terephthalate (PBT) Polyester | 90 ° | 8 | Through Hole | 10/100/1000 Base-T AutoMDIX | 1 | Board Guide | Green - Yellow | Solder | RJ45 | 0.535 in | 13.59 mm | Gold | Down | EMI Finger Shielded | 1 | ||||
 EDAC Inc. | 30 Áin | 0.76 Ám | Polyamide (PA) Nylon | 90 ° | 8 | Through Hole | 10/100/1000 Base-T AutoMDIX | 1 | Board Lock | Green Orange Yellow | Solder | RJ45 | 0.53 in | 13.45 mm | Gold | Up | EMI Finger Shielded | 1 | Copper Alloy | 70 °C | 0 °C | Phosphor Bronze |
EDAC Inc. | 30 Áin | 0.76 Ám | Nylon Polyamide (PA) Polyester Glass Filled | 90 ° | 8 | Through Hole | 10/100/1000 Base-T AutoMDIX | 1 | Board Lock | Green - Yellow | Solder | RJ45 | 0.532 in | 13.51 mm | Gold | Up | EMI Finger Shielded | 1 | Copper Alloy | 70 °C | 0 °C | Phosphor Bronze |
