BT900 Series

Catalog

RF TXRX MOD BT WIFI CHIP SMD

Part	Memory Size	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Data Rate	Antenna Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Power - Output	Frequency [Min]	Frequency [Max]	RF Family/Standard	Serial Interfaces	Sensitivity	Protocol	Utilized IC / Part	Current - Receiving	Current - Transmitting	Frequency	Applications	Interface	Modulation or Protocol	Data Rate (Max)
Ezurio LLC BT900-SA-03-T/R	6 kB	3.6 V	1.75 V	Surface Mount	4 MBaud	Chip Integrated	85 °C	-40 C	44-SMD Module	8 dBm	2.402 GHz	2.48 GHz	Bluetooth WiFi	ADC GPIO I2C PWM SIO SPI UART	-90 dBm	Bluetooth v4.0
Ezurio LLC BT900-SA-03-T/R	6 kB	3.6 V	1.75 V	Surface Mount	4 MBaud	Chip Integrated	85 °C	-40 C	44-SMD Module	8 dBm	2.402 GHz	2.48 GHz	Bluetooth WiFi	ADC GPIO I2C PWM SIO SPI UART	-90 dBm	Bluetooth v4.0

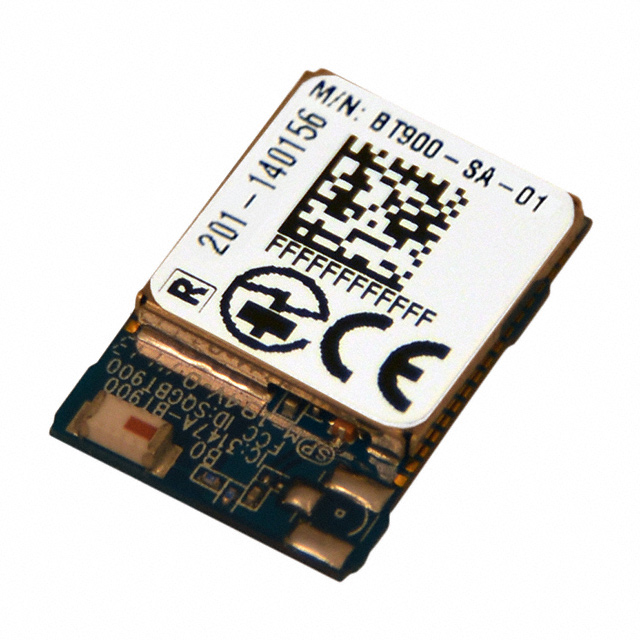

Ezurio LLC BT900-SA		3.6 V	1.8 V	Surface Mount	3 Mbps	Chip Integrated	85 °C	-40 C	Module	8 dBm			Bluetooth	I2C SPI UART	-90 dBm	Bluetooth v4.0 Dual Mode	CSR8811	85 mA	85 mA	2.4 GHz
Ezurio LLC BT900-SA		3.6 V	1.8 V	Surface Mount	3 Mbps	Chip Integrated	85 °C	-40 C	Module	8 dBm			Bluetooth	I2C SPI UART	-90 dBm	Bluetooth v4.0 Dual Mode	CSR8811	85 mA	85 mA	2.4 GHz

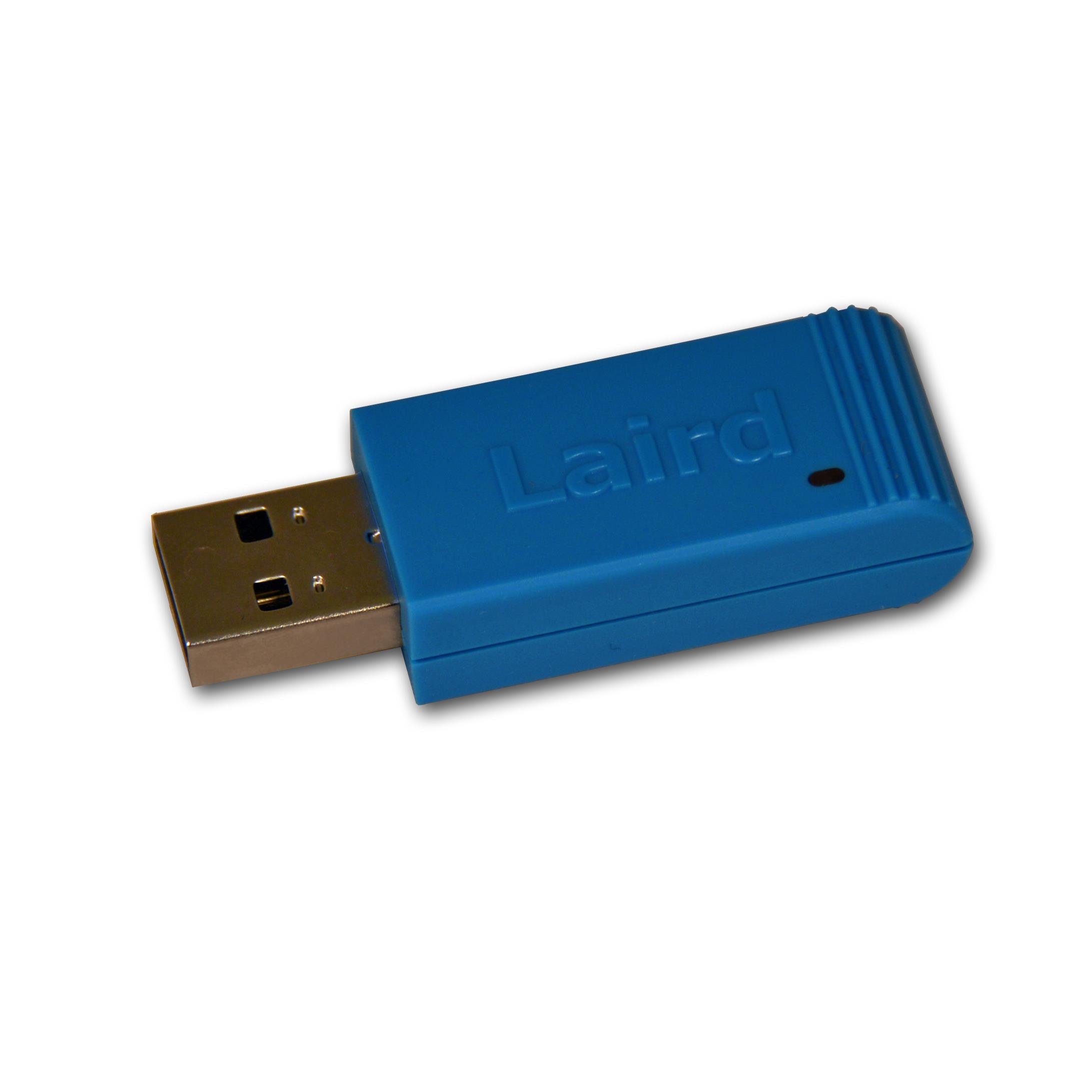

Ezurio LLC BT900-US										8 dBm	2.4 GHz	2.48 GHz			-90 dBm						General Purpose	USB	Bluetooth v4.0 Low Energy (BLE)	3 Mbps

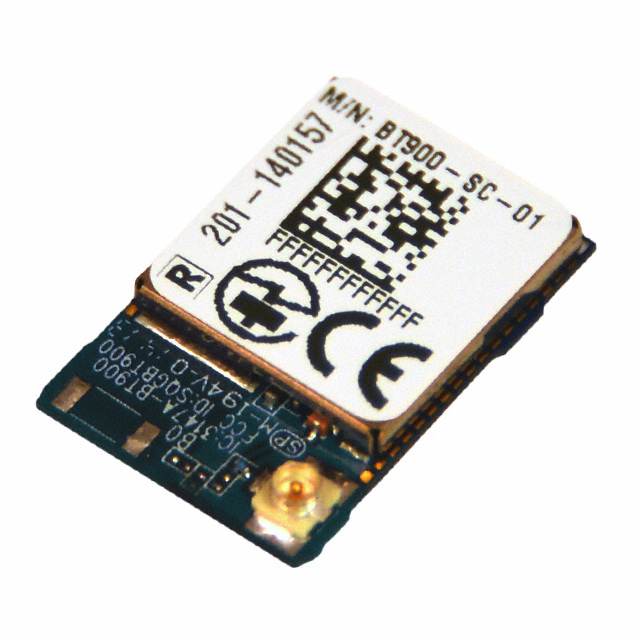

Ezurio LLC BT900-SC		3.6 V	1.8 V	Surface Mount	3 Mbps	Antenna Not Included U.FL	85 °C	-40 C	Module	8 dBm			Bluetooth	I2C SPI UART	-90 dBm	Bluetooth v4.0 Dual Mode	CSR8811	85 mA	85 mA	2.4 GHz
Ezurio LLC BT900-US										8 dBm	2.4 GHz	2.48 GHz			-90 dBm						General Purpose	USB	Bluetooth v4.0 Low Energy (BLE)	3 Mbps
Ezurio LLC BT900-SC		3.6 V	1.8 V	Surface Mount	3 Mbps	Antenna Not Included U.FL	85 °C	-40 C	Module	8 dBm			Bluetooth	I2C SPI UART	-90 dBm	Bluetooth v4.0 Dual Mode	CSR8811	85 mA	85 mA	2.4 GHz
