FDA2-17251 Series

Manufacturer: Qualtek

Catalog

AC FANS FAN 172X51MM IP56M BALL 115VAC TERM

Part	Current Rating (Amps)	Air Flow	Air Flow	Material - Frame	Lifetime @ Temp.	Material - Blade	Ingress Protection	Power (Watts)	Width [x]	Weight	Weight	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	Noise	RPM	Voltage - Rated	Approval Agency	Fan Type	Termination	Static Pressure	Static Pressure
Qualtek FDA2-17251NBHT4D	0.21 A	7 mł/min	250 CFM	Aluminum	50000 Hrs	Steel	IP56M	25 W	51 mm	907.2 g	2 lbs	Rectangular/Rounded	151 mm	172 mm	2	-20 ░C	70 °C	Ball	59 dB(A)	3100 RPM	115 VAC	CE cURus TUV	Tubeaxial

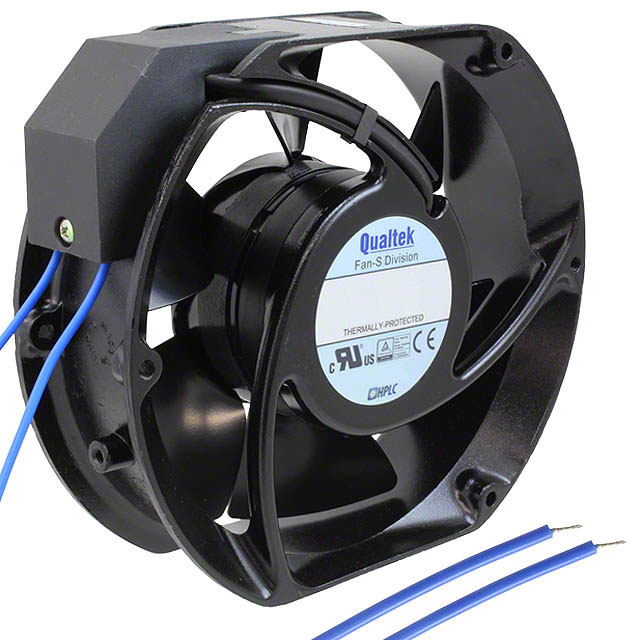

Qualtek FDA2-17251QBHW4F	120 mA	7 mł/min	250 CFM	Aluminum	50000 Hrs	Steel		27 W	51 mm	907.2 g	2 lbs	Rectangular/Rounded	151 mm	172 mm		-20 ░C	70 °C	Ball	59 dB(A)	3100 RPM	230 VAC	CE cURus TUV	Tubeaxial	2 Wire Leads

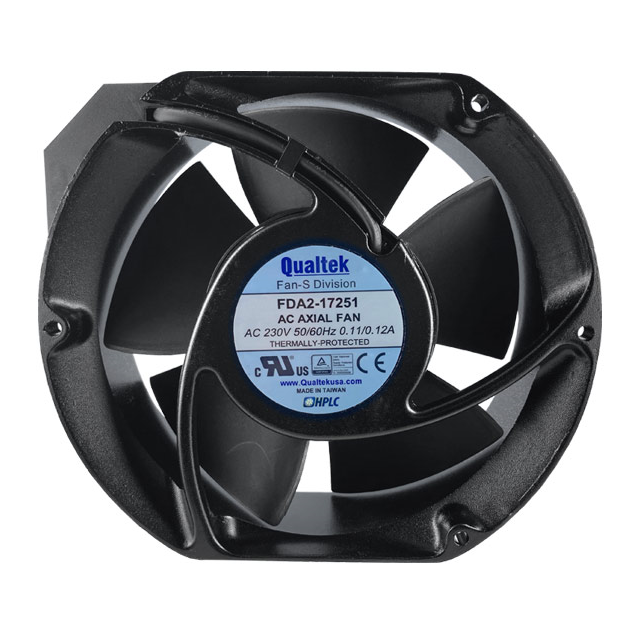

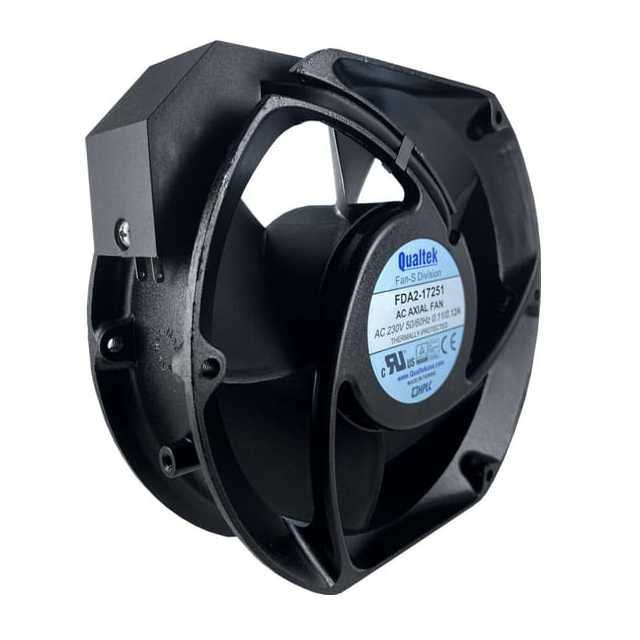

Qualtek FDA2-17251NBKT3F	0.24 A	7.7 m³/min	275 CFM	Aluminum	50000 Hrs	Plastic		27 W	51 mm	861.8 g	1.9 lbs	Rectangular/Rounded	151 mm	172 mm	2	-20 ░C	70 °C	Ball	60 dB(A)	3300 RPM	115 VAC	CE cURus TUV	Tubeaxial		0.768 in H2O	191.3 Pa

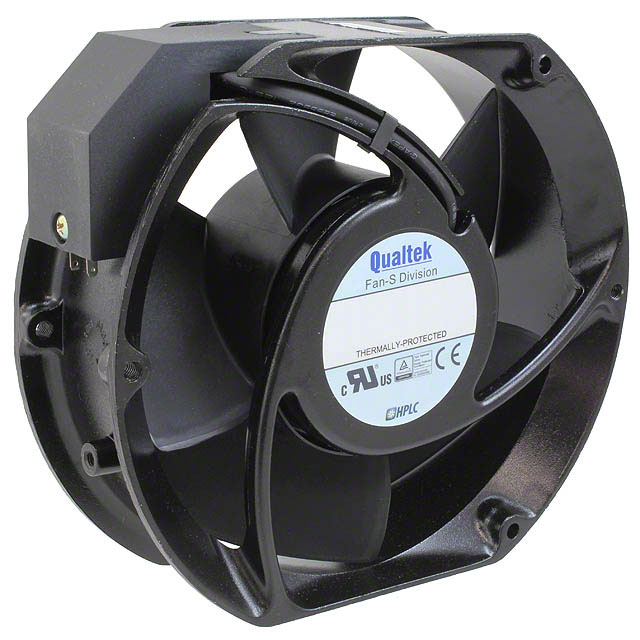

Qualtek FDA2-17251NBHT4F	0.21 A	7 mł/min	250 CFM	Aluminum	50000 Hrs	Steel		25 W	51 mm	907.2 g	2 lbs	Rectangular/Rounded	151 mm	172 mm	2	-20 ░C	70 °C	Ball	59 dB(A)	3100 RPM	115 VAC	CE cURus TUV	Tubeaxial

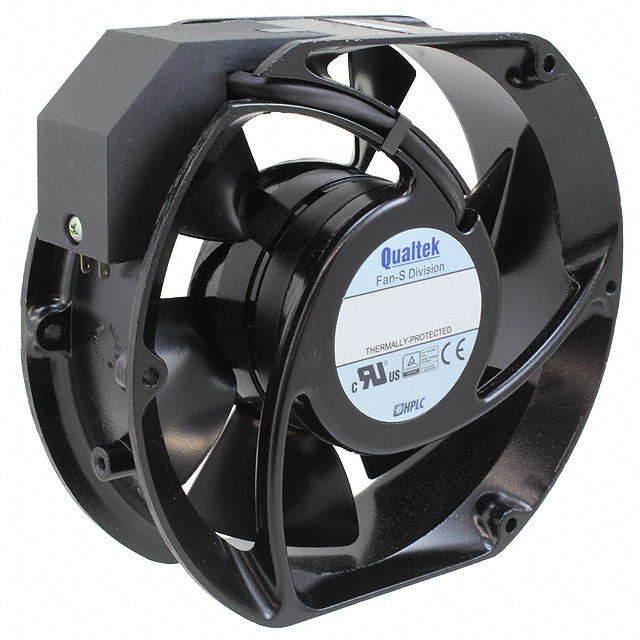

Qualtek FDA2-17251QBHT4F	120 mA	7 mł/min	250 CFM	Aluminum	50000 Hrs	Steel		27 W	51 mm	907.2 g	2 lbs	Rectangular/Rounded	151 mm	172 mm	2	-20 ░C	70 °C	Ball	59 dB(A)	3100 RPM	230 VAC	CE cURus TUV	Tubeaxial
Qualtek FDA2-17251NBKT3F-L	0.21 A	7.7 m³/min	275 CFM	Aluminum	100000 Hrs	Plastic	IP54 - Dust Protected Water Resistant	27 W	51 mm	861.8 g	1.9 lbs	Rectangular/Rounded	151 mm	172 mm	2	-20 ░C	70 °C	Ball	60 dB(A)	3300 RPM	115 VAC	CE cURus TUV	Tubeaxial		0.768 in H2O	191.3 Pa
Qualtek FDA2-17251NBHT4D-L	0.21 A	7 mł/min	250 CFM	Aluminum	100000 Hrs	Steel	IP56M	25 W	51 mm	907.2 g	2 lbs	Rectangular/Rounded	151 mm	172 mm	2	-20 ░C	70 °C	Ball	59 dB(A)	3100 RPM	115 VAC	CE cURus TUV	Tubeaxial
