9GT Type Series

Catalog

DC FANS AXIAL FAN, 120X120X38MM, 24VDC, 212CFM, WIDE TEMP RANGE, RIBLESS, SENSORLESS

Part	Static Pressure	Static Pressure	RPM	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Power (Watts)	Width [y]	Weight [custom]	Weight [custom]	Voltage - Rated	Bearing Type	Noise	Air Flow	Air Flow	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Material - Frame	Material - Blade	Features	Size / Dimension [y]	Current Rating (Amps)	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Weight	Weight	Width [x]
Sanyo Denki America Inc. 9GT1224S1002	1.08 in H2O	269 Pa	5600 RPM	Tubeaxial	-40 C	85 °C	2 Wire Leads	26.4 W	38 mm	420.03 g	0.926 lb	24 VDC	Ball	58 dB(A)	211.8 CFM	5.93 m³/min	CSA TUV UL	120 mm	120 mm
Sanyo Denki America Inc. 9GT0924M1D001				Tubeaxial			3 Wire Leads		38 mm			24 VDC	Ball				cURus TUV		92 mm	Aluminum	Plastic	Locked Rotor Sensor	92 mm

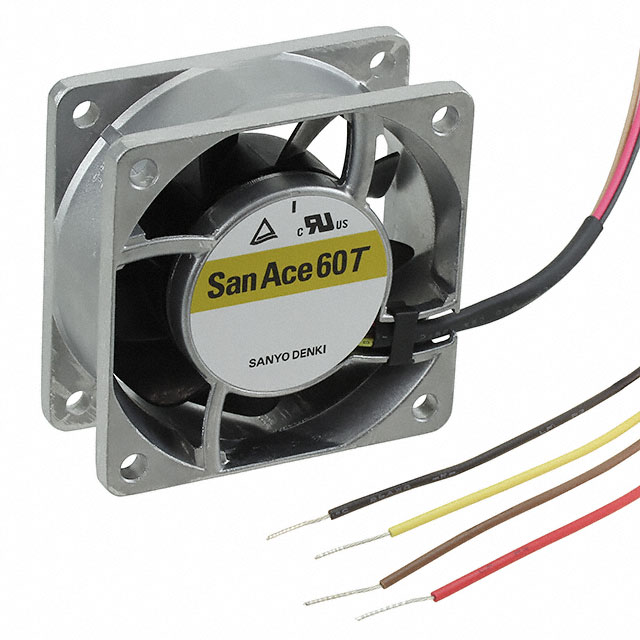

Sanyo Denki America Inc. 9GT0612P4G001	0.976 in H2O	243 Pa	10000 RPM	Tubeaxial	-40 C	85 °C	4 Wire Leads	6.72 W	25 mm			12 VDC	Ball	52 dB	44.5 CFM	1.25 mł/min	CSA TUV UL	60 mm	60 mm	Aluminum	Plastic	PWM Control Speed Sensor (Tach)		0.56 A	40000 Hrs	10.2 VDC	13.8 VDC	99.79 g	0.22 lb
Sanyo Denki America Inc. 9GT0412J3002	0.827 in H2O	206 Pa	11700 RPM	Tubeaxial	-40 C	85 °C	2 Wire Leads	3.72 W		55.34 g	0.122 lb	12 VDC	Ball	48 dB	18.4 CFM	0.515 mł/min	CSA TUV UL	40 mm	40 mm	Aluminum	Plastic			0.31 A	40000 Hrs	10.2 VDC	13.8 VDC			28 mm
Sanyo Denki America Inc. 9GT0924M1002	1.26 in H2O	313.9 Pa	8100 RPM	Tubeaxial	-40 C	85 °C	2 Wire Leads	18 W	38 mm			24 VDC	Ball	58 dB(A)	116.6 CFM	3.26 m³/min	CSA TUV UL		92 mm				92 mm					150.14 g	0.331 lb
Sanyo Denki America Inc. 9GT0624G4002	0.97 in H2O	241.6 Pa	10000 RPM	Tubeaxial	-40 C	85 °C	2 Wire Leads	6.72 W	25 mm	100.7 g	0.222 lb	24 VDC	Ball	52 dB	44.5 CFM	1.25 mł/min	CSA TUV UL	60 mm	60 mm	Aluminum	Plastic			0.28 A	40000 Hrs
Sanyo Denki America Inc. 9GT0912M1D001	1.26 in H2O	313.9 Pa	8100 RPM	Tubeaxial	-40 C	85 °C	3 Wire Leads	18 W	38 mm			12 VDC	Ball	58 dB(A)	116.6 CFM	3.26 m³/min	CSA TUV UL		92 mm			Locked Rotor Sensor	92 mm					150.14 g	0.331 lb
Sanyo Denki America Inc. 9GT0912J4001	0.42 in H2O	104.6 Pa	5000 RPM	Tubeaxial	-40 C	85 °C	3 Wire Leads	5.04 W	25 mm			12 VDC	Ball	44 dB(A)	77.7 CFM	2.18 mł/min	CSA TUV UL		92 mm			Locked Rotor Protection Speed Sensor (Tach)	92 mm					150.14 g	0.331 lb
