HIR323 Series
Manufacturer: Everlight Electronics Co Ltd
Beta
⌘K

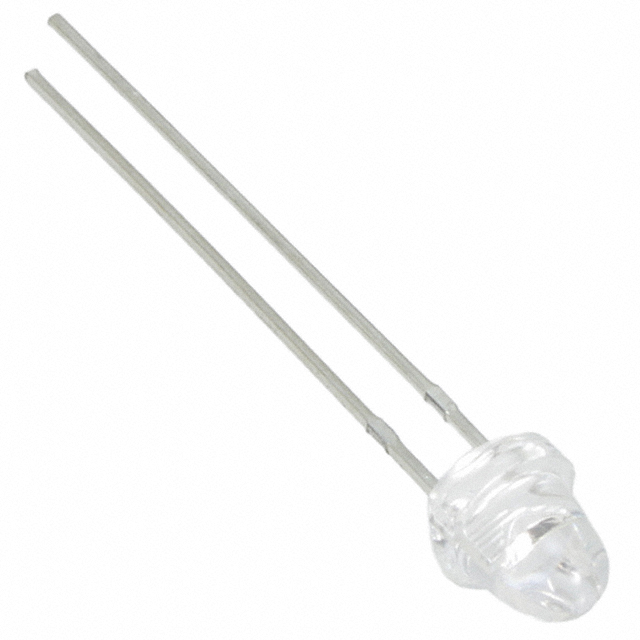

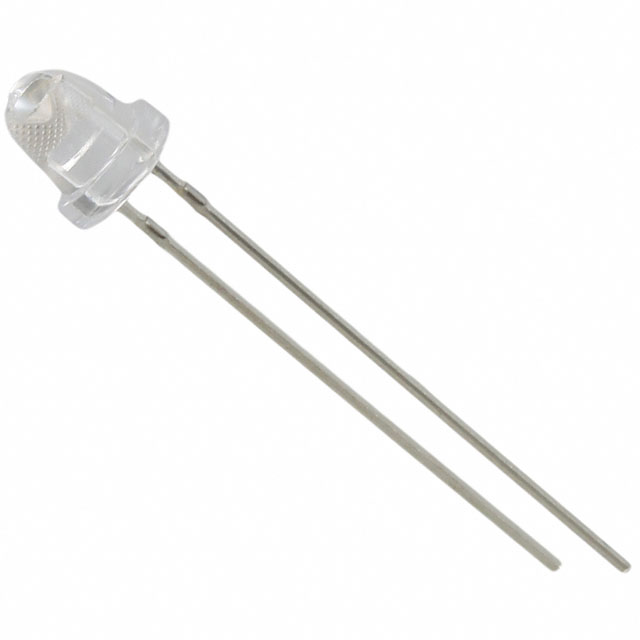

EMITTER IR 850NM 100MA RADIAL
| Part | Package / Case | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) [Max] | Orientation | Mounting Type | Wavelength | Radiant Intensity (Ie) Min @ If [Min] | Type | Operating Temperature [Max] | Operating Temperature [Min] | Viewing Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Everlight Electronics Co Ltd | Radial | 1.45 V | 100 mA | Top View | Through Hole | 850 nm | 7.8 mW/sr | Infrared (IR) | 85 C | -40 ¯C | 30 ° |
 Everlight Electronics Co Ltd | Radial | 1.45 V | 100 mA | Top View | Through Hole | 850 nm | 15 mW/sr | Infrared (IR) | 85 C | -40 ¯C | 25 ° |
