G800LQ3 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

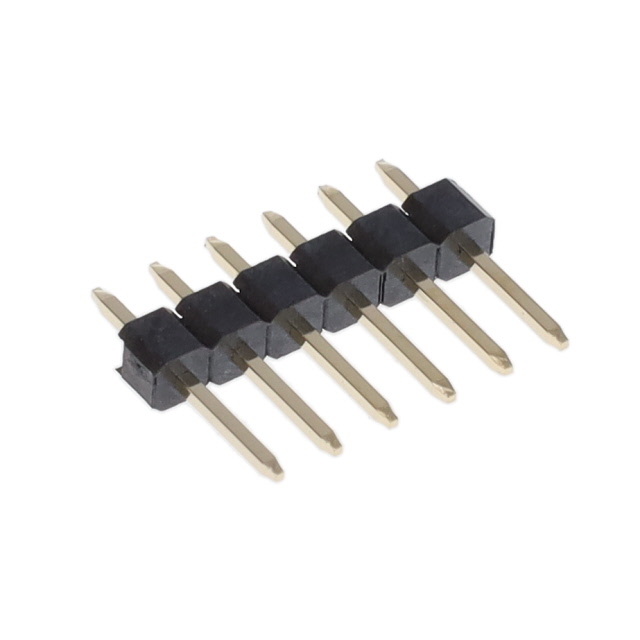

PIN HEADER 2.54MM PITCH STR DIP,
| Part | Contact Finish Thickness - Post | Insulation Material | Connector Type | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Length - Mating | Contact Length - Mating | Insulation Color | Number of Rows | Contact Shape | Overall Contact Length | Overall Contact Length | Termination | Mounting Type | Number of Positions | Insulation Height | Insulation Height | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Contact Finish - Mating | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Contact Type | Contact Length - Post | Contact Length - Post | Contact Material | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Flash | Liquid Crystal Polymer (LCP) | Header | All | Flash | 6 mm | 0.236 in | Black | 1 | Square | 0.453 in | 11.5 mm | Solder | Through Hole | 6 | 0.098 " | 2.5 mm | Push-Pull | 105 ░C | -25 °C | 3 A | Gold | UL94 V-0 | 0.1 " | 2.54 mm | Gold | Male Pin | 0.118 in | 3 mm | Copper Alloy | Unshrouded |
