24_MCX-75 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

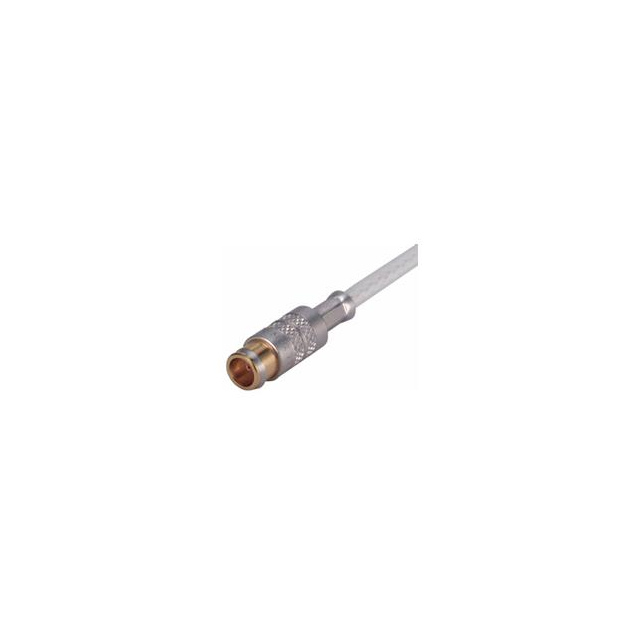

24_MCX-75-2-1/113_NE
| Part | Body Finish | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Center Contact Plating | Body Material | Voltage Rating | Number of Ports | Impedance | Mounting Feature | Cable Group | Housing Color | Mounting Type | Connector Style | Fastening Type | Connector Type | Frequency - Max [Max] | Shield Termination | Center Contact Material | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | White Bronze | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 155 C | -55 C | 500 | Gold | Brass | 170 V | 1 | 75 Ohms | Bulkhead | 187 RG-179 | Silver | Panel Mount | MCX | Snap-On | Female Socket Jack | 6000 MHz | Crimp | Beryllium Copper | Crimp |
