1744079 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

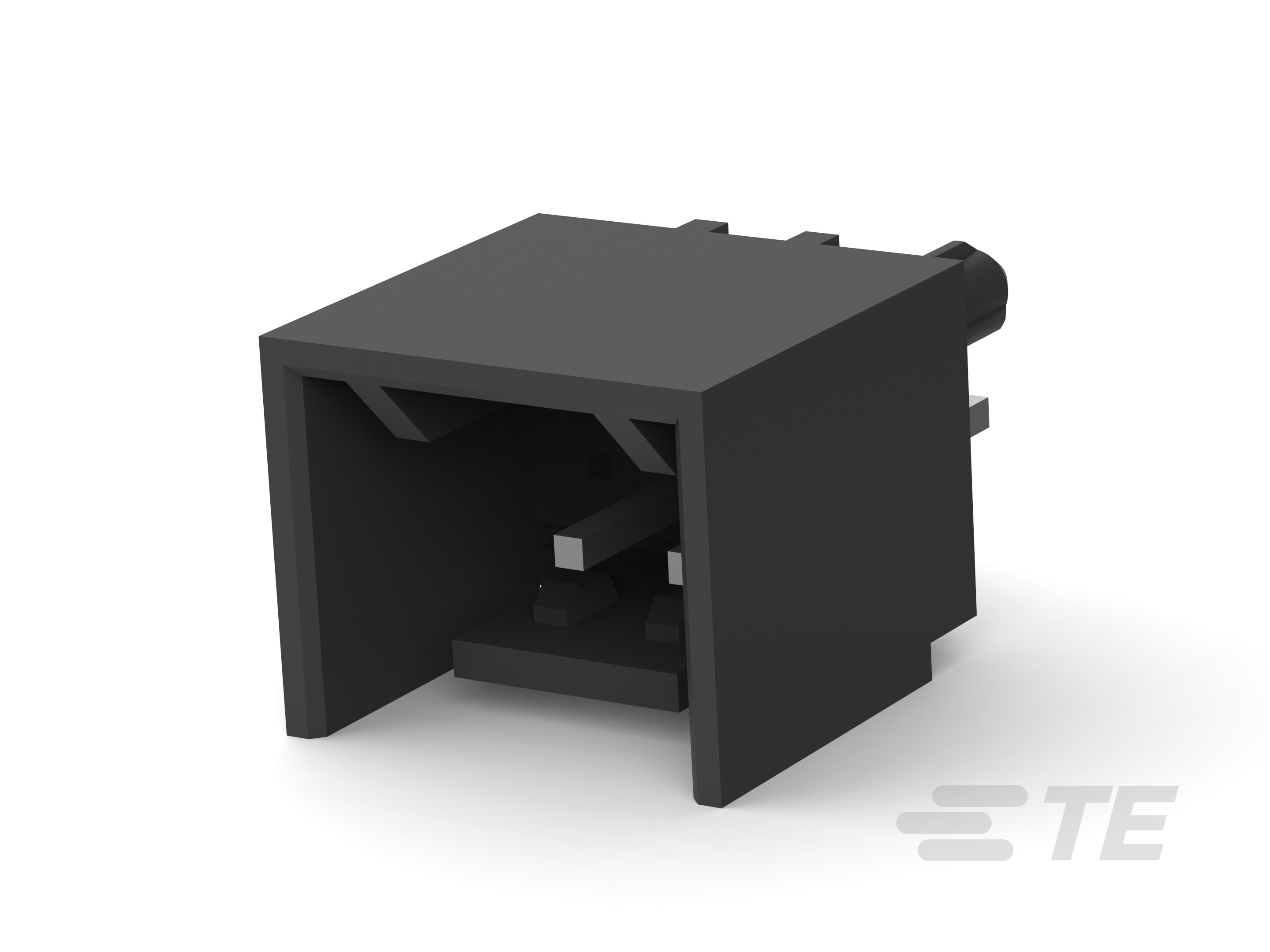

03P MTA100 SHRD HDR ASSY W/O#1
| Part | Connector Type | Contact Length - Mating [x] | Contact Length - Mating [x] | Contact Finish - Post | Contact Material | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Style | Shrouding | Number of Rows | Applications | Fastening Type | Insulation Material | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Insulation Color | Features | Voltage Rating | Mounting Type | Termination | Number of Positions Loaded | Contact Length - Post [x] | Contact Length - Post [x] | Overall Contact Length | Overall Contact Length | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Header | 5.08 mm | 0.2 in | Tin | Copper Alloy | 0.1 in | 2.54 mm | UL94 V-0 | Board to Cable/Wire | Shrouded - 4 Wall | 1 | General Purpose | Friction Lock | Polyester | Varies by Wire Gauge | 105 ░C | -55 °C | Male Pin | Black | Board Guide | 250 VAC | Through Hole | Solder | 2 | 3.56 mm | 0.14 in | 0.44 in | 11.18 mm | Square |
