84534 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN FFC VERT 33POS 1.25MM PCB

Part	Housing Color	Cable End Type	Termination	Voltage Rating	Contact Material	Pitch	Pitch	Contact Finish	Flat Flex Type	FFC, FCB Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Positions [custom]	Height Above Board	Height Above Board	Housing Material	Connector/Contact Type	Number of Positions
TE Connectivity AMP Connectors 3-84534-3	White	Tapered	Kinked Pin	50 V	Phosphor Bronze	0.049 in	1.25 mm	Tin	FFC	0.3 mm	85 °C	-40 C	Through Hole	33	7.8 mm	0.307 in	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Vertical - 1 Sided

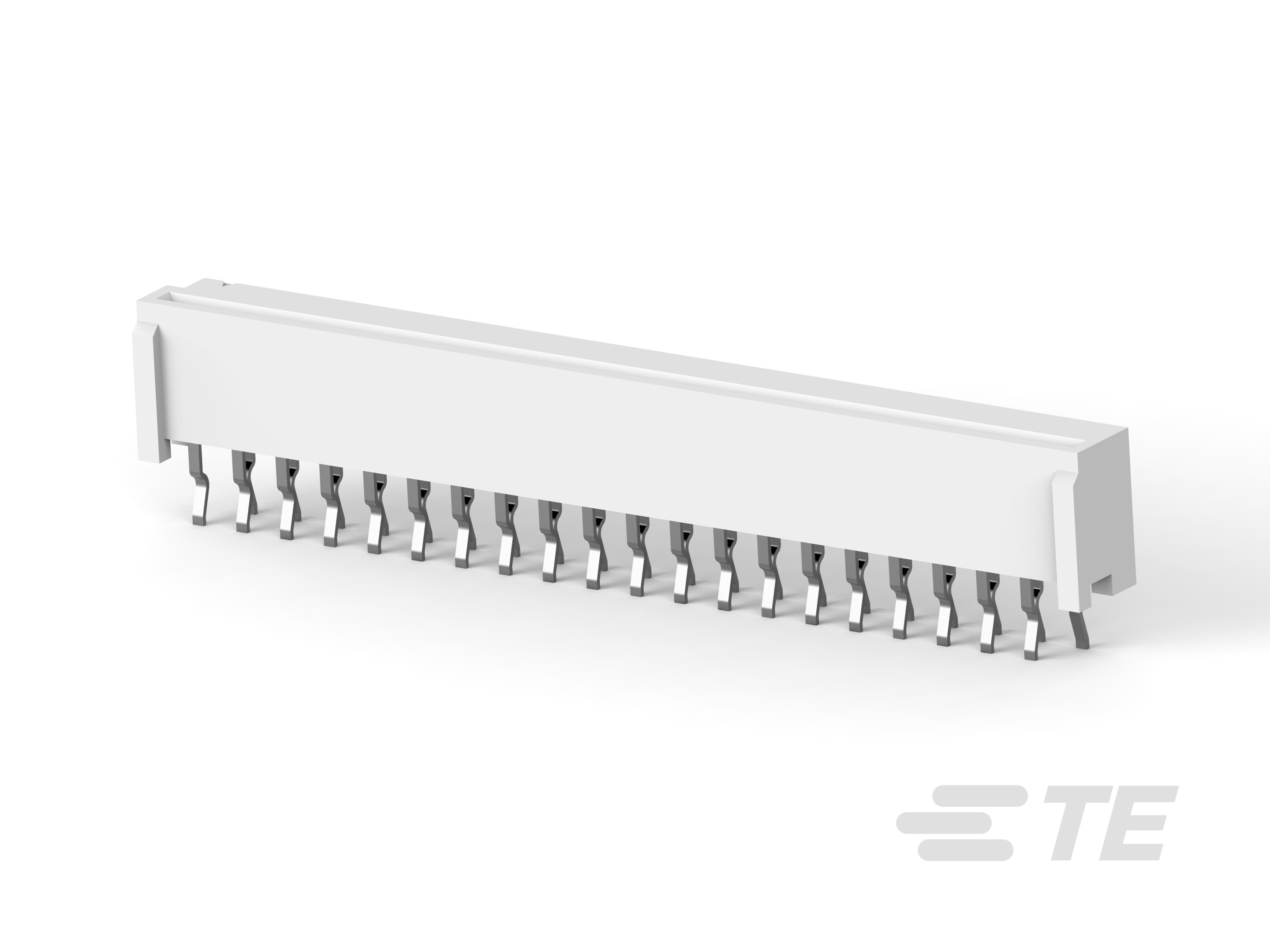

TE Connectivity AMP Connectors 4-84534-0	White	Tapered	Kinked Pin	50 V	Phosphor Bronze	0.049 in	1.25 mm	Tin	FFC	0.3 mm	85 °C	-40 C	Through Hole		7.8 mm	0.307 in	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Vertical - 1 Sided	40
TE Connectivity AMP Connectors 2-84534-5	White	Tapered	Kinked Pin	50 V	Phosphor Bronze	0.049 in	1.25 mm	Tin	FFC	0.3 mm	85 °C	-40 C	Through Hole		7.8 mm	0.307 in	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Vertical - 1 Sided	25
TE Connectivity AMP Connectors 84534-7	White	Tapered	Kinked Pin	50 V	Phosphor Bronze	0.049 in	1.25 mm	Tin	FFC	0.3 mm	85 °C	-40 C	Through Hole		7.8 mm	0.307 in	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Vertical - 1 Sided	7
TE Connectivity AMP Connectors 84534-6	White	Tapered	Kinked Pin	50 V	Phosphor Bronze	0.049 in	1.25 mm	Tin	FFC	0.3 mm	85 °C	-40 C	Through Hole		7.8 mm	0.307 in	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Vertical - 1 Sided	6
TE Connectivity AMP Connectors 5-84534-7	White	Tapered	Kinked Pin	50 V	Phosphor Bronze	0.049 in	1.25 mm	Tin	FFC	0.3 mm	85 °C	-40 C	Through Hole		7.8 mm	0.307 in	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Vertical - 1 Sided	7

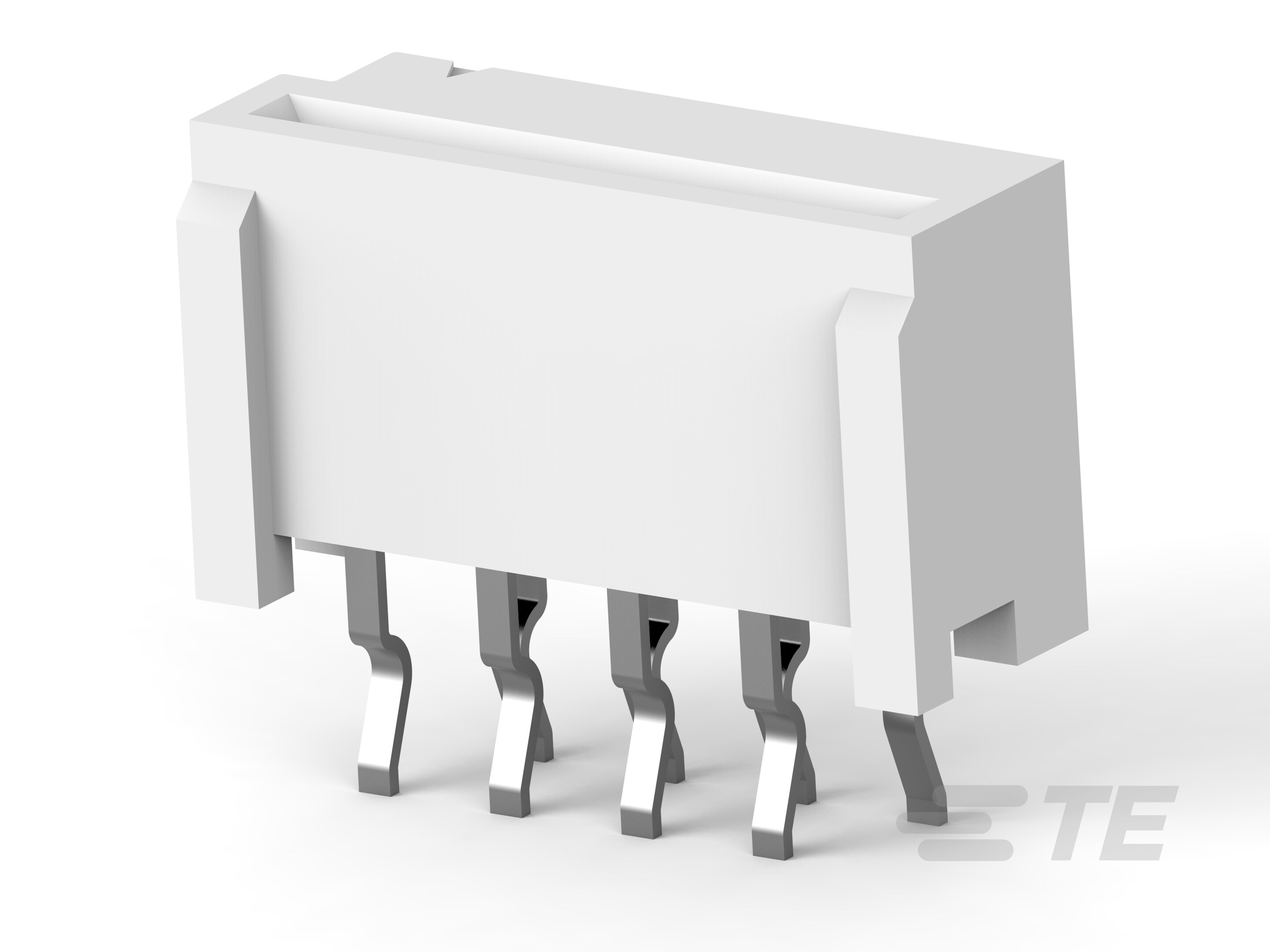

TE Connectivity AMP Connectors 84534-8	White	Tapered	Kinked Pin	50 V	Phosphor Bronze	0.049 in	1.25 mm	Tin	FFC	0.3 mm	85 °C	-40 C	Through Hole		7.8 mm	0.307 in	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Vertical - 1 Sided	8
