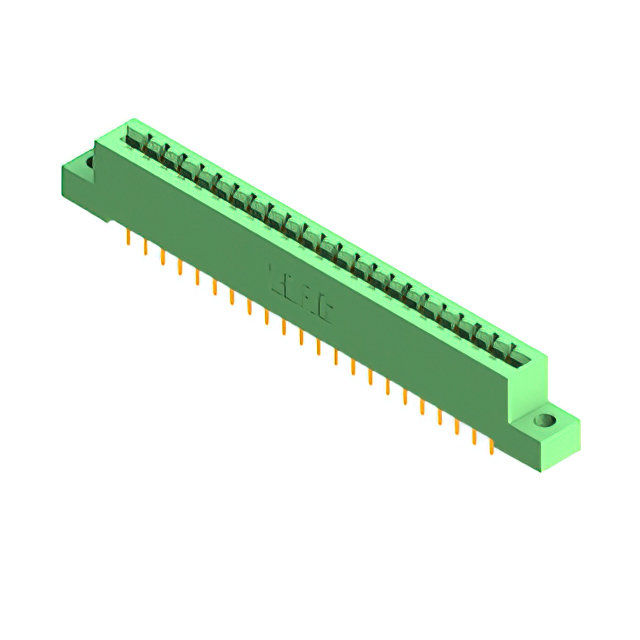

837-044 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 44POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Pitch | Pitch | Color | Number of Positions/Bay/Row | Gender | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Termination | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Contact Finish | Contact Material | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Read Out |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

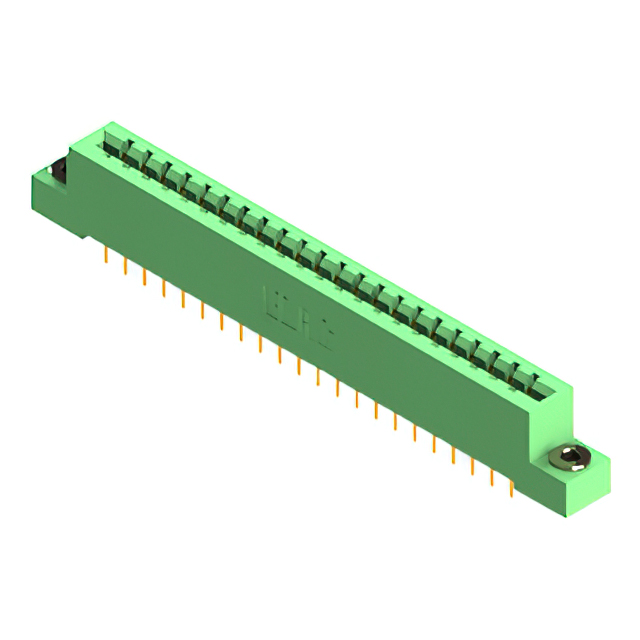

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 C | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Green | 22 | Female | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 44 | Gold | Copper Alloy | Right Angle Through Hole | 0.25 Ám | 10 Áin | 2 | Dual |

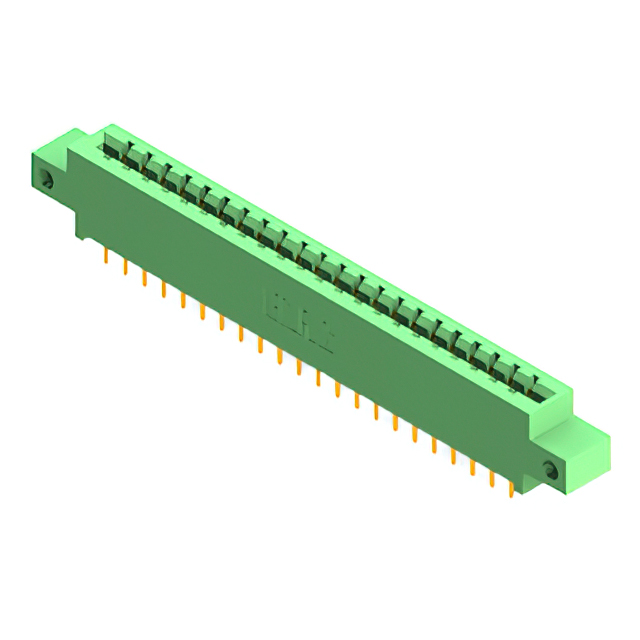

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 C | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Green | 22 | Female | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 44 | Gold | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | 2 | Dual |

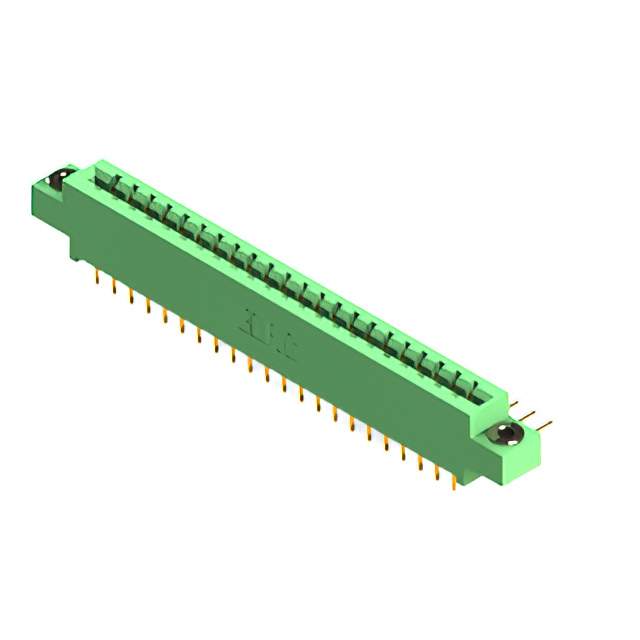

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 C | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Green | 22 | Female | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 44 | Gold | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | 2 | Dual |

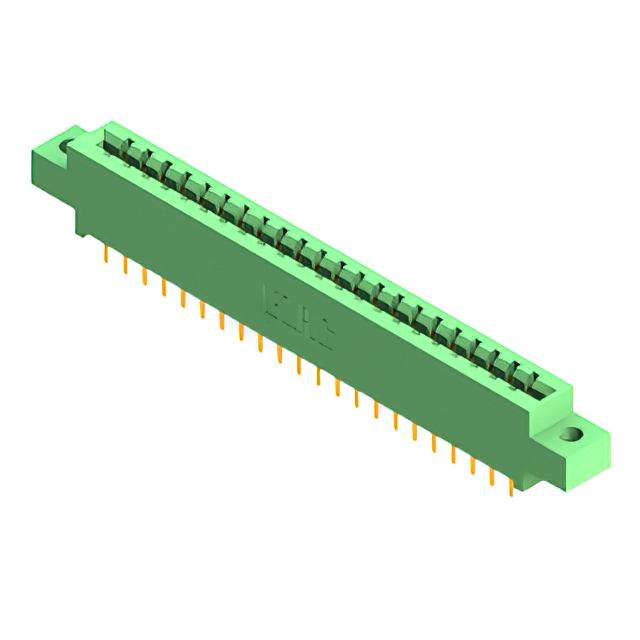

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 C | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Green | 22 | Female | 0.128 " | 3.25 mm | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 44 | Gold | Copper Alloy | Right Angle Through Hole | 0.25 Ám | 10 Áin | 2 | Dual | |

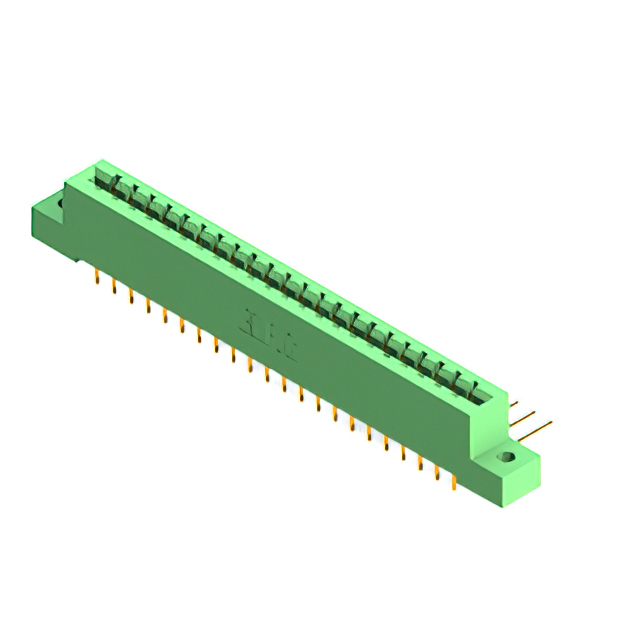

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 C | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Green | 22 | Female | 0.156 " | 3.96 mm | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 44 | Gold | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | 2 | Dual | |

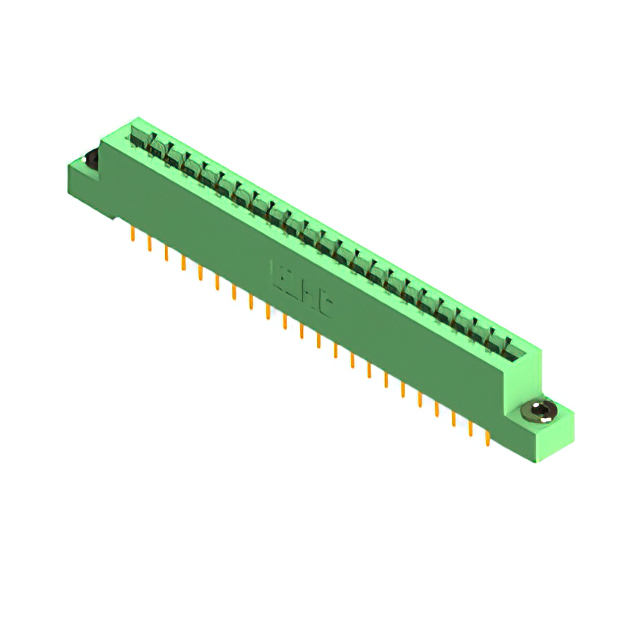

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 C | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Green | 22 | Female | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 44 | Gold | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | 2 | Dual |

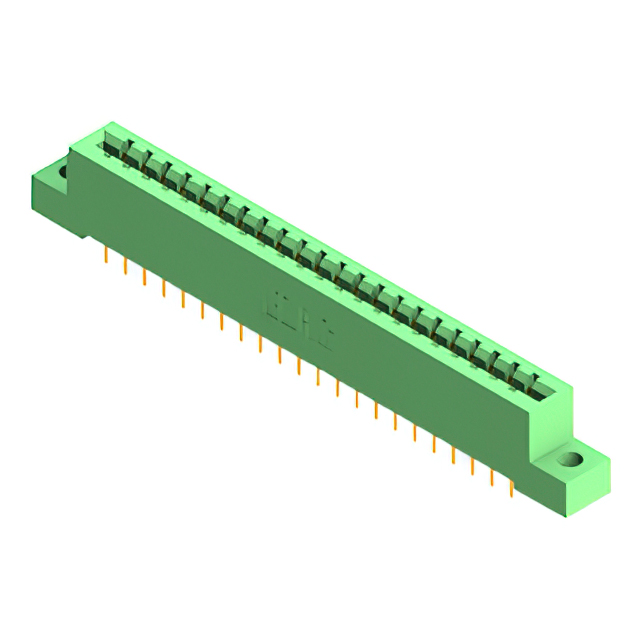

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 C | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Green | 22 | Female | 0.128 " | 3.25 mm | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 44 | Gold | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | 2 | Dual | |

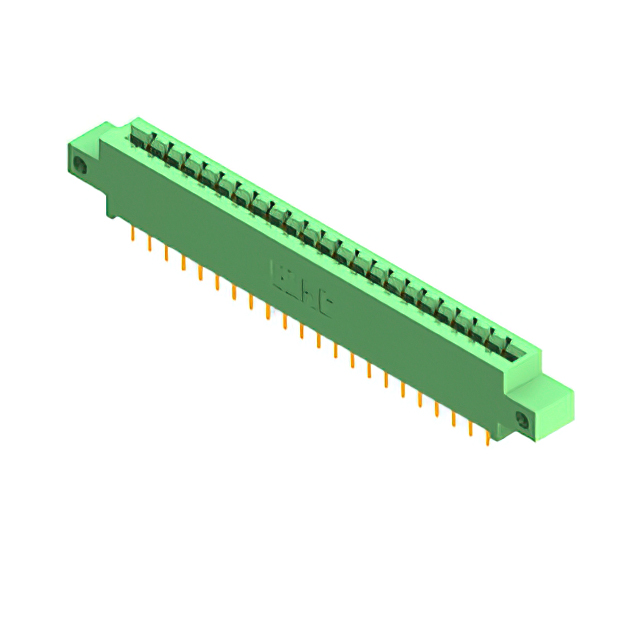

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 C | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Green | 22 | Female | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 44 | Gold | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | 2 | Dual |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 C | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Green | 22 | Female | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 44 | Gold | Copper Alloy | Right Angle Through Hole | 0.25 Ám | 10 Áin | 2 | Dual |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 C | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Green | 22 | Female | 0.156 " | 3.96 mm | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 44 | Gold | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | 2 | Dual |
