HRS-2B Series

Manufacturer: Adam Tech

Catalog

RECEPTACLE STRIP, 1.27MM, VERTIC

Part	Applications	Contact Material	Insulation Material	Contact Shape	Contact Finish Thickness - Post	Number of Rows [custom]	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Voltage Rating	Number of Positions	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Fastening Type	Contact Finish - Mating	Insulation Color	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Termination	Connector Type	Mounting Type	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]

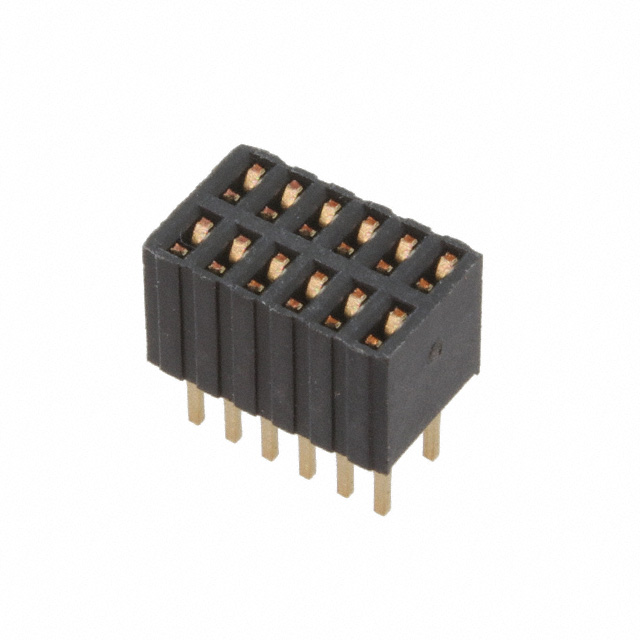

Adam Tech HRS-2B-12-GA	General Purpose	Phosphor Bronze	Thermoplastic	Rectangular	Flash	2	All	1.27 mm	0.05 in	Gold	250 VAC	12	UL94 V-0	0.118 in	3 mm	Push-Pull	Gold	Black	Forked	-40 C	105 ░C	0.181 in	4.6 mm	Solder	Receptacle	Through Hole	Flash	0.1 in	2.54 mm

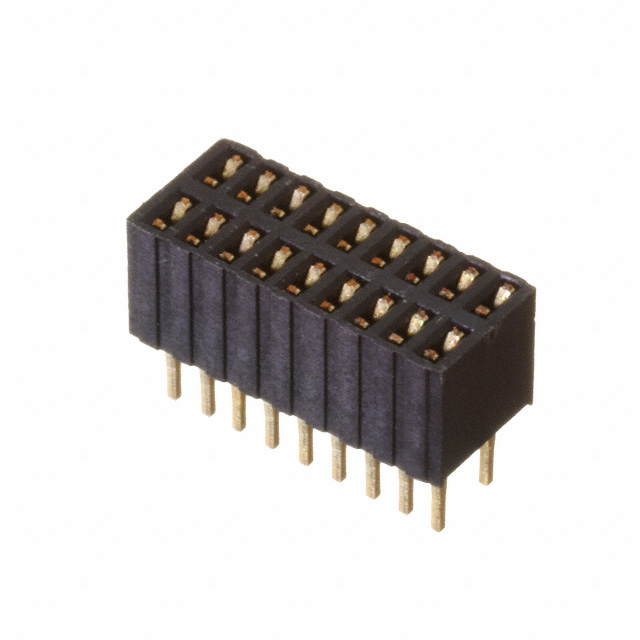

Adam Tech HRS-2B-18-GA	General Purpose	Phosphor Bronze	Thermoplastic	Rectangular	Flash	2	All	1.27 mm	0.05 in	Gold	250 VAC	18	UL94 V-0	0.118 in	3 mm	Push-Pull	Gold	Black	Forked	-40 C	105 ░C	0.181 in	4.6 mm	Solder	Receptacle	Through Hole	Flash	0.1 in	2.54 mm
Adam Tech HRS-2B-10-GA	General Purpose	Phosphor Bronze	Thermoplastic	Rectangular	Flash	2	All	1.27 mm	0.05 in	Gold	250 VAC	10	UL94 V-0	0.118 in	3 mm	Push-Pull	Gold	Black	Forked	-40 C	105 ░C	0.181 in	4.6 mm	Solder	Receptacle	Through Hole	Flash	0.1 in	2.54 mm

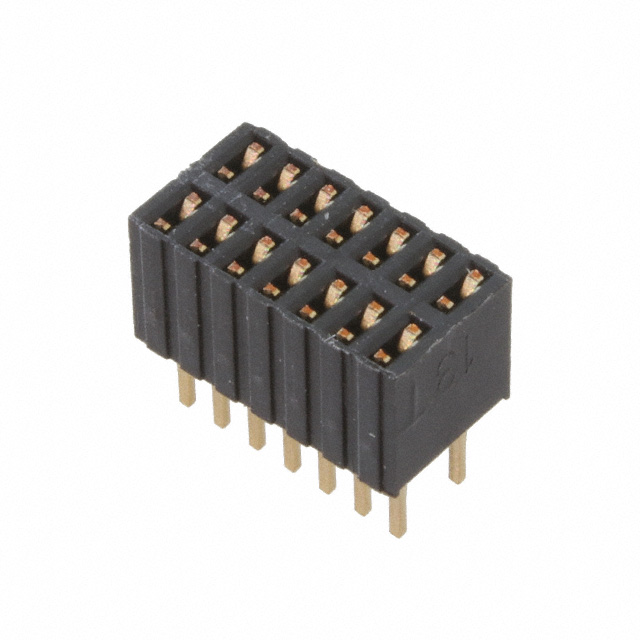

Adam Tech HRS-2B-14-GA	General Purpose	Phosphor Bronze	Thermoplastic	Rectangular	Flash	2	All	1.27 mm	0.05 in	Gold	250 VAC	14	UL94 V-0	0.118 in	3 mm	Push-Pull	Gold	Black	Forked	-40 C	105 ░C	0.181 in	4.6 mm	Solder	Receptacle	Through Hole	Flash	0.1 in	2.54 mm
