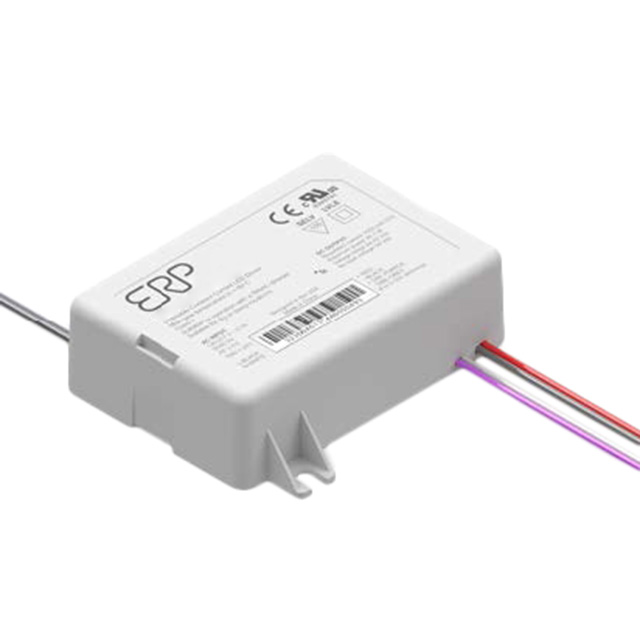

ESP050W Series

Catalog

AC/DC LED POWER SUPPLY 50.4W SINGLE 6-PIN

Part	Mounting Type	Weight	Weight	Topology	Features	Voltage - Output [Max]	Voltage - Output [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Dimming	Voltage - Input (Max) [Max]	Approval Agency	Ratings	Termination Style	Voltage - Input (Min) [Min]	Number of Outputs	Efficiency	Power (Watts)	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Type
ERP Power, LLC ESP050W-1200-42	Chassis Mount	0.489 lb	222 g	AC DC Converter	OCP OTP SCP	42 V	28 V	2.36 "	1.07 in	27.2 mm	87 mm	3.43 "	59.9 mm	Analog ELV TRIAC	277 VAC	CB CE cRUcs cUL FC UL	IP64 NEMA 410	Wire Leads	120 VAC	1	87 %	50 W	1.2 A	-30 ░C	90 °C	Constant Current
ERP Power, LLC ESP050W-1050-42	Chassis Mount	0.489 lb	222 g	AC DC Converter	OCP OTP SCP	42 V	28 V	2.36 "	1.07 in	27.2 mm	87 mm	3.43 "	59.9 mm	Analog ELV TRIAC	277 VAC	CB CE cRUcs cUL FC UL	IP64 NEMA 410	Wire Leads	120 VAC	1	87 %	44 W	1.05 A	-30 ░C	90 °C	Constant Current
ERP Power, LLC ESP050W-1400-32	Chassis Mount	0.489 lb	222 g	AC DC Converter	OCP OTP SCP	32 VDC	21 V	2.36 "	1.07 in	27.2 mm	87 mm	3.43 "	59.9 mm	Analog ELV TRIAC	277 VAC	CB CE cRUcs cUL FC UL	IP64 NEMA 410	Wire Leads	120 VAC	1	87 %	45 W	1.4 A	-30 ░C	90 °C	Constant Current
ERP Power, LLC ESP050W-1400-34	Chassis Mount	0.489 lb	222 g	AC DC Converter	OCP OTP SCP	34 V	23 V	2.36 "	1.07 in	27.2 mm	87 mm	3.43 "	59.9 mm	Analog ELV TRIAC	277 VAC	CB CE cRUcs cUL FC UL	IP64 NEMA 410	Wire Leads	120 VAC	1	87 %	48 W	1.4 A	-30 ░C	90 °C	Constant Current
