YB26WC Series

Catalog

SWITCH PUSHBUTTON DPDT 0.4VA 28V

Part	Electrical Life	Mechanical Life	Actuator Marking	Type	Ingress Protection	Voltage Rating - DC	Illumination Type, Color	Illumination Voltage (Nominal)	Voltage Rating - AC	Current Rating (Amps)	Color - Actuator/Cap	Actuator Type	Termination Style	Mounting Type	Switch Function	Circuit	Features	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]
NKK Switches YB26WCKG01-2CF24-JB	100000 Cycles	200000 Cycles	No Marking	Illuminated Standard	IP65 - Dust Tight Water Resistant	28 V	Green/Red LED	24 V	28 V	0.4 VA	Clear	Button Round	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Front	On-On	DPDT	Voltage Reduction Lighting	16 mm	50 °C	-25 °C

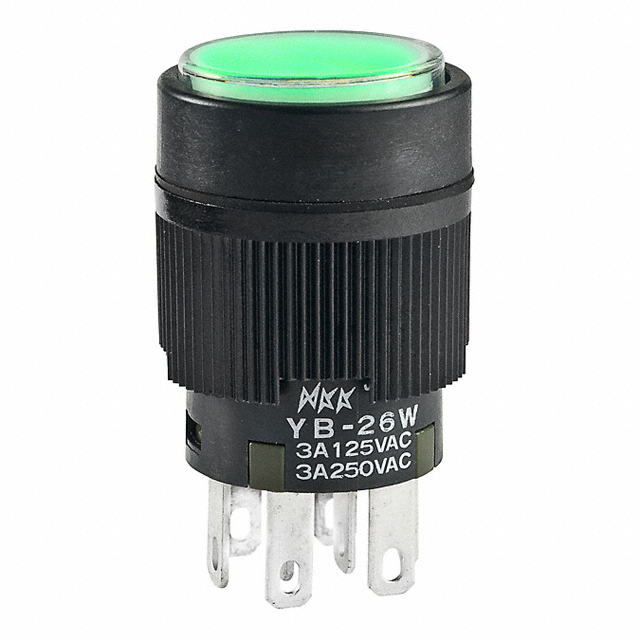

NKK Switches YB26WCKW01-5F-JF	100000 Cycles	200000 Cycles	No Marking	Illuminated Standard	IP65 - Dust Tight Water Resistant	30 V	Green LED	2.2 VDC	125 V	3 A	Clear	Button Round	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Front	On-On	DPDT	Voltage Reduction Lighting	16 mm	50 °C	-25 °C
NKK Switches YB26WCKW03-5C12-JC	100000 Cycles	200000 Cycles	No Marking	Illuminated Standard	IP65 - Dust Tight Water Resistant	30 V	LED Red	12 VDC	125 V	3 A	Clear	Button Round	PC Pin	Panel Mount Front	On-On	DPDT	Voltage Reduction Lighting	16 mm	50 °C	-25 °C
NKK Switches YB26WCKW03	100000 Cycles	200000 Cycles	No Marking	Standard	IP65 - Dust Tight Water Resistant	30 V			125 V	3 A		Plunger for Cap	PC Pin	Panel Mount Front	On-On	DPDT	Voltage Reduction Lighting	16 mm	70 °C	-25 °C
NKK Switches YB26WCKW01-5F12-JF	100000 Cycles	200000 Cycles	No Marking	Illuminated Standard	IP65 - Dust Tight Water Resistant	30 V	Green LED	12 VDC	125 V	3 A	Clear	Button Round	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Front	On-On	DPDT	Voltage Reduction Lighting	16 mm	50 °C	-25 °C
NKK Switches YB26WCKW01-5F12-JB	100000 Cycles	200000 Cycles	No Marking	Illuminated Standard	IP65 - Dust Tight Water Resistant	30 V	Green LED	12 VDC	125 V	3 A	Clear	Button Round	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Front	On-On	DPDT	Voltage Reduction Lighting	16 mm	50 °C	-25 °C
NKK Switches YB26WCKW01-1F02-JF	100000 Cycles	200000 Cycles	No Marking	Illuminated Standard	IP65 - Dust Tight Water Resistant	30 V	Green LED	2 VDC	125 V	3 A	Clear	Button Round	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Front	On-On	DPDT	Voltage Reduction Lighting	16 mm	50 °C	-25 °C

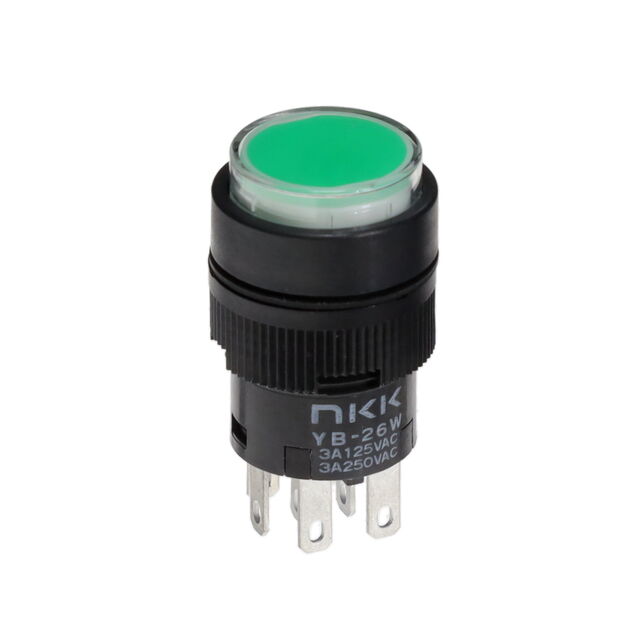

NKK Switches YB26WCKW01-5F05-JF	100000 Cycles	200000 Cycles	No Marking	Illuminated Standard	IP65 - Dust Tight Water Resistant	30 V	Green LED	5 VDC	125 V	3 A	Clear	Button Round	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Front	On-On	DPDT	Voltage Reduction Lighting	16 mm	50 °C	-25 °C
NKK Switches YB26WCKW01-5C-JB	100000 Cycles	200000 Cycles	No Marking	Illuminated Standard	IP65 - Dust Tight Water Resistant	30 V	LED Red	1.9 VDC	125 V	3 A	Clear	Button Round	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Front	On-On	DPDT	Voltage Reduction Lighting	16 mm	50 °C	-25 °C
NKK Switches YB26WCKW01/CUL	100000 Cycles	200000 Cycles	No Marking	Standard	IP65 - Dust Tight Water Resistant	30 V			125 V	3 A		Plunger for Cap	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Front	On-On	DPDT	Voltage Reduction Lighting	16 mm	70 °C	-25 °C
