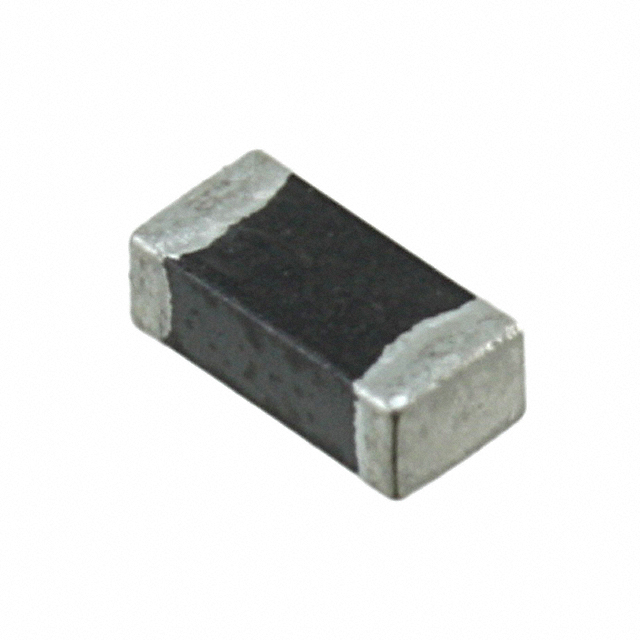

Z1206C Series
Manufacturer: KEMET
Beta
⌘K
FERRITE BEADS 48OHMS 6A 25% DCR=5MOHMS
| Part | Filter Type | Impedance @ Frequency | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | DC Resistance (DCR) (Max) [Max] | Mounting Type | Number of Lines | Height (Max) [z] | Height (Max) [z] | Package / Case | Current Rating (Max) [Max] | Height (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | Power Line | 48 Ohms | 125 °C | -40 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 5 mOhm | Surface Mount | 1 | 0.051 in | 1.3 mm | 1206 (3216 Metric) | 6 A | |
KEMET | Power Line | 80 Ohms | 125 °C | -40 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 10 mOhm | Surface Mount | 1 | 1.8 mm | 1206 (3216 Metric) | 4 A | 0.071 in |
