MPM3804 Series

Catalog

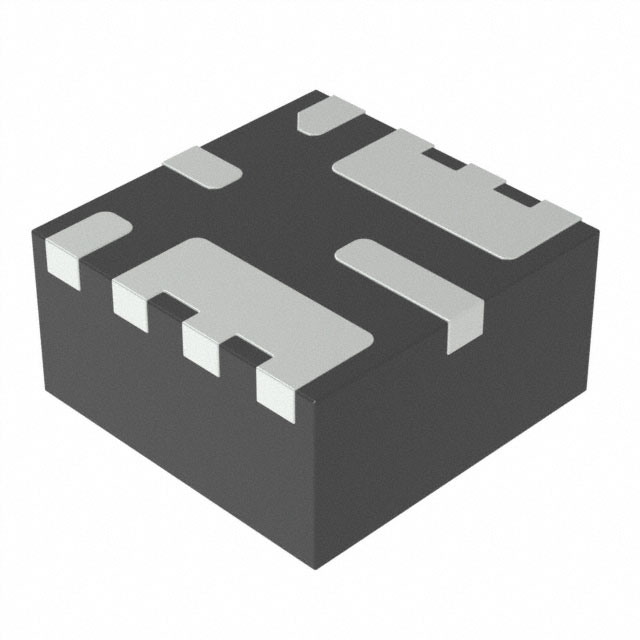

CONV DC-DC SINGLE STEP DOWN 2.3V TO 5.5V 10-PIN QFN T/R

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Supplier Device Package	Mounting Type	Type	Current - Output (Max) [Max]	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Number of Outputs	Efficiency	Package / Case	Applications	Features	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]
Monolithic Power Systems Inc. MPM3804GG-Z	0.04 in	2 mm	2 mm	1 mm	0.08 in	0.08 "	2.3 V	10-QFN (2x2)	Surface Mount	Non-Isolated PoL Module	600 mA	0.6 V	5.5 V	1	91 %	10-PowerVFQFN Module	ITE (Commercial)	Adjustable Output	5.5 V	-40 C	125 °C
Monolithic Power Systems Inc. MPM3804GG-P	0.04 in	2 mm	2 mm	1 mm	0.08 in	0.08 "	2.3 V	10-QFN (2x2)	Surface Mount	Non-Isolated PoL Module	600 mA	0.6 V	5.5 V	1	91 %	10-PowerVFQFN Module	ITE (Commercial)	Adjustable Output	5.5 V	-40 C	125 °C
