77236 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

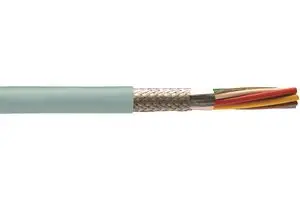

CBL 12COND 14AWG SHLD 100=100'
| Part | Shield Coverage | Shield Material | Features | Shield Type | Wire Gauge | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Number of Conductors | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Jacket (Insulation) Material | Conductor Insulation | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum Copper Tinned | Biological Compatibility | Braid Foil | 14.5 AWG | -50 °C | 105 ░C | 600 V | 12 | Copper Tinned | 0.813 mm | 0.032 in | ISO 10993 | Polyphenylene Ether Modified (mPPE) | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | 41 | 30 | Slate | 12.57 mm | 0.495 in | ||
ALPHA WIRE | 100 % | Aluminum Copper Tinned | Biological Compatibility | Braid Foil | 14.5 AWG | -50 °C | 105 ░C | 600 V | 12 | Copper Tinned | 0.813 mm | 0.032 in | ISO 10993 | Polyphenylene Ether Modified (mPPE) | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | 41 | 30 | Slate | 12.57 mm | 0.495 in | 304.8 m | 1000 ft |
