SN6501 Series

Low-noise, 350-mA, 410-kHz transformer driver for isolated power supplies

Catalog

Low-noise, 350-mA, 410-kHz transformer driver for isolated power supplies

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Current - Supply	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Package / Case	Utilized IC / Part	Outputs and Type	Outputs and Type	Board Type	Voltage - Output	Voltage - Input	Supplied Contents	Contents	Type	Function
Texas Instruments SN6501DBVR	SOT-23-5	125 °C	-40 °C	Transformer Driver	300 µA	5.5 V	3 V	Surface Mount	SC-74A SOT-753
Texas Instruments SN6501-5EVM										SN6501	Isolated	1	Fully Populated	5 V	5 VDC	Board(s)

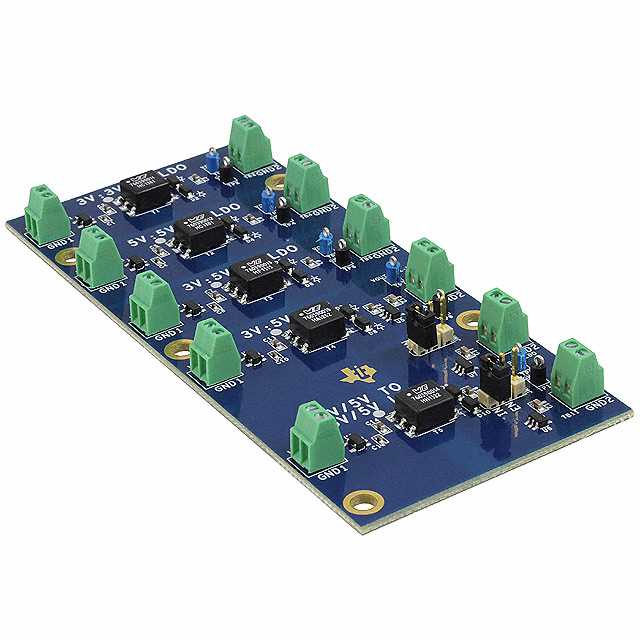

Texas Instruments SN6501-MULXFMR-EVM										SN6501						Board(s)	Board(s)	Power Management	Transformer Driver
Texas Instruments SN6501DBVT	SOT-23-5	125 °C	-40 °C	Transformer Driver	300 µA	5.5 V	3 V	Surface Mount	SC-74A SOT-753

Catalog

Low-noise, 350-mA, 410-kHz transformer driver for isolated power supplies

Key Features

• Push-pull driver for small transformersSingle 3.3-V or 5-V supplyHigh primary-side current drive:5-V Supply: 350 mA (Max)3.3-V Supply: 150 mA (Max)Low ripple on rectified output permits small output capacitorsSmall 5-Pin SOT-23 PackagePush-pull driver for small transformersSingle 3.3-V or 5-V supplyHigh primary-side current drive:5-V Supply: 350 mA (Max)3.3-V Supply: 150 mA (Max)Low ripple on rectified output permits small output capacitorsSmall 5-Pin SOT-23 Package

Description

The SN6501 is a monolithic oscillator/power-driver, specifically designed for small form factor, isolated power supplies in isolated interface applications. The device drives a low-profile, center-tapped transformer primary from a 3.3-V or 5-V DC power supply. The secondary can be wound to provide any isolated voltage based on transformer turns ratio. The SN6501 consists of an oscillator followed by a gate drive circuit that provides the complementary output signals to drive the ground referenced N-channel power switches. The internal logic ensures break-before-make action between the two switches. The SN6501 is available in a small SOT-23 (5) package, and is specified for operation at temperatures from –40°C to 125°C. The SN6501 is a monolithic oscillator/power-driver, specifically designed for small form factor, isolated power supplies in isolated interface applications. The device drives a low-profile, center-tapped transformer primary from a 3.3-V or 5-V DC power supply. The secondary can be wound to provide any isolated voltage based on transformer turns ratio. The SN6501 consists of an oscillator followed by a gate drive circuit that provides the complementary output signals to drive the ground referenced N-channel power switches. The internal logic ensures break-before-make action between the two switches. The SN6501 is available in a small SOT-23 (5) package, and is specified for operation at temperatures from –40°C to 125°C.
