NHD-1.69 Series

Catalog

BREAKOUT 1.69" COLOR OLED GLASS

Part	Supplied Contents	Function	Contents	Utilized IC / Part	Type	Secondary Attributes	Dot Size [y]	Dot Size [x]	Dot Pitch [x]	Dot Pitch [y]	Diagonal Screen Size [custom]	Diagonal Screen Size [custom]	Display Type	Controller Type	Dot Pixels [y]	Dot Pixels [x]	Interface	Graphics Color	Viewing Area [y]	Viewing Area [z]	Background Color	Diagonal Screen Size	Diagonal Screen Size	Display Mode	Interconnect System	Function	Platform

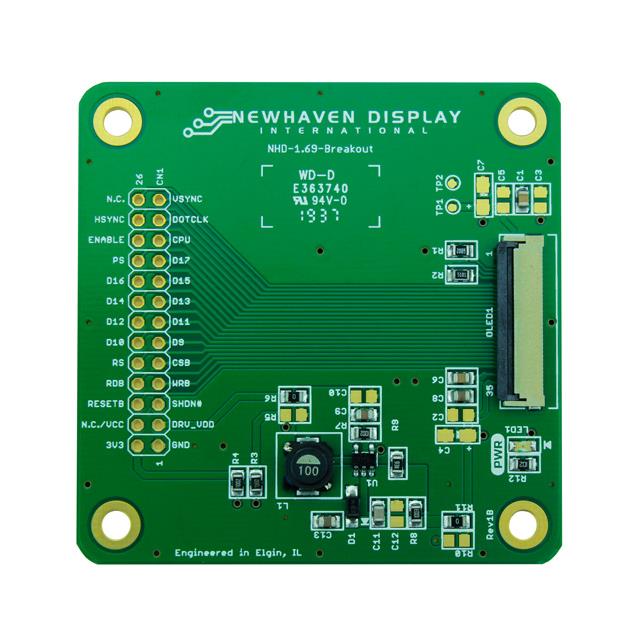

Newhaven Display Intl NHD-1.69-BREAKOUT	Board(s)	Breakout Board	Board(s)	NHD-1.69-160128G SSD1357	Display	SPI Interface(s)
Newhaven Display Intl NHD-1.69-160128ASC3							0.19 mm	0.14 mm	0.21 mm	0.21 mm	1.69 "	42.93 mm	OLED - Passive Matrix	SEPS525	128	160	SPI	Blue Green Red	35 mm	28 mm	Black

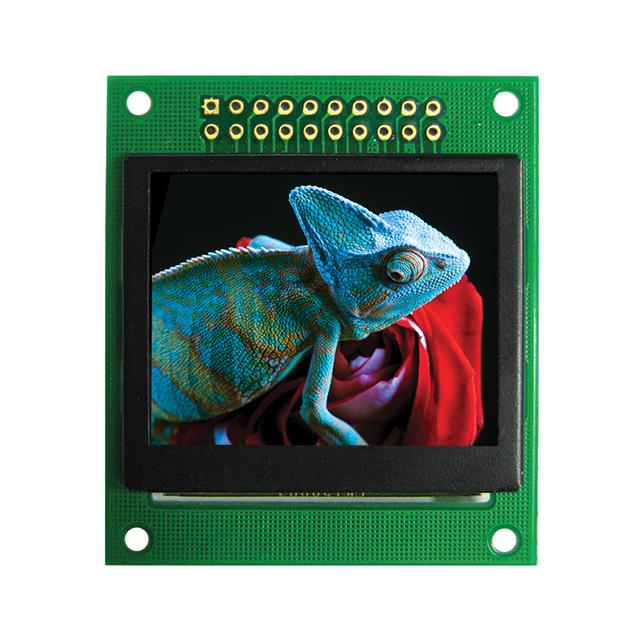

Newhaven Display Intl NHD-1.69-160128UGC3							0.19 mm	0.14 mm	0.21 mm	0.21 mm			OLED - Passive Matrix	SEPS525	128	160	Parallel/Serial	Blue Green Red	35 mm	28 mm		42.93 mm	1.7 in

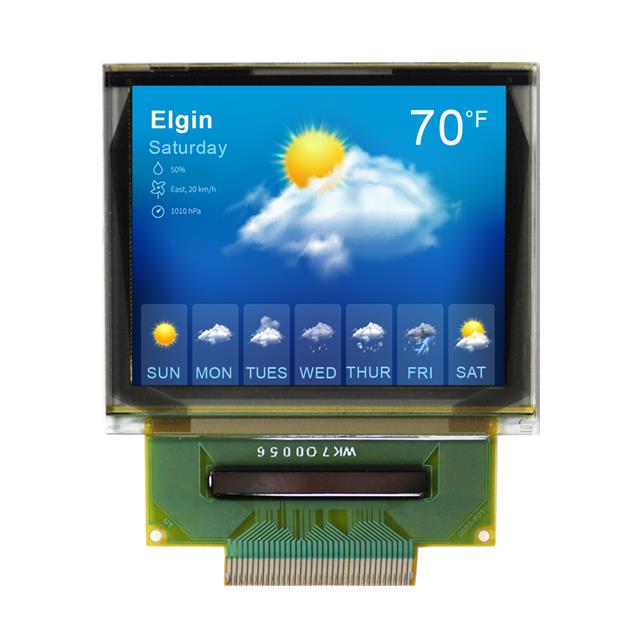

Newhaven Display Intl NHD-1.69-160128G											1.69 "	42.93 mm	OLED	SEPS525	128	160	Parallel Serial	Blue Green Red						Transflective

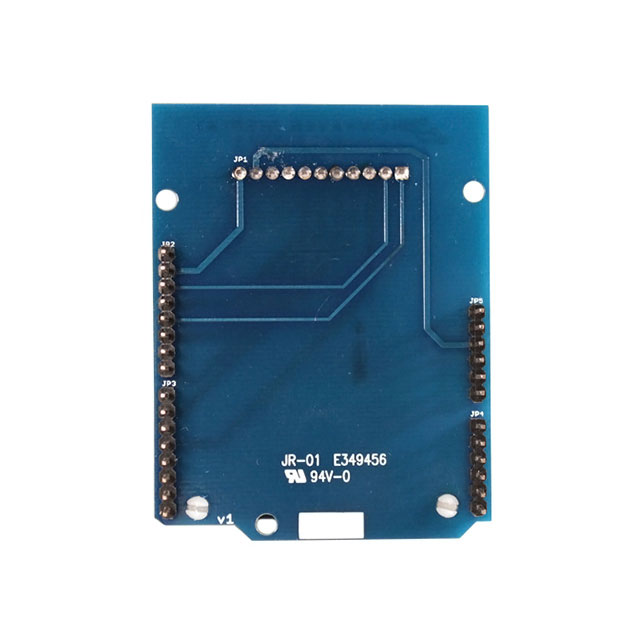

Newhaven Display Intl NHD-1.69-AU-SHIELD			Board(s)	NHD-1.69-160128ASC3 SEPS525	Display																				Arduino R3 Shield	1.69 in	Arduino
