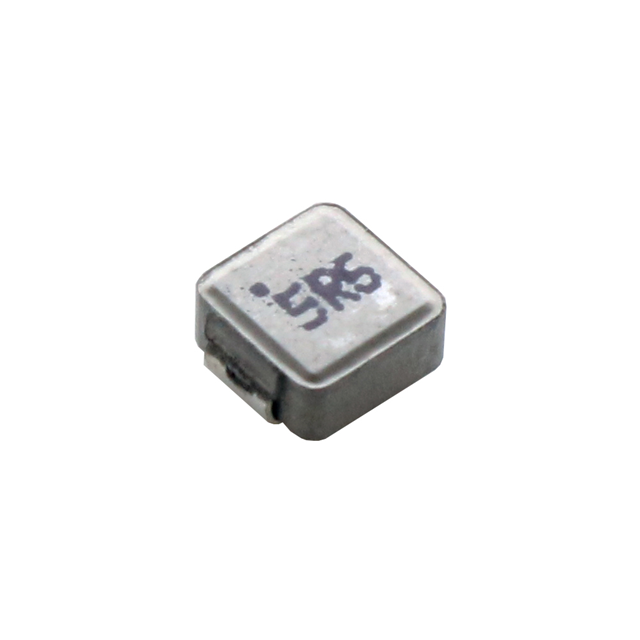

MPL-AY Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K
POWER INDUCTORS - SMD STANDARD SERIES, SIZE DIMENSION: 4020, INDUCTANCE VALUE: 10UH
| Part | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Inductance | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Current - Saturation (Isat) | Type | Inductance Frequency - Test | DC Resistance (DCR) | Shielding | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | Surface Mount | 0.079 in | 2 mm | 1.9 A | -40 C | 155 C | 10 µH | 4.1 mm | 0.161 in | 4.45 mm | 0.175 in | 2 A | Molded | 100 kHz | 163 mOhm | Unshielded | Nonstandard |
