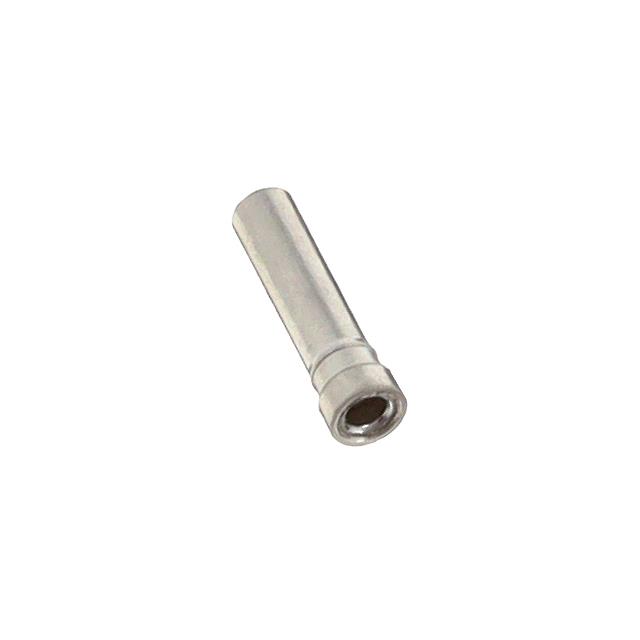

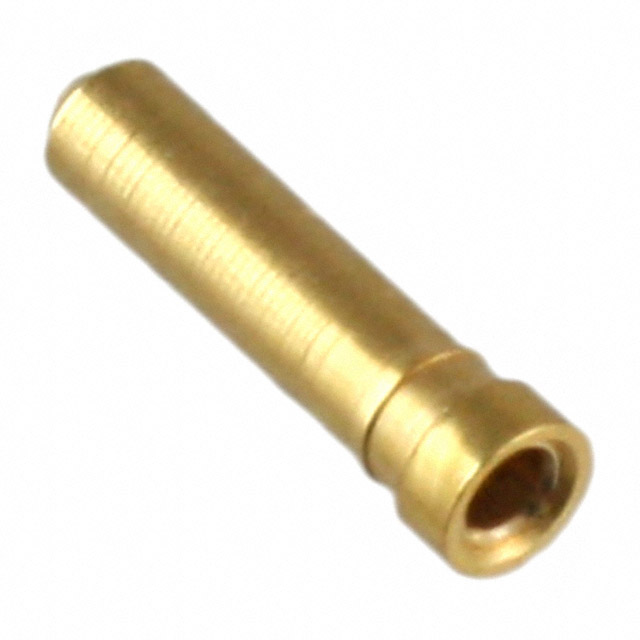

6857-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish Thickness	Contact Finish Thickness	Socket Depth	Socket Depth	Tail Type	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish	Length - Overall	Length - Overall	Accepts Square Pin Size	Accepts Square Pin Size	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Material
Mill-Max Manufacturing Corp. 6857-0-15-15-47-14-10-0	-55 C	125 °C	Press-Fit	0.25 Ám	10 Áin	0.23 in	5.84 mm	No Tail	0.051 in	1.3 mm	0.072 "	1.83 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	Gold	0.28 in	7.11 mm	0.025 in	0.64 mm	0.062 in	1.57 mm	Beryllium Copper
Mill-Max Manufacturing Corp. 6857-0-15-15-47-27-10-0	-55 C	125 °C	Press-Fit	0.76 Ám	30 Áin	0.23 in	5.84 mm	No Tail	0.051 in	1.3 mm	0.072 "	1.83 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	Gold	0.28 in	7.11 mm	0.025 in	0.64 mm	0.062 in	1.57 mm	Beryllium Copper
Mill-Max Manufacturing Corp. 6857-0-15-01-47-27-10-0	-55 C	125 °C	Press-Fit	0.76 Ám	30 Áin	0.23 in	5.84 mm	No Tail	0.051 in	1.3 mm	0.072 "	1.83 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	Gold	0.28 in	7.11 mm	0.025 in	0.64 mm	0.062 in	1.57 mm	Beryllium Copper
Mill-Max Manufacturing Corp. 6857-0-15-80-47-27-10-0	-55 C	125 °C	Press-Fit	0.76 Ám	30 Áin	0.23 in	5.84 mm	No Tail	0.051 in	1.3 mm	0.072 "	1.83 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	Gold	0.28 in	7.11 mm	0.025 in	0.64 mm	0.062 in	1.57 mm	Beryllium Copper
Mill-Max Manufacturing Corp. 6857-0-15-80-47-80-10-0	-55 C	125 °C	Press-Fit	5.08 Ám	200 Áin	0.23 in	5.84 mm	No Tail	0.051 in	1.3 mm	0.072 "	1.83 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	Tin	0.28 in	7.11 mm	0.025 in	0.64 mm	0.062 in	1.57 mm	Beryllium Copper
Mill-Max Manufacturing Corp. 6857-0-15-01-47-01-10-0	-55 C	125 °C	Press-Fit	5.08 Ám	200 Áin	0.23 in	5.84 mm	No Tail	0.051 in	1.3 mm	0.072 "	1.83 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	Tin-Lead	0.28 in	7.11 mm	0.025 in	0.64 mm	0.062 in	1.57 mm	Beryllium Copper
Mill-Max Manufacturing Corp. 6857-0-15-01-47-14-10-0	-55 C	125 °C	Press-Fit	0.25 Ám	10 Áin	0.23 in	5.84 mm	No Tail	0.051 in	1.3 mm	0.072 "	1.83 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	Gold	0.28 in	7.11 mm	0.025 in	0.64 mm	0.062 in	1.57 mm	Beryllium Copper
