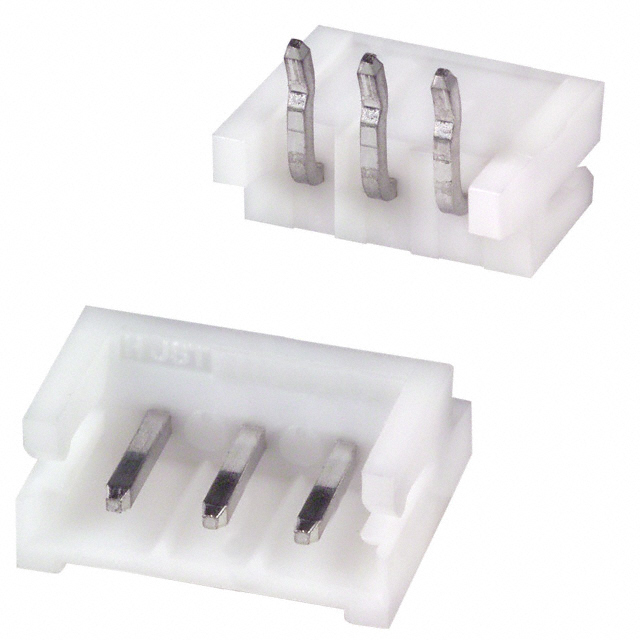

S3B-EH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 3POS 2.5MM
| Part | Contact Shape | Connector Type | Mounting Type | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material | Voltage Rating | Insulation Height | Insulation Height | Contact Length - Post [x] | Contact Length - Post [x] | Material Flammability Rating | Contact Type | Contact Length - Mating | Contact Length - Mating | Fastening Type | Pitch - Mating | Pitch - Mating | Shrouding | Contact Material | Current Rating (Amps) | Contact Finish - Post | Number of Rows | Termination | Number of Positions Loaded | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Square | Header | Right Angle Through Hole | Natural | 85 °C | -25 °C | Nylon 6/6 Polyamide (PA66) | 250 V | 0.165 in | 4.2 mm | 0.126 " | 3.2 mm | UL94 V-0 | Male Pin | 4 mm | 0.157 in | Latch Lock | 2.5 mm | 0.098 in | Shrouded - 3 Wall | Brass | 3 A | Tin | 1 | Press-Fit Solder | All | Board to Cable/Wire |
