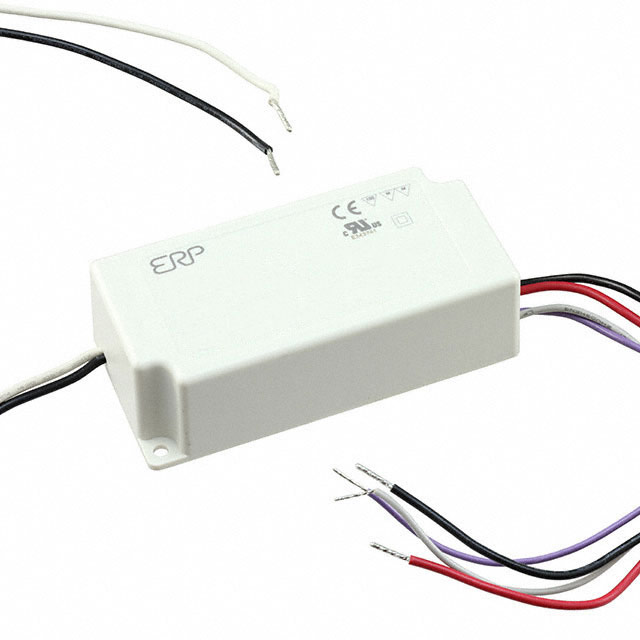

ESS040W Series

Catalog

LED DRIVER CC AC/DC 28-42V 800MA

Part	Mounting Type	Weight	Weight	Termination Style	Dimming	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Features	Approval Agency	Voltage - Input (Max) [Max]	Topology	Efficiency	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Number of Outputs	Power (Watts)	Voltage - Output [Max]	Voltage - Output [Min]
ERP Power, LLC ESS040W-0800-42	Chassis Mount	154 g	0.34 lb	Wire Leads	Analog ELV TRIAC	0.99 "	83.8 mm	3.3 "	1.57 "	39.9 mm	25.1 mm	OCP OTP SCP	CB CE cRUcs cUL FC UL	277 VAC	AC DC Converter	87 %	0.8 A	120 VAC	Constant Current	-30 ░C	90 °C	IP64 NEMA 410	1	34 W	42 V	28 V
ERP Power, LLC ESS040W-0900-42	Chassis Mount	154 g	0.34 lb	Wire Leads	Analog ELV TRIAC	0.99 "	83.8 mm	3.3 "	1.57 "	39.9 mm	25.1 mm	OCP OTP SCP	CB CE cRUcs cUL FC UL	277 VAC	AC DC Converter	87 %	900 mA	120 VAC	Constant Current	-30 ░C	90 °C	IP64 NEMA 410	1	38 Watts	42 V	28 V
ERP Power, LLC ESS040W-1400-27	Chassis Mount	154 g	0.34 lb	Wire Leads	Analog ELV TRIAC	0.99 "	83.8 mm	3.3 "	1.57 "	39.9 mm	25.1 mm	OCP OTP SCP	CB CE cRUcs cUL FC UL	277 VAC	AC DC Converter	87 %	1.4 A	120 VAC	Constant Current	-30 ░C	90 °C	IP64 NEMA 410	1	38 Watts	27 V	20 V
