A-20GQ Series

Manufacturer: Omron Automation and Safety

Catalog

SWITCH SNAP ACTION SPDT 20A 125V

Part	Mounting Type	Pretravel	Pretravel	Switch Function	Operating Position	Operating Position	Mechanical Life	Electrical Life	Voltage Rating - DC	Termination Style	Overtravel [custom]	Overtravel [custom]	Current Rating (Amps)	Circuit	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Release Force	Differential Travel	Differential Travel	Voltage Rating - AC	Ingress Protection	Operating Force [Max]	Operating Force [Min]	Operating Force

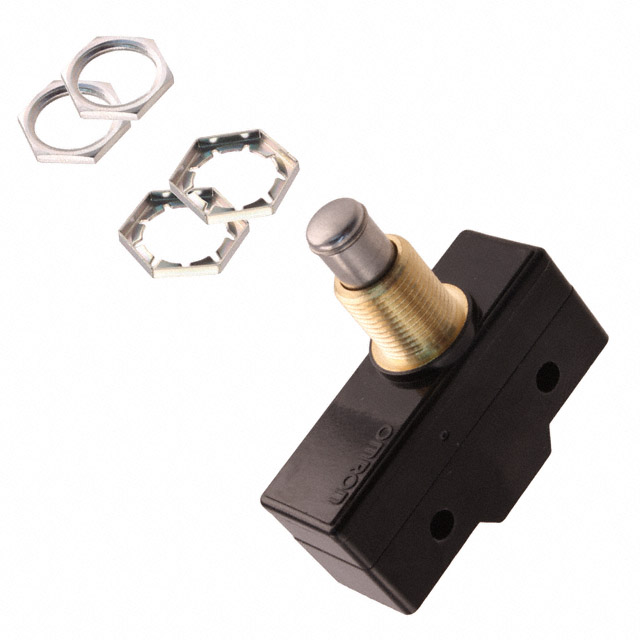

Omron Automation and Safety A-20GQ-B	Panel Mount	0.051 in	1.3 mm	On-Mom	21.8 mm	0.859 in	1000000 Cycles	500000 Cycles	30 V	Screw Terminal	5.6 mm	0.219 "	6 A 20 A	SPDT	Overtravel Plunger	-25 °C	80 °C	285 gf	0.2 mm	0.008 in	125 V	IP00	625 gf	400 gf

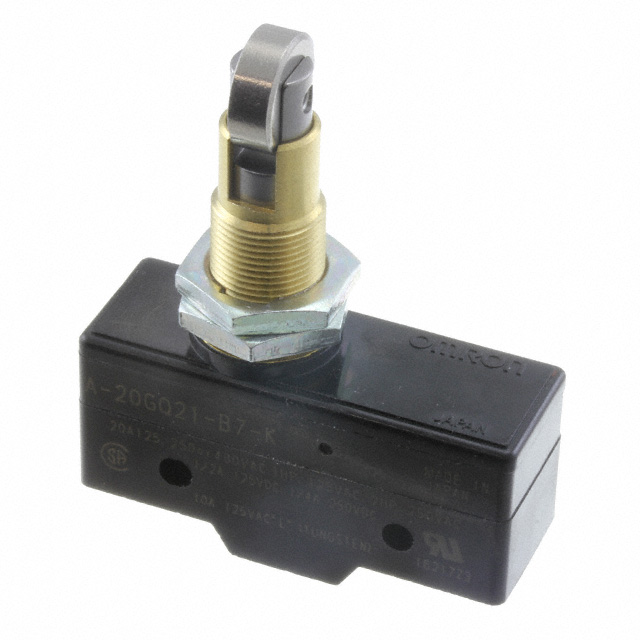

Omron Automation and Safety A-20GQ21-B7-K	Panel Mount	0.051 in	1.3 mm	On-Mom	33.4 mm	1.313 in	1000000 Cycles	500000 Cycles	30 V	Screw Terminal	3.6 mm	0.141 "	6 A 20 A	SPDT	Roller Plunger	-25 °C	80 °C	280 gf			125 V	IP00			630 gf
Omron Automation and Safety A-20GQ22	Panel Mount	0.051 in	1.3 mm	On-Mom	33.4 mm	1.313 in	1000000 Cycles	500000 Cycles	30 V	Solder Lug	3.6 mm	0.141 "	6 A 20 A	SPDT	Roller Plunger	-25 °C	80 °C	280 gf			125 V	IP00			630 gf

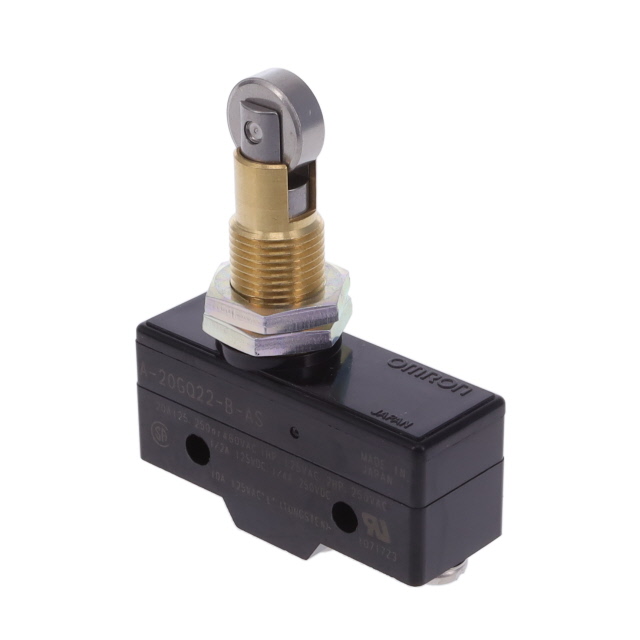

Omron Automation and Safety A-20GQ22-B-AS	Panel Mount	0.051 in	1.3 mm	On-Mom	33.4 mm	1.313 in	1000000 Cycles	500000 Cycles	30 V	Screw Terminal	3.6 mm	0.141 "	6 A 20 A	SPDT	Roller Plunger	-25 °C	80 °C	280 gf			125 V	IP00			630 gf
Omron Automation and Safety A-20GQ21-B	Panel Mount	0.051 in	1.3 mm	On-Mom	33.4 mm	1.313 in	1000000 Cycles	500000 Cycles	30 V	Screw Terminal	3.6 mm	0.141 "	6 A 20 A	SPDT	Roller Plunger	-25 °C	80 °C	280 gf			125 V	IP00			630 gf
Omron Automation and Safety A-20GQ21	Panel Mount	0.051 in	1.3 mm	On-Mom	33.4 mm	1.313 in	1000000 Cycles	500000 Cycles	30 V	Solder Lug	3.6 mm	0.141 "	6 A 20 A	SPDT	Roller Plunger	-25 °C	80 °C	280 gf			125 V	IP00			630 gf

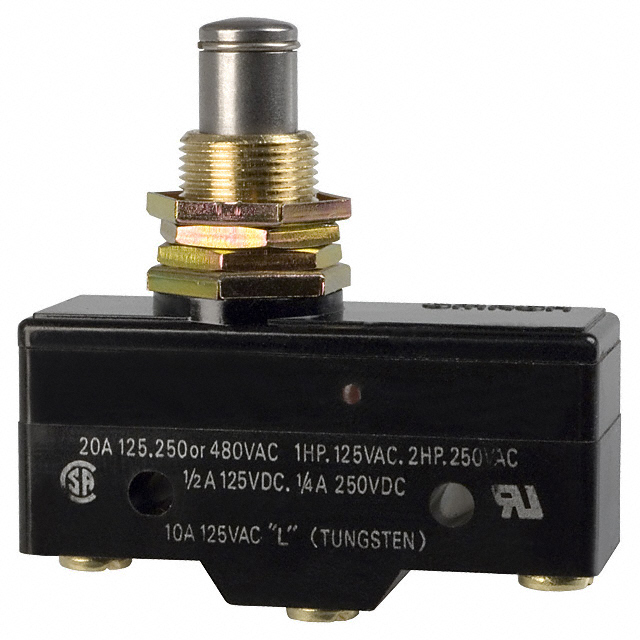

Omron Automation and Safety A-20GQ-B7-K	Panel Mount	0.051 in	1.3 mm	On-Mom	21.8 mm	0.859 in	1000000 Cycles	500000 Cycles	30 V	Screw Terminal	5.6 mm	0.219 "	6 A 20 A	SPDT	Overtravel Plunger	-25 °C	80 °C	285 gf	0.2 mm	0.008 in	125 V	IP00	625 gf	400 gf
