5592301 Series

Manufacturer: DIALIGHT

Catalog

LED PANEL YLW DIFF 1.9V SNAP-IN

Part	Viewing Angle	Termination Style	Wavelength - Peak	Current	Type	Lens Transparency	Lens Color	Panel Cutout Shape	Voltage	Lens Size	Lens Size	Millicandela Rating	Lens Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Lamp Color	Termination Style	Termination Style

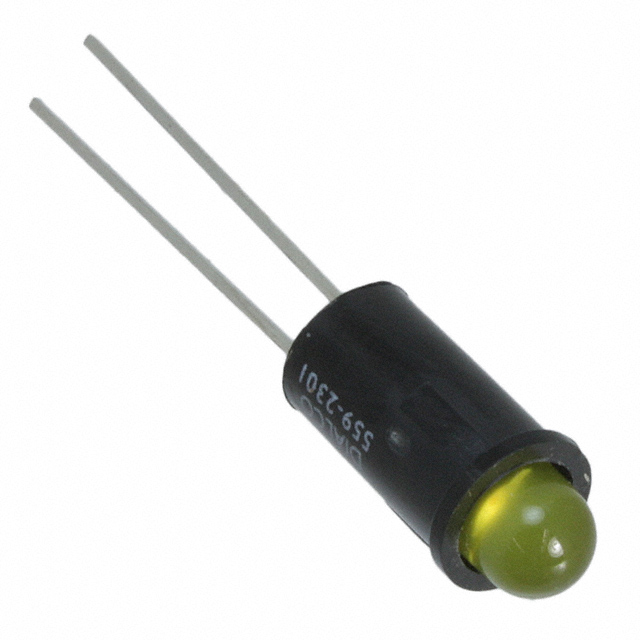

DIALIGHT 5592301001F	50 °	PC Pin	585 nm	20 mA	LED	Diffused	Yellow	Round	1.9 V	5 mm	T-1 3/4	29 mcd	Round with Domed Top	6.35 mm	0.25 in	Yellow

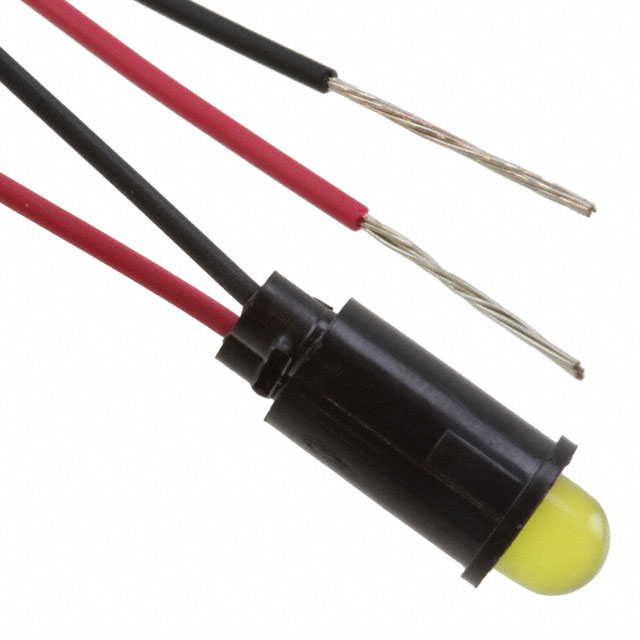

DIALIGHT 5592301023F	50 °		585 nm	20 mA	LED	Diffused	Blue	Round	1.9 V	5 mm	T-1 3/4	29 mcd	Round with Domed Top	6.35 mm	0.25 in	Yellow
DIALIGHT 5592301027F	50 °	Wire Leads	585 nm	20 mA	LED	Diffused	Blue	Round	1.9 V	5 mm	T-1 3/4	29 mcd	Round with Domed Top	6.35 mm	0.25 in	Yellow	14 in	355.6 mm

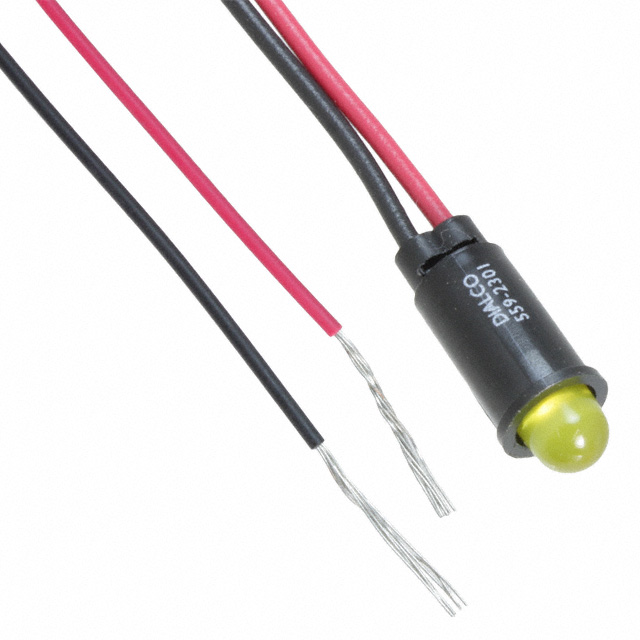

DIALIGHT 5592301007F	50 °	Wire Leads	585 nm	20 mA	LED	Diffused	Yellow	Round	1.9 V	5 mm	T-1 3/4	29 mcd	Round with Domed Top	6.35 mm	0.25 in	Yellow	14 in	355.6 mm

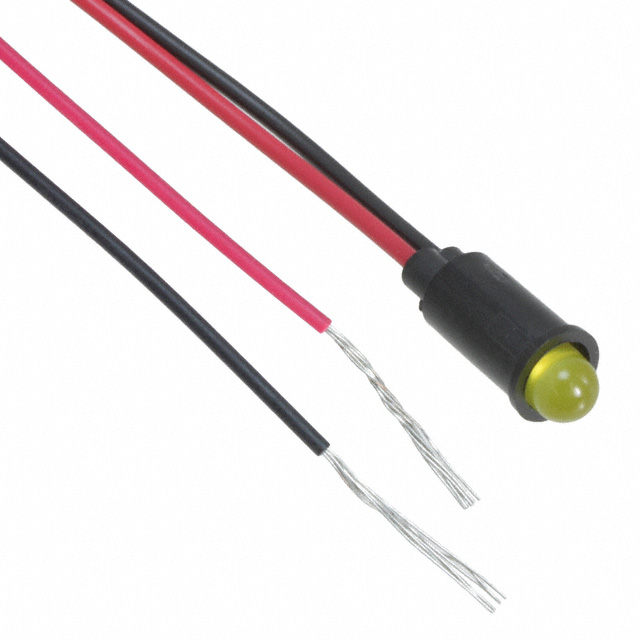

DIALIGHT 5592301003F	50 °		585 nm	20 mA	LED	Diffused	Yellow	Round	1.9 V	5 mm	T-1 3/4	29 mcd	Round with Domed Top	6.35 mm	0.25 in	Yellow
DIALIGHT 5592301820F	50 °		585 nm	20 mA	LED	Diffused	Yellow	Round	2.1 V	5 mm	T-1 3/4	29 mcd	Round with Domed Top	6.35 mm	0.25 in	Yellow
