BD733U2EFJ-C Series

500mA 3.3V Output, Ultra Low Iq, High-Accuracy LDO Regulator for Automotive

Catalog

500mA 3.3V Output, Ultra Low Iq, High-Accuracy LDO Regulator for Automotive

Part	Regulator Type	Voltage - Input [Min]	Voltage - Input [Max]	Board Type	Voltage - Output	Supplied Contents	Channels per IC	Current - Output	Utilized IC / Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Quiescent (Iq)	Output Type	Voltage Dropout (Max) [Max]	Protection Features	Output Configuration	Voltage - Output (Min/Fixed)	Grade	Qualification	Supplier Device Package	Mounting Type	Voltage - Input (Max) [Max]	Package / Case	Package / Case	Package / Case	Number of Regulators	PSRR	Current - Supply (Max) [Max]

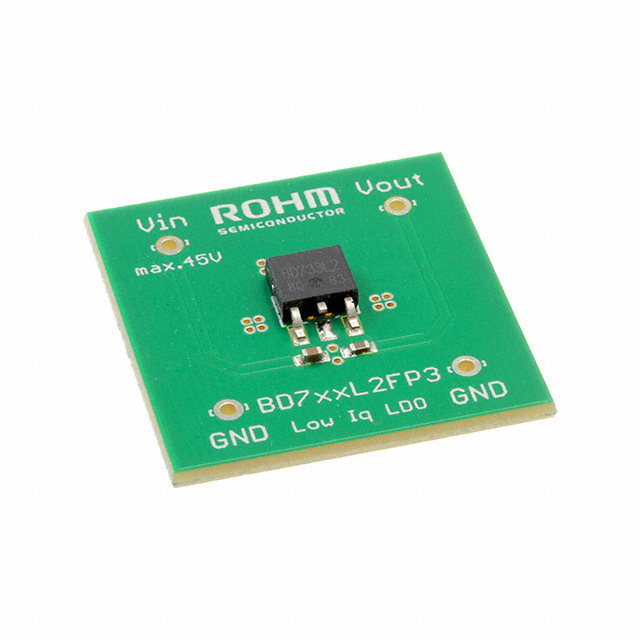

Rohm Semiconductor BD733L2FP-EVK-301	Positive Fixed	4.37 V	45 V	Fully Populated	3.3 V	Board(s)	1 - Single	200 mA	BD733
Rohm Semiconductor BD733U2EFJ-CE2								200 mA		125 °C	-40 °C	15 µA	1.81 mOhm	1 V	Over Current Over Temperature Short Circuit	Positive	3.3 V	Automotive	AEC-Q100	8-HTSOP-J	Surface Mount	45 V	0.154 in	8-SOIC	3.9 mm	1	63 dB
Rohm Semiconductor BD733L5FP-CE2								500 mA		125 °C	-40 °C	6 µA	1.81 mOhm	0.8 V	Over Current Over Temperature	Positive	3.3 V	Automotive	AEC-Q100	TO-252	Surface Mount	45 V		DPAK (2 Leads + Tab) SC-63 TO-252-3		1	63 dB	15 µA

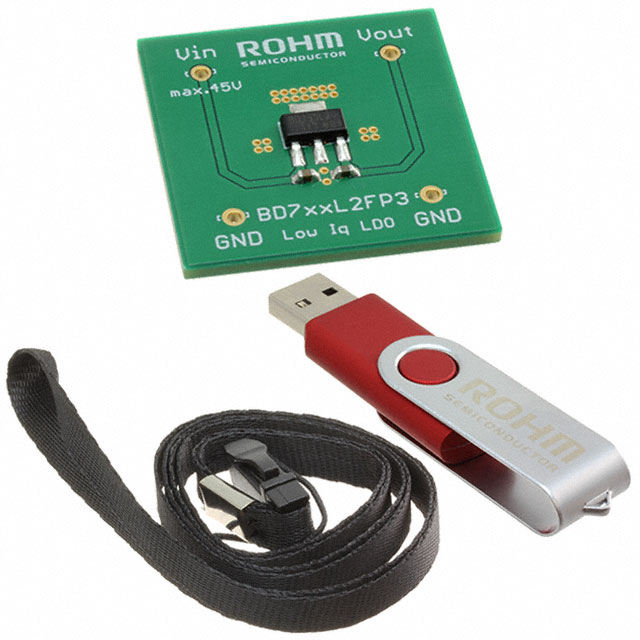

Rohm Semiconductor BD733L2FP3-EVK-301	Positive Fixed	4.37 V	45 V	Fully Populated	3.3 V	Board(s)	1 - Single	200 mA	BD733
Rohm Semiconductor BD733L2EFJ-CE2								200 mA		125 °C	-40 °C	6 µA	1.81 mOhm	1 V	Over Current Over Temperature	Positive	3.3 V	Automotive	AEC-Q100	8-HTSOP-J	Surface Mount	45 V	0.154 in	8-SOIC	3.9 mm	1	63 dB	15 µA
Rohm Semiconductor BD733L2FP3-CE2								200 mA		125 °C	-40 °C	6 µA	1.81 mOhm	1 V	Over Current Over Temperature	Positive	3.3 V	Automotive	AEC-Q100	SOT-223-4F	Surface Mount	45 V		TO-261-4 TO-261AA		1	63 dB	15 µA

Catalog

500mA 3.3V Output, Ultra Low Iq, High-Accuracy LDO Regulator for Automotive

Key Features

• Ultra low quiescent current: 6μA(Typ), Output current capability: 200mA, Output voltage: 3.3V or 5.0V(Typ), High output voltage accuracy: ±2%, Low saturation voltage by using PMOS output transistor., Integrated overcurrent protection to protect the IC from damage caused by output short-circuiting., Integrated thermal shutdown to protect the IC from overheating at overload conditions., Low ESR ceramic capacitor can be used as output capacitor., HTSOP-J8, TO252-3, SOT223-4(F)(SOT223-4, SOT223-4F) 3type package

Description

The BD733U2EFJ-C is low quiescent regulators featuring 50V absolute maximum voltage, and output voltage accuracy of ±2%, 200mA output current and 6μA (Typ) current consumption. These regulators are therefore ideal for applications requiring a direct connection to the battery and a low current consumption. Ceramic capacitors can be used for compensation of the output capacitor phase.This IC uses different production line against series model BD733L2EFJ-C for the purpose of improving production efficiency. We recommend using this IC for your new development. Electric characteristics noted in Datasheet does not differ between Production Line. In addition, the data of BD733L2EFJ-C is disclosed for documents and design models unless otherwise specified.
