HE42 Series

Catalog

EUROSTRIP SOCKET 3P10MMPS FLAT B

Part	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Current Rating	Number of Wire Entries	Barrier Type	Terminal Block Type	Pitch	Number of Rows	Voltage Rating	Bottom Termination	Top Termination	Color	Number of Circuits	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Terminal Screw Material	Terminal Screw Finish	Material - Insulation
Altech Corporation HE42BU/03	24 AWG	10 AWG	20 A	6	Enclosed	Eurostyle Terminal Strip	0.394 in	2	300 VAC/DC	Closed	Screws	White	3
Altech Corporation HE42BU/06	24 AWG	10 AWG	20 A	12	Enclosed	Eurostyle Terminal Strip	0.394 in	2	300 VAC/DC	Closed	Screws	White	6
Altech Corporation HE42BU/05	24 AWG	10 AWG	20 A	10	Enclosed	Eurostyle Terminal Strip	0.394 in	2	300 VAC/DC	Closed	Screws	White	5
Altech Corporation HE42BU/09	24 AWG	10 AWG	20 A	18	Enclosed	Eurostyle Terminal Strip	0.394 in	2	300 VAC/DC	Closed	Screws	White	9
Altech Corporation HE42BU/12	24 AWG	10 AWG	20 A	24	Enclosed	Eurostyle Terminal Strip	0.394 in	2	300 VAC/DC	Closed	Screws	White	12

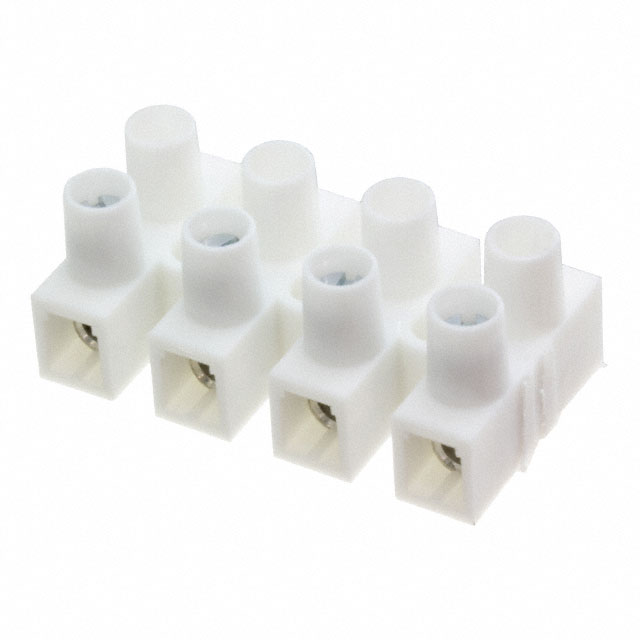

Altech Corporation HE42BU/04	24 AWG	10 AWG	20 A	8	Enclosed	Eurostyle Terminal Strip Pluggable	0.394 in	2	300 VAC/DC	Closed	Screws	White	4	UL94 V-0	-30 °C	125 °C	Chassis Panel	Steel	Blue Chromate	Nylon 6/6 PA66 Polyamide
Altech Corporation HE42BU/11	24 AWG	10 AWG	20 A	22	Enclosed	Eurostyle Terminal Strip	0.394 in	2	300 VAC/DC	Closed	Screws	White	11
Altech Corporation HE42BU/08	24 AWG	10 AWG	20 A	16	Enclosed	Eurostyle Terminal Strip Pluggable	0.394 in	2	300 VAC/DC	Closed	Screws	White	8	UL94 V-0	-30 °C	125 °C	Chassis Panel	Steel	Blue Chromate	Nylon 6/6 PA66 Polyamide
Altech Corporation HE42BU/07	24 AWG	10 AWG	20 A	14	Enclosed	Eurostyle Terminal Strip	0.394 in	2	300 VAC/DC	Closed	Screws	White	7
