2823409 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

30P,2MM,PL HDR,DRRT,2.8,SN,TB

Part	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Style	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Fastening Type	Mounting Type	Number of Positions	Voltage Rating	Connector Type	Shrouding	Number of Positions Loaded	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Contact Material	Termination	Insulation Height	Insulation Height	Contact Type	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Number of Positions	Contact Finish Thickness - Mating

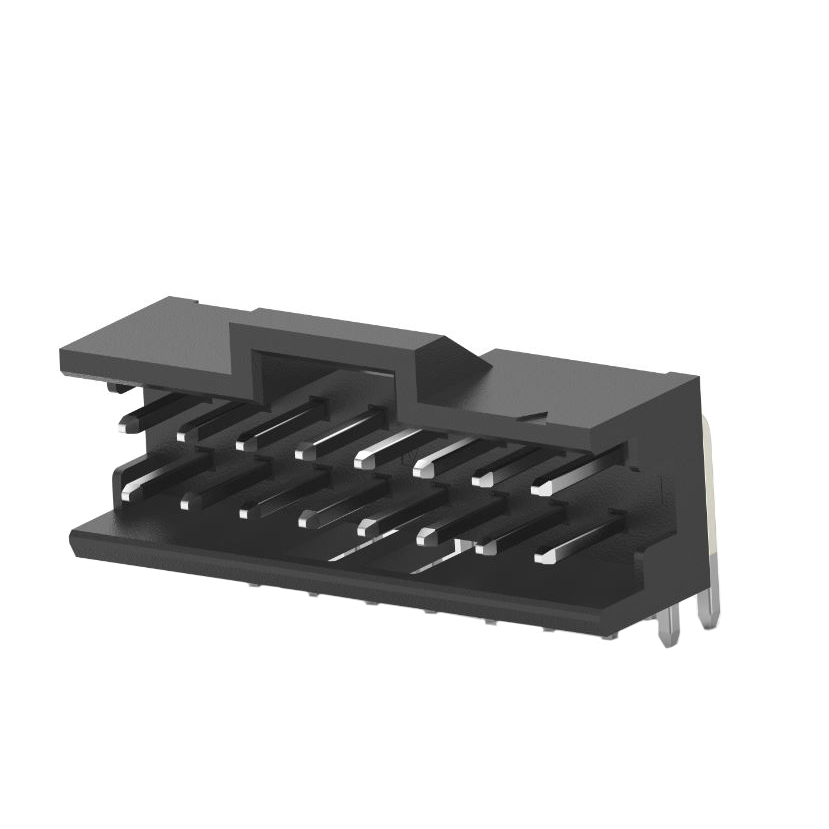

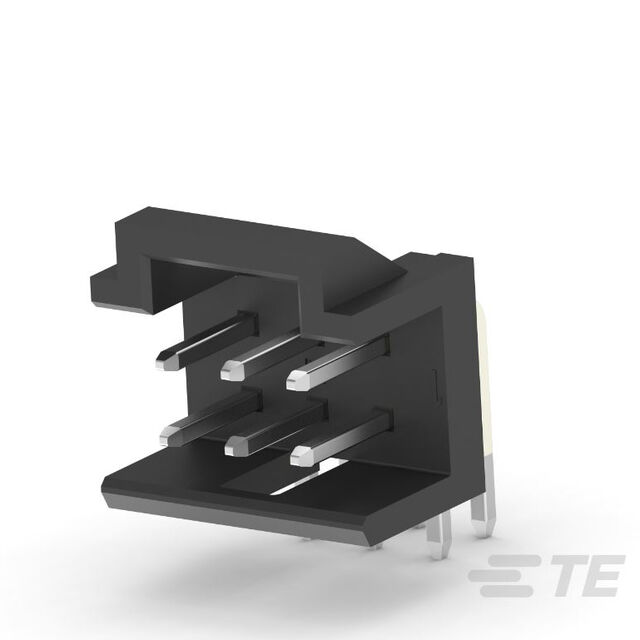

TE Connectivity Raychem Cable Protection 3-2823409-0	0.079 in	2 mm	Square	Board to Board Cable	Black	-40 °C	105 ░C	4 mm	0.157 in	Latch Holder	Through Hole Right Angle	30	125 VAC	Header	Shrouded - 2 Wall	All	2	0.3 µm	12 µin	0.11 in	2.8 mm	UL94 V-0	Phosphor Bronze	Solder	0.303 in	7.7 mm	Male Pin	Thermoplastic	0.079 in	2 mm	2 A	118.1 µin	3 µm	Tin

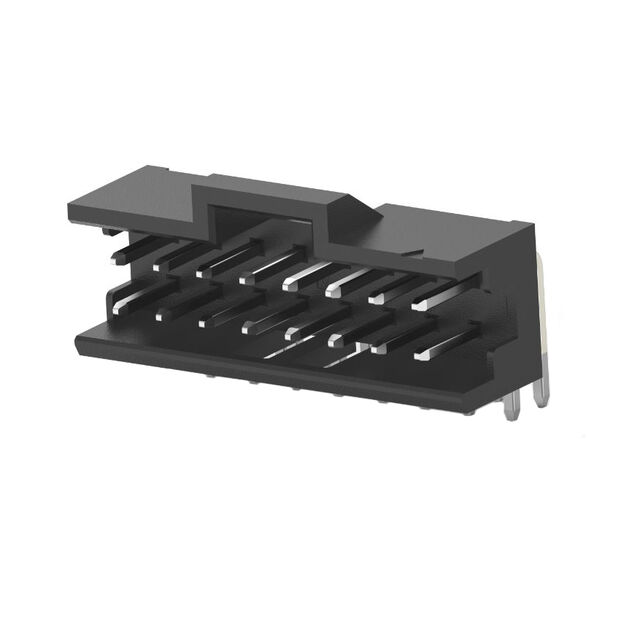

TE Connectivity Raychem Cable Protection 2-2823409-8	0.079 in	2 mm	Square	Board to Board Cable	Black	-40 °C	105 ░C	4 mm	0.157 in	Latch Holder	Through Hole Right Angle	28	125 VAC	Header	Shrouded - 2 Wall	All	2	0.3 µm	12 µin	0.11 in	2.8 mm	UL94 V-0	Phosphor Bronze	Solder	0.303 in	7.7 mm	Male Pin	Thermoplastic	0.079 in	2 mm	2 A	118.1 µin	3 µm	Tin

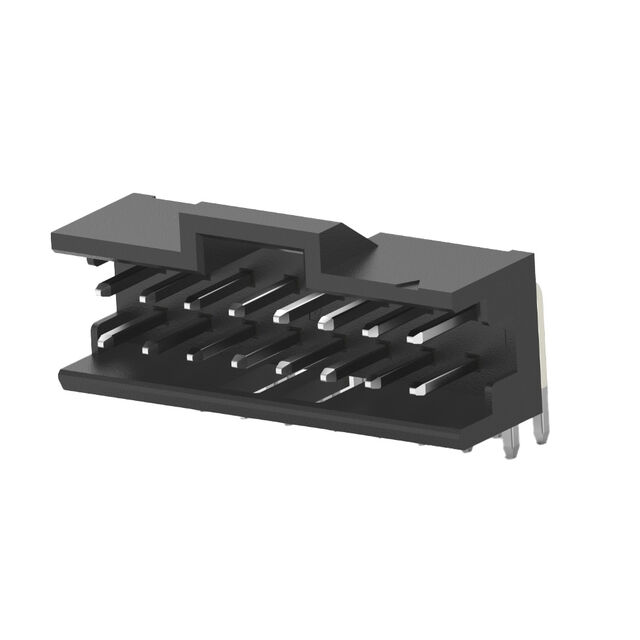

TE Connectivity Raychem Cable Protection 2-2823409-6	0.079 in	2 mm	Square	Board to Board Cable	Black	-40 °C	105 ░C	4 mm	0.157 in	Latch Holder	Through Hole Right Angle	26	125 VAC	Header	Shrouded - 2 Wall	All	2	0.3 µm	12 µin	0.11 in	2.8 mm	UL94 V-0	Phosphor Bronze	Solder	0.303 in	7.7 mm	Male Pin	Thermoplastic	0.079 in	2 mm	2 A	118.1 µin	3 µm	Tin
TE Connectivity Raychem Cable Protection 1-2823409-6	0.079 in	2 mm	Square	Board to Board Cable	Black	-40 °C	105 ░C	4 mm	0.157 in	Latch Holder	Through Hole Right Angle		125 VAC	Header	Shrouded - 2 Wall	All	2	0.3 µm	12 µin	0.11 in	2.8 mm	UL94 V-0	Phosphor Bronze	Solder	0.303 in	7.7 mm	Male Pin	Thermoplastic	0.079 in	2 mm	2 A	118.1 µin	3 µm	Tin	16

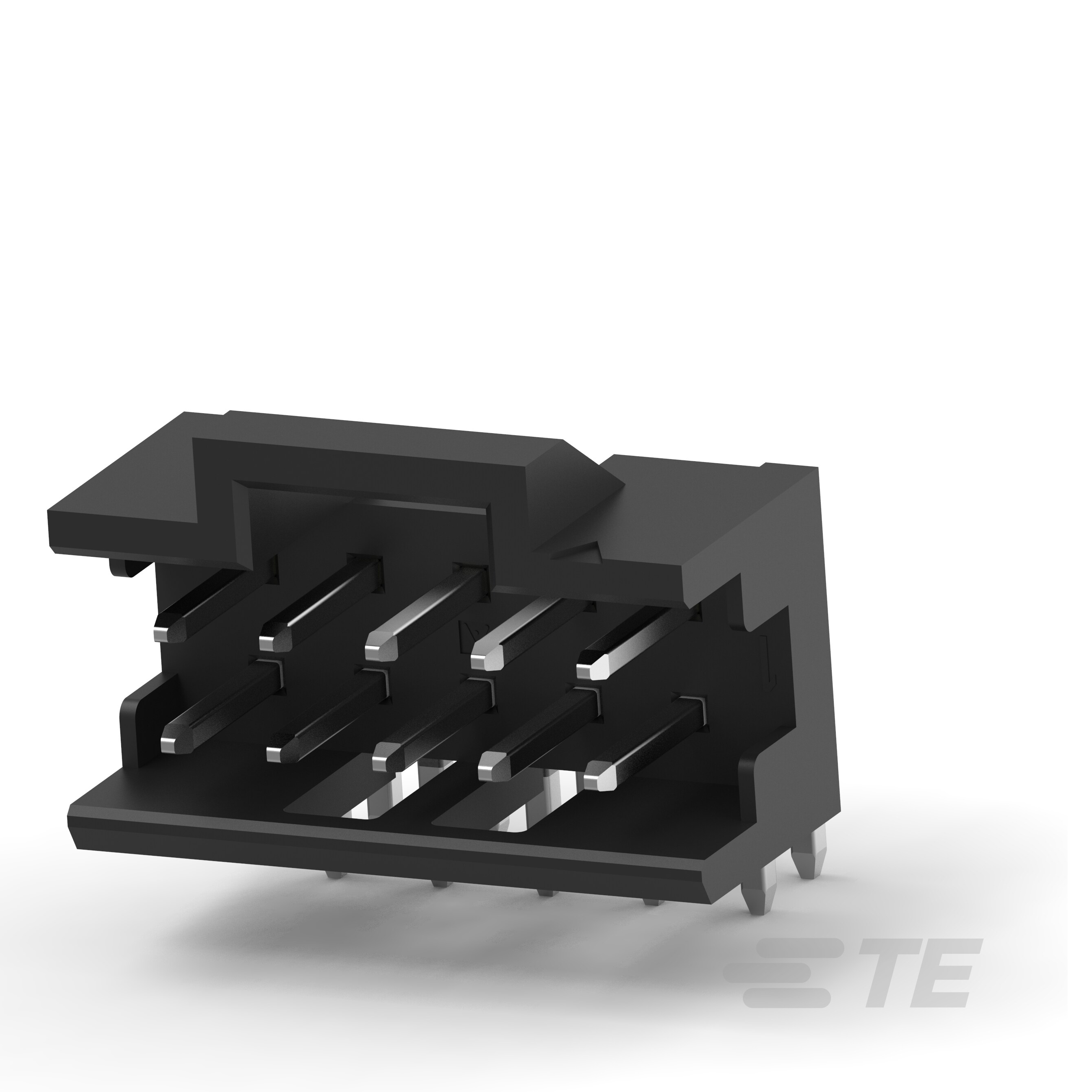

TE Connectivity Raychem Cable Protection 1-2823409-2	0.079 in	2 mm	Square	Board to Board Cable	Black	-40 °C	105 ░C	4 mm	0.157 in	Latch Holder	Through Hole Right Angle	12	125 VAC	Header	Shrouded - 2 Wall	All	2	0.3 µm	12 µin	0.11 in	2.8 mm	UL94 V-0	Phosphor Bronze	Solder	0.303 in	7.7 mm	Male Pin	Thermoplastic	0.079 in	2 mm	2 A	118.1 µin	3 µm	Tin

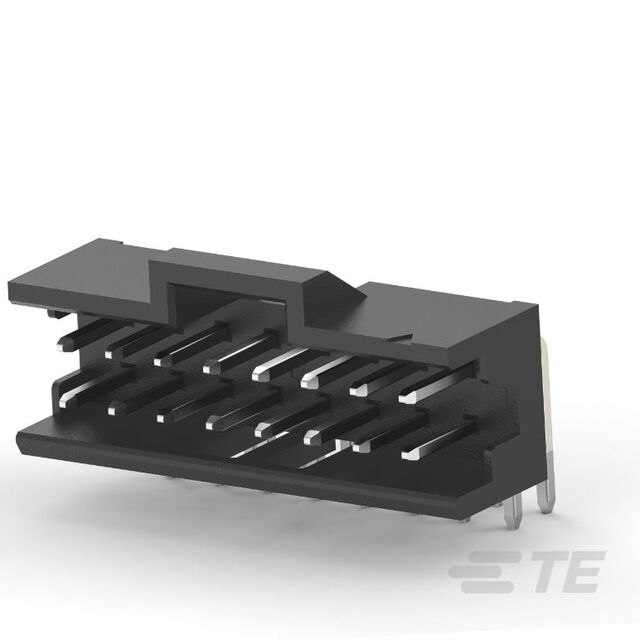

TE Connectivity Raychem Cable Protection 2-2823409-2	0.079 in	2 mm	Square	Board to Board Cable	Black	-40 °C	105 ░C	4 mm	0.157 in	Latch Holder	Through Hole Right Angle	22 positions	125 VAC	Header	Shrouded - 2 Wall	All	2	0.3 µm	12 µin	0.11 in	2.8 mm	UL94 V-0	Phosphor Bronze	Solder	0.303 in	7.7 mm	Male Pin	Thermoplastic	0.079 in	2 mm	2 A	3 Ám		Tin		118.1 Áin

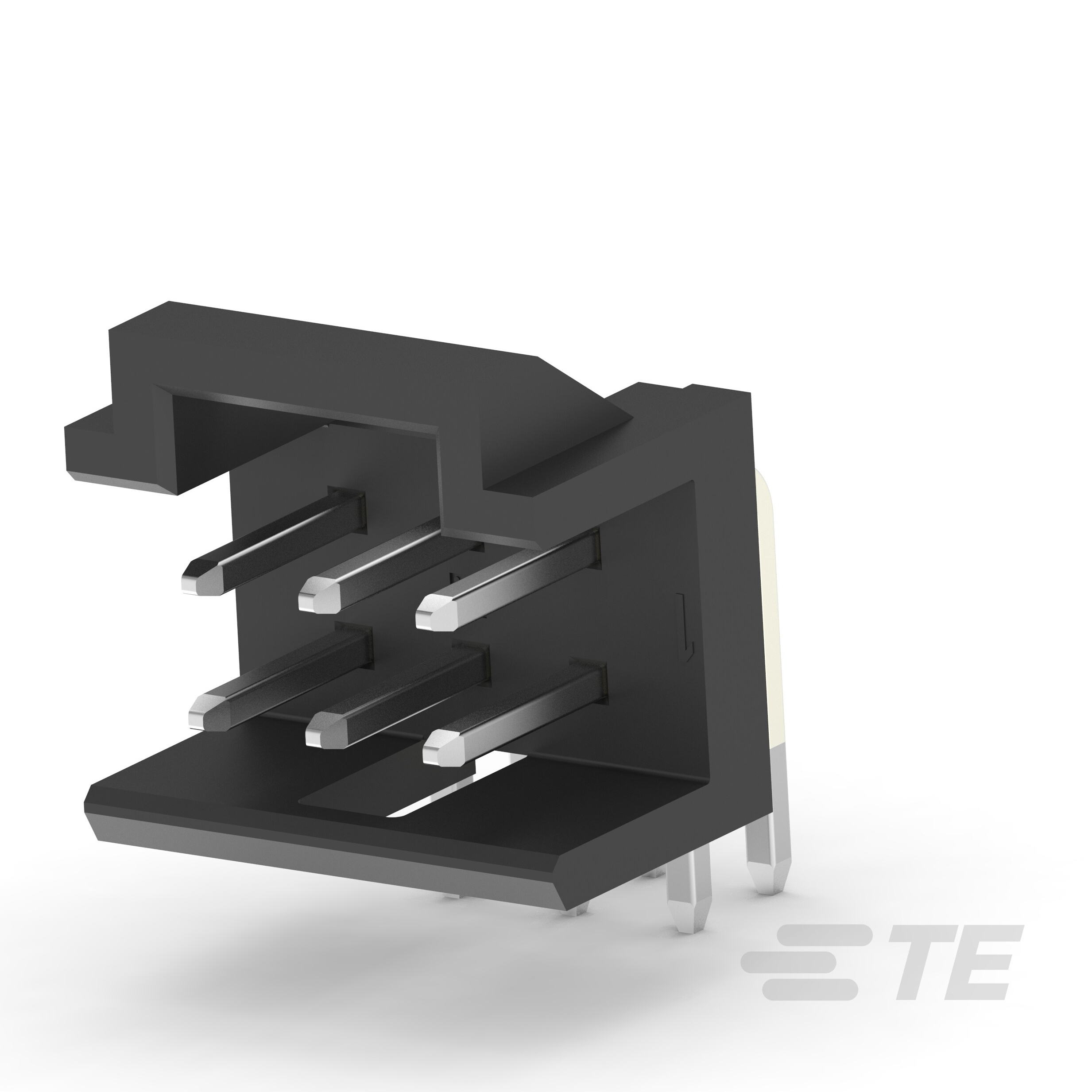

TE Connectivity Raychem Cable Protection 2823409-8	0.079 in	2 mm	Square	Board to Board Cable	Black	-40 °C	105 ░C	4 mm	0.157 in	Latch Holder	Through Hole Right Angle	8	125 VAC	Header	Shrouded - 2 Wall	All	2	0.3 µm	12 µin	0.11 in	2.8 mm	UL94 V-0	Phosphor Bronze	Solder	0.303 in	7.7 mm	Male Pin	Thermoplastic	0.079 in	2 mm	2 A	118.1 µin	3 µm	Tin
TE Connectivity Raychem Cable Protection 2823409-6	0.079 in	2 mm	Square	Board to Board Cable	Black	-40 °C	105 ░C	4 mm	0.157 in	Latch Holder	Through Hole Right Angle	6	125 VAC	Header	Shrouded - 2 Wall	All	2	0.3 µm	12 µin	0.11 in	2.8 mm	UL94 V-0	Phosphor Bronze	Solder	0.303 in	7.7 mm	Male Pin	Thermoplastic	0.079 in	2 mm	2 A	118.1 µin	3 µm	Tin

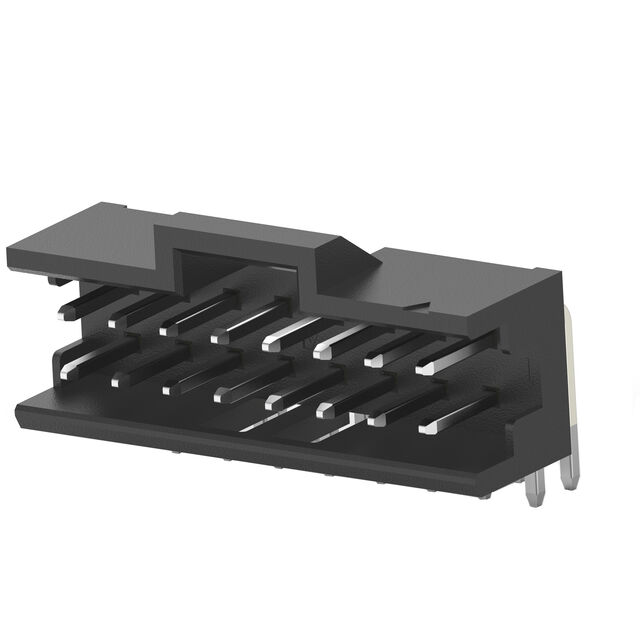

TE Connectivity Raychem Cable Protection 1-2823409-8	0.079 in	2 mm	Square	Board to Board Cable	Black	-40 °C	105 ░C	4 mm	0.157 in	Latch Holder	Through Hole Right Angle	18	125 VAC	Header	Shrouded - 2 Wall	All	2	0.3 µm	12 µin	0.11 in	2.8 mm	UL94 V-0	Phosphor Bronze	Solder	0.303 in	7.7 mm	Male Pin	Thermoplastic	0.079 in	2 mm	2 A	118.1 µin	3 µm	Tin
TE Connectivity Raychem Cable Protection 2-2823409-4	0.079 in	2 mm	Square	Board to Board Cable	Black	-40 °C	105 ░C	4 mm	0.157 in	Latch Holder	Through Hole Right Angle	24	125 VAC	Header	Shrouded - 2 Wall	All	2	0.3 µm	12 µin	0.11 in	2.8 mm	UL94 V-0	Phosphor Bronze	Solder	0.303 in	7.7 mm	Male Pin	Thermoplastic	0.079 in	2 mm	2 A	118.1 µin	3 µm	Tin
