10007607 Series

Catalog

CONN HEADER R/A 6POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Contact Finish - Post	Termination	Contact Shape	Mounting Type	Fastening Type	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Contact Material	Shrouding	Number of Rows [custom]	Insulation Color	Insulation Material	Number of Positions Loaded	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post

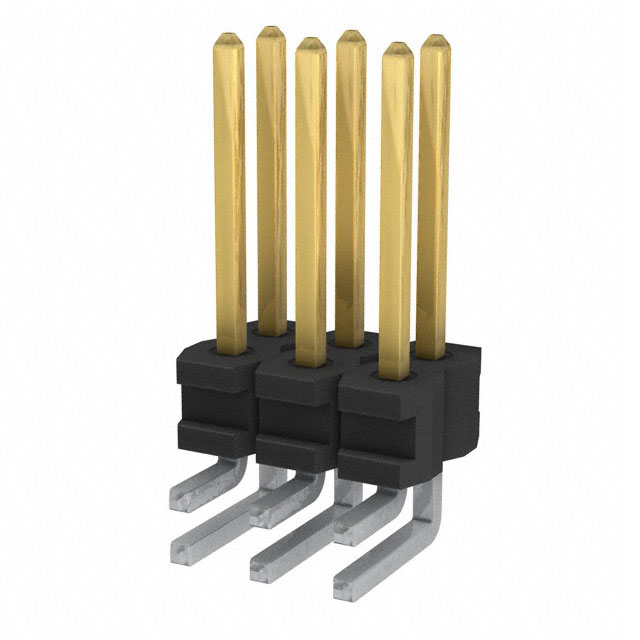

Amphenol ICC (FCI) 10007607-802-06LF	78.7 µin	2 µm	Tin	Solder	Square	Right Angle Through Hole	Push-Pull	Header Breakaway	1.6 mm	0.063 in	3 A	Phosphor Bronze	Unshrouded	2	Black	Thermoplastic	All	6	0.38 µm	15 µin	UL94 V-0	Male Pin	130 °C	-65 ░C	0.1 in	2.54 mm	0.1 "	2.54 mm	Gold	0.335 in	8.51 mm

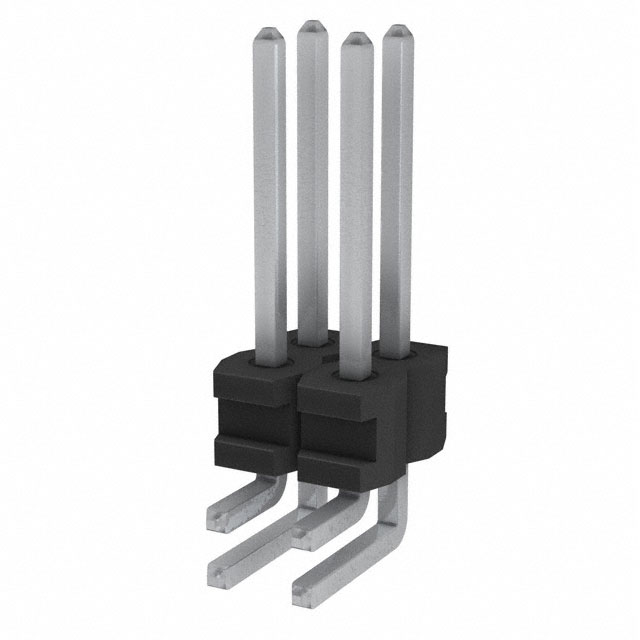

Amphenol ICC (FCI) 10007607-402-04LF	78.7 µin	2 µm	Tin	Solder	Square	Right Angle Through Hole	Push-Pull	Header Breakaway	1.6 mm	0.063 in	3 A	Phosphor Bronze	Unshrouded	2	Black	Thermoplastic	All	4	2 µm	78.7 µin	UL94 V-0	Male Pin	130 °C	-65 ░C	0.1 in	2.54 mm	0.1 "	2.54 mm		0.335 in	8.51 mm

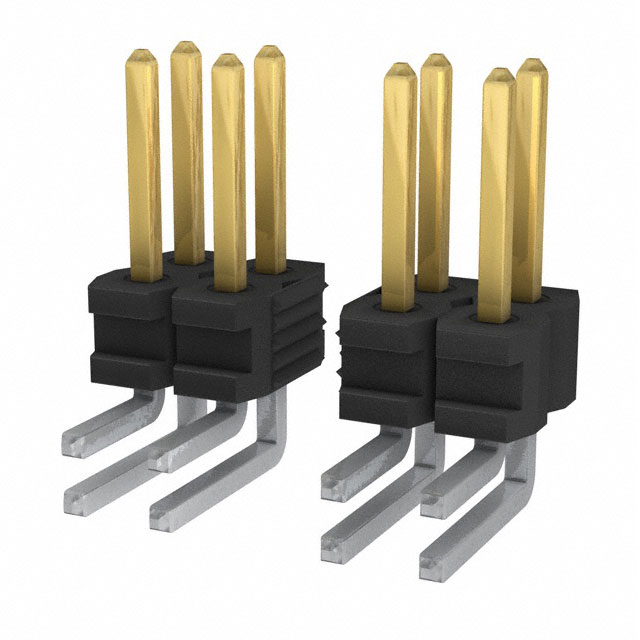

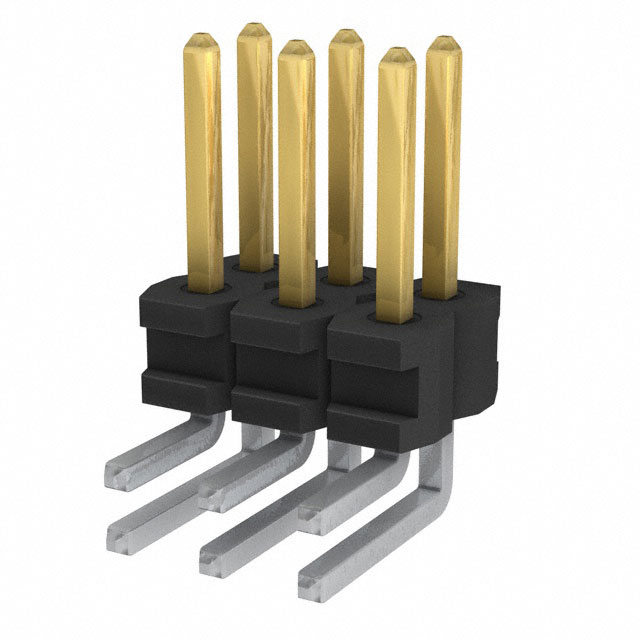

Amphenol ICC (FCI) 10007607-801-06LF	78.7 µin	2 µm	Tin	Solder	Square	Right Angle Through Hole	Push-Pull	Header Breakaway			3 A	Phosphor Bronze	Unshrouded	2	Black	Thermoplastic	All	6	0.38 µm	15 µin	UL94 V-0	Male Pin	130 °C	-65 ░C	0.1 in	2.54 mm	0.1 "	2.54 mm	Gold	0.228 in	5.8 mm	2.5 mm	0.098 in

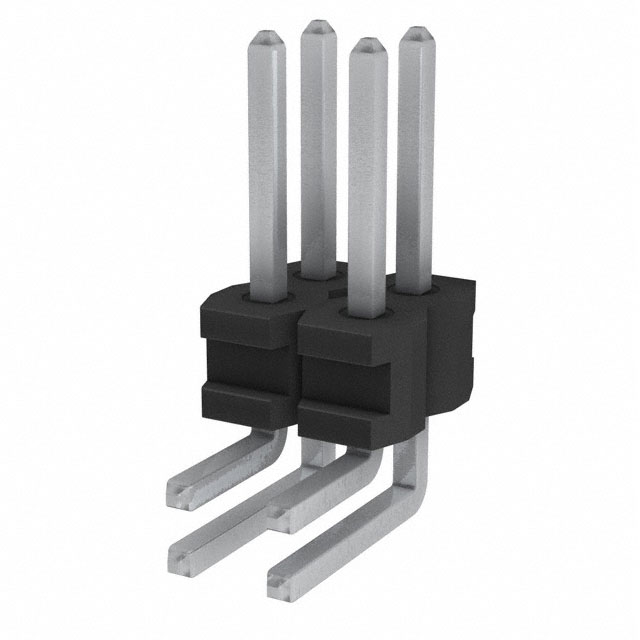

Amphenol ICC (FCI) 10007607-401-04LF	78.7 µin	2 µm	Tin	Solder	Square	Right Angle Through Hole	Push-Pull	Header Breakaway			3 A	Phosphor Bronze	Unshrouded	2	Black	Thermoplastic	All	4	2 µm	78.7 µin	UL94 V-0	Male Pin	130 °C	-65 ░C	0.1 in	2.54 mm	0.1 "	2.54 mm		0.228 in	5.8 mm	2.5 mm	0.098 in
Amphenol ICC (FCI) 10007607-801-36LF	78.7 µin	2 µm	Tin	Solder	Square	Right Angle Through Hole	Push-Pull	Header Breakaway			3 A	Phosphor Bronze	Unshrouded	2	Black	Thermoplastic	All	36	0.38 µm	15 µin	UL94 V-0	Male Pin	130 °C	-65 ░C	0.1 in	2.54 mm	0.1 "	2.54 mm	Gold	0.228 in	5.8 mm	2.5 mm	0.098 in
