44AM1141 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

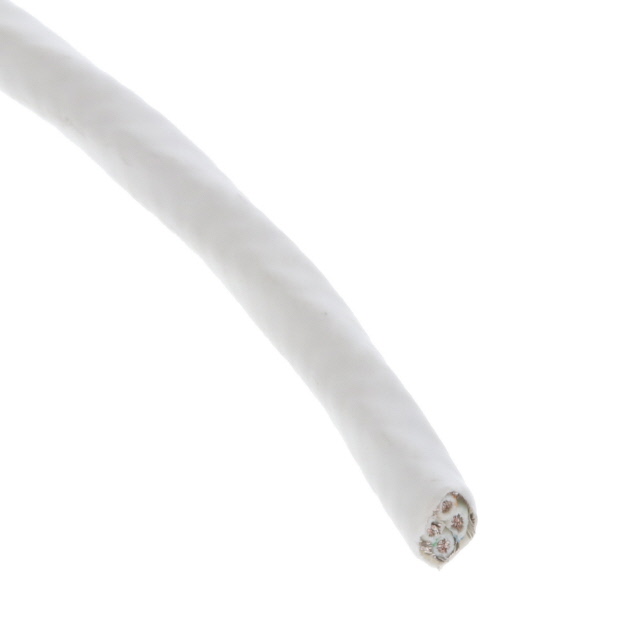

CABLE 4COND 24AWG WHITE SHLD
| Part | Shield Coverage | Voltage | Number of Conductors | Operating Temperature | Wire Gauge | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Conductor Material | Shield Type | Length | Length | Length [x] | Length [x] | Conductor Strand [custom] | Conductor Strand |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine | 85 % | 600 V | 4 | 150 °C | 24 AWG | Multi-Conductor | 0.127 mm | 0.005 in | Copper Tinned | Polyvinylidene Fluoride (PVDF) | 3.3 mm | 0.13 in | Polyvinylidene Fluoride (PVDF) | Copper Tinned | Braid | ||||||
 TE Connectivity Aerospace, Defense and Marine | 85 % | 600 V | 4 | 150 °C | 22 AWG | Multi-Conductor | 0.254 mm | 0.01 in | Copper Tinned | Polyvinylidene Fluoride (PVDF) | 3.73 mm | 0.147 in | Polyvinylidene Fluoride (PVDF) | Copper Tinned | Braid | 1 ft 5 ' | 1.52 m 15.24 m 300 mm | 7.62 m 30.5 m 152.4 m | 25 ft 50 ft 100 ft 500 ' | 19 Strands | 34 AWG |
