V7-1C3 Series

Catalog

SWITCH PLUNGER SPST 15A QC

Part	Termination Style	Operating Position	Operating Position	Current Rating (Amps)	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Overtravel [custom]	Overtravel [custom]	Pretravel	Pretravel	Mounting Type	Switch Function	Actuator Type	Mechanical Life	Operating Force	Differential Travel [x]	Differential Travel [x]	Voltage Rating - AC	Circuit	Release Force	Electrical Life	Differential Travel	Differential Travel
Honeywell Sensing and Productivity Solutions V7-1C37D8-000-1
Honeywell Sensing and Productivity Solutions V7-1C33E9	Quick Connect - 0.250" (6.3mm)	14.7 mm	0.579 in	15 A 500 mA	125 VDC	85 °C	-40 C	1.27 mm	0.05 "	1.2 mm	0.047 in	Chassis Mount	On-Mom	Round (Pin Plunger)	10000000 Cycles	150 gf	0.01 in	0.25 mm	125 V	SPST-NC

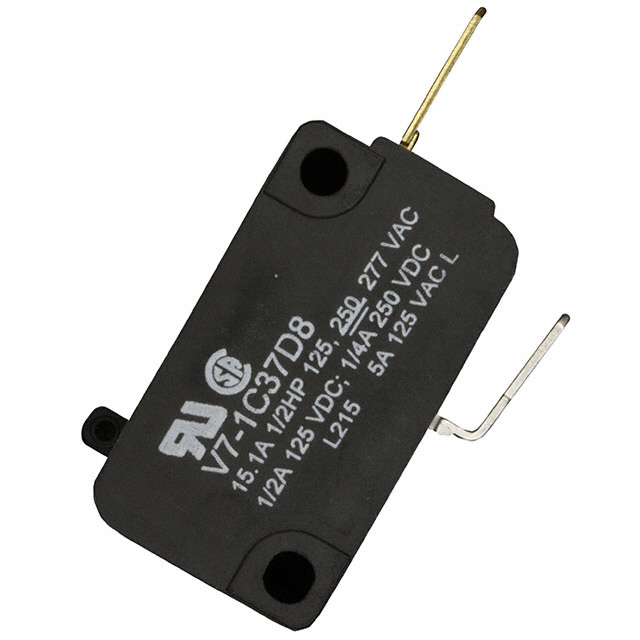

Honeywell Sensing and Productivity Solutions V7-1C37D8	Quick Connect	14.7 mm	0.579 in	15 A 500 mA	125 VDC	85 °C	-40 C	1.27 mm	0.05 "	1.2 mm	0.047 in	Chassis Mount	On-Mom	Round (Pin Plunger)	10000000 Cycles	150 gf	0.01 in	0.25 mm	125 V	SPST-NC	25 gf	100000 Cycles
Honeywell Sensing and Productivity Solutions V7-1C33D855-002	Quick Connect			15 A 500 mA	125 VDC	85 °C	-40 C					Chassis Mount	On-Mom	Lever Straight	10000000 Cycles	160 gf			125 V	SPST-NC
Honeywell Sensing and Productivity Solutions V7-1C37D855-002	Quick Connect	15.2 mm	0.6 in	15 A 500 mA	125 VDC	85 °C	-40 C	0.9 mm	0.035 "	1.5 mm	0.06 in	Chassis Mount	On-Mom	Lever Straight	10000000 Cycles	160 gf			125 V	SPST-NC	15 gf	100000 Cycles	0.015 in	0.38 mm
