68021 Series

Catalog

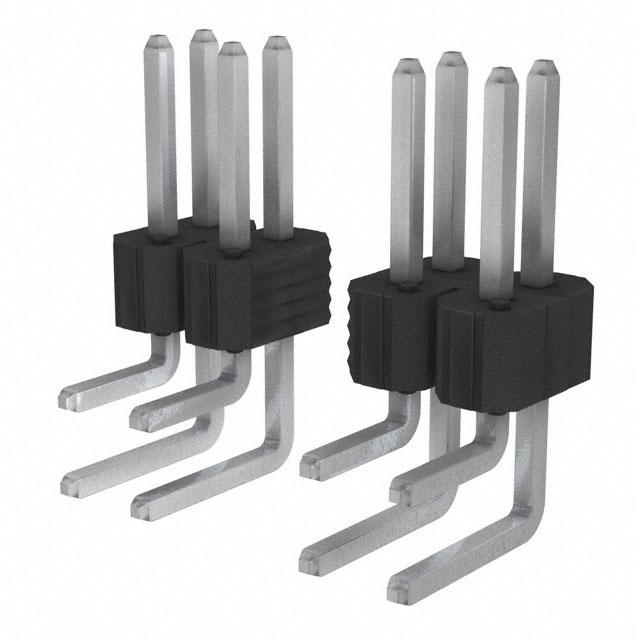

CONN HEADER R/A 14POS 2.54MM

...

Part	Contact Length - Post [x]	Contact Length - Post [x]	Mounting Type	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Current Rating (Amps)	Fastening Type	Contact Shape	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions Loaded	Number of Positions	Voltage Rating	Contact Material	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Shrouding	Contact Finish - Mating	Contact Type	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Contact Finish - Post
Amphenol ICC (FCI) 68021-114	0.12 in	3.05 mm	Through Hole Right Angle	Solder	2.54 mm	0.1 in	Header	30 Áin	0.76 Ám	2	3 A	Push-Pull	Square	0.23 in	5.84 mm	All	14	110 VDC	Phosphor Bronze	0.1 in	2.54 mm	4.83 mm	0.19 in	Unshrouded	Gold or Gold GXT™	Male Pin	UL94 V-0	125 °C	-65 ░C	Black
Amphenol ICC (FCI) 68021-414HLF	0.12 in	3.05 mm	Through Hole Right Angle	Solder	2.54 mm	0.1 in	Header	100 çin	2.54 çm	2	3 A	Push-Pull	Square	0.23 in	5.84 mm	All	14	110 VDC	Phosphor Bronze	0.1 in	2.54 mm	4.83 mm	0.19 in	Unshrouded		Male Pin	UL94 V-0	125 °C	-65 ░C	Black	Tin
Amphenol ICC (FCI) 68021-304HLF	0.12 in	3.05 mm	Through Hole Right Angle	Solder	2.54 mm	0.1 in	Header	50 µin	1.27 µm	2	3 A	Push-Pull	Square	0.23 in	5.84 mm	All	4	110 VDC	Phosphor Bronze	0.1 in	2.54 mm	4.83 mm	0.19 in	Unshrouded	Gold or Gold GXT™	Male Pin	UL94 V-0	125 °C	-65 ░C	Black
Amphenol ICC (FCI) 68021-252HLF	0.12 in	3.05 mm	Through Hole Right Angle	Solder	2.54 mm	0.1 in	Header	15 µin	0.38 µm	2	3 A	Push-Pull	Square	0.23 in	5.84 mm	All	52	110 VDC	Phosphor Bronze	0.1 in	2.54 mm	4.83 mm	0.19 in	Unshrouded	Gold or Gold GXT™	Male Pin	UL94 V-0	125 °C	-65 ░C	Black
Amphenol ICC (FCI) 68021-172HLF	0.12 in	3.05 mm	Through Hole Right Angle	Solder	2.54 mm	0.1 in	Header	30 Áin	0.76 Ám	2	3 A	Push-Pull	Square	0.23 in	5.84 mm	All	72	110 VDC	Phosphor Bronze	0.1 in	2.54 mm	4.83 mm	0.19 in	Unshrouded	Gold or Gold GXT™	Male Pin	UL94 V-0	125 °C	-65 ░C	Black
Amphenol ICC (FCI) 68021-468HLF	0.12 in	3.05 mm	Through Hole Right Angle	Solder	2.54 mm	0.1 in	Header	100 çin	2.54 çm	2	3 A	Push-Pull	Square	0.23 in	5.84 mm	All	68	110 VDC	Phosphor Bronze	0.1 in	2.54 mm	4.83 mm	0.19 in	Unshrouded		Male Pin	UL94 V-0	125 °C	-65 ░C	Black	Tin
Amphenol ICC (FCI) 68021-164HLF	0.12 in	3.05 mm	Through Hole Right Angle	Solder	2.54 mm	0.1 in	Header	30 Áin	0.76 Ám	2	3 A	Push-Pull	Square	0.23 in	5.84 mm	All	64	110 VDC	Phosphor Bronze	0.1 in	2.54 mm	4.83 mm	0.19 in	Unshrouded	Gold or Gold GXT™	Male Pin	UL94 V-0	125 °C	-65 ░C	Black
Amphenol ICC (FCI) 68021-420HLF	0.12 in	3.05 mm	Through Hole Right Angle	Solder	2.54 mm	0.1 in	Header	100 çin	2.54 çm	2	3 A	Push-Pull	Square	0.23 in	5.84 mm	All	20	110 VDC	Phosphor Bronze	0.1 in	2.54 mm	4.83 mm	0.19 in	Unshrouded		Male Pin	UL94 V-0	125 °C	-65 ░C	Black	Tin
Amphenol ICC (FCI) 68021-210HLF	0.12 in	3.05 mm	Through Hole Right Angle	Solder	2.54 mm	0.1 in	Header	15 µin	0.38 µm	2	3 A	Push-Pull	Square	0.23 in	5.84 mm	All	10	110 VDC	Phosphor Bronze	0.1 in	2.54 mm	4.83 mm	0.19 in	Unshrouded	Gold or Gold GXT™	Male Pin	UL94 V-0	125 °C	-65 ░C	Black
Amphenol ICC (FCI) 68021-440HLF	0.12 in	3.05 mm	Through Hole Right Angle	Solder	2.54 mm	0.1 in	Header	100 çin	2.54 çm	2	3 A	Push-Pull	Square	0.23 in	5.84 mm	All	40	110 VDC	Phosphor Bronze	0.1 in	2.54 mm	4.83 mm	0.19 in	Unshrouded		Male Pin	UL94 V-0	125 °C	-65 ░C	Black	Tin
