TRG36A13 Series

Catalog

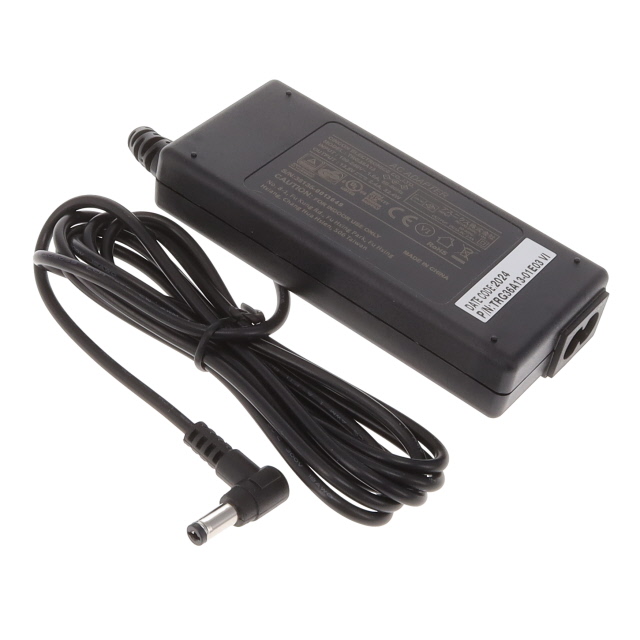

AC/DC DESKTOP ADAPTER 13.5V 32W

Part	Power (Watts)	Output Connector	Output Connector [diameter]	Output Connector [z]	Form	Voltage - Output	Approval Agency	Input Connector	Efficiency	Cord Length	Cord Length	Standard Number	Region Utilized	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Polarization	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Current - Output (Max) [Max]	No Load Power Consumption	Applications	Weight	Weight
Cincon Electronics Co. LTD TRG36A13-01E03 VI	32 W	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	Desktop (Class II)	13.5 V	CE cULus FCC GS PSE TUV	IEC 320-C8	CoC Tier 2 Level VI	70.9 "	1.8 m	60950-1 62368-1	International	264 VAC	90 VAC	111 mm	51 mm	4.37 in	0.89 "	22.5 mm	2.01 "	Positive Center	-20 ░C	60 °C	Cord (Sold Separately)	2.4 A	75 mW	ITE (Commercial)
Cincon Electronics Co. LTD TRG36A13-11E03 VI	32 W	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	Desktop (Class II)	13.5 V	CE cULus FCC GS PSE TUV	IEC 320-C8	CoC Tier 2 Level VI	70.9 "	1.8 m		International	264 VAC	90 VAC	111 mm	51 mm	4.37 in	0.89 "	22.5 mm	2.01 "	Positive Center	-20 ░C	60 °C	Cord (Sold Separately)	2.4 A	75 mW	ITE (Commercial)	190.06 g	0.419 lb
