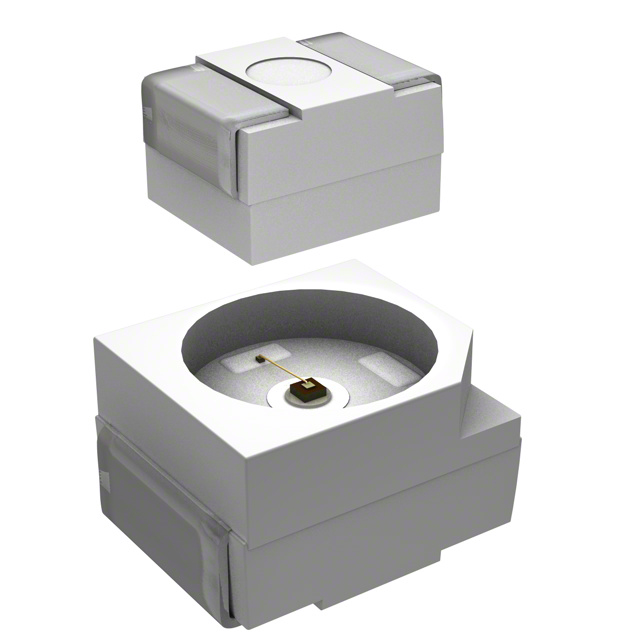

QTLP670 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

LED RED CLEAR 2PLCC SMD

Part	Viewing Angle	Current - Test	Configuration	Lens Transparency	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Height (Max) [z]	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Lens Size [diameter]	Mounting Type	Wavelength - Peak	Color	Package / Case	Millicandela Rating	Lens Style	Lens Color	Wavelength - Dominant	Current - Test [custom]	Current - Test [custom]	Wavelength - Peak	Lens Size [x]	Lens Size [y]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]
Everlight Electronics Co Ltd QTLP670C9TR	120 °	20 mA	Standard	Clear	1.9 V	645 nm	2.1 mm	2-PLCC	2.8 mm	3.2 mm	2.4 mm Dia	Surface Mount	660 nm	Red	2-PLCC	40 mcd	Round with Flat Top	Colorless
Everlight Electronics Co Ltd QTLP670C74TR	120 °		Independent	Clear	1.9 V 2.1 V		2.1 mm	4-PLCC	2.8 mm	3.2 mm	2.4 mm Dia	Surface Mount		Green Red	4-PLCC	20 mcd 25 mcd	Round with Flat Top	Colorless	570nm Green 645nm Red	20 mA	20 mA	565nm Green 660nm Red
Everlight Electronics Co Ltd QTLP670C7TR	120 °	20 mA	Standard	Clear	1.9 V	645 nm	2.1 mm	2-PLCC	2.8 mm	3.2 mm	2.4 mm Dia	Surface Mount	660 nm	Red	2-PLCC	40 mcd	Round with Flat Top	Colorless
Everlight Electronics Co Ltd QTLP670CB_7697D	120 °	20 mA	Standard	Clear	3.8 V	465 nm	2.1 mm	2-PLCC	2.8 mm	3.2 mm	2.4 mm Dia	Surface Mount	430 nm	Blue	2-PLCC	30 mcd	Round with Flat Top	Colorless
Everlight Electronics Co Ltd QTLP670CRYTR	140 °	20 mA 20 mA	Independent	Clear	2 V 2 V		2.1 mm	4-PLCC	2.8 mm	3.2 mm		Surface Mount	590 nm 630 nm	Red Yellow	4-PLCC	35 mcd 35 mcd	Rectangle with Flat Top	Colorless	589nm Yellow 624nm Red				2 mm	2.7 mm
Everlight Electronics Co Ltd QTLP670C34TR	120 °	20 mA 20 mA	Independent	Clear		570 nm 590 nm	2.1 mm	4-PLCC	2.8 mm	3.2 mm	2.4 mm Dia	Surface Mount	565 nm 585 nm	Green Yellow	4-PLCC	5 mcd 25 mcd	Round with Flat Top	Colorless							2.1 V	2 V
Everlight Electronics Co Ltd QTLP670C3TR	120 °	20 mA	Standard	Clear	2 V	590 nm	2.1 mm	2-PLCC	2.8 mm	3.2 mm	2.4 mm Dia	Surface Mount	585 nm	Yellow	2-PLCC	10 mcd	Round with Flat Top	Colorless
Everlight Electronics Co Ltd QTLP670CYTR	120 °	20 mA	Standard	Clear	2 V	589 nm	2.1 mm	2-PLCC	2.8 mm	3.2 mm	2.4 mm Dia	Surface Mount	590 nm	Yellow	2-PLCC	65 mcd	Round with Flat Top	Colorless
Everlight Electronics Co Ltd QTLP670CSTR	120 °	20 mA	Standard	Clear	2 V	632 nm	2.1 mm	2-PLCC	2.8 mm	3.2 mm	2.4 mm Dia	Surface Mount	640 nm	Red	2-PLCC	65 mcd	Round with Flat Top	Colorless
Everlight Electronics Co Ltd QTLP670CBTR	120 °	20 mA	Standard	Clear	3.8 V	465 nm	2.1 mm	2-PLCC	2.8 mm	3.2 mm	2.4 mm Dia	Surface Mount	430 nm	Blue	2-PLCC	30 mcd	Round with Flat Top	Colorless
