046112 Series

Manufacturer: Molex

Catalog

CONN RCPT LPHPOWER 4POS PCB

Part	Termination	Number of Positions	Number of Positions Loaded	Color	Number of Rows	Connector Type	Contact Finish	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Layout, Typical	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Material Flammability Rating	Features
Molex 0461120401	Press-Fit	4	All	Black	2	Receptacle Outer Shroud Contacts	Gold	12 mm	0.472 in	0.76 Ám	30 Áin	4 Power	LPHPower	-40 °C	105 ░C	Through Hole	UL94 V-0

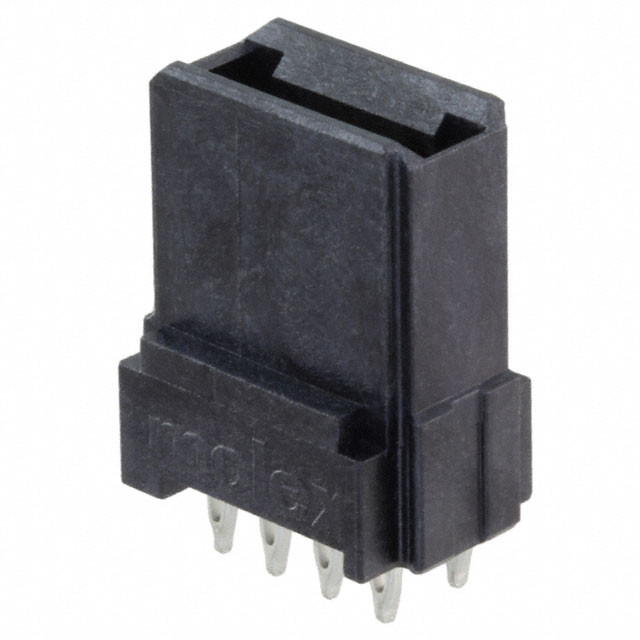

Molex 0461120201	Press-Fit	2	All	Black	2	Receptacle Outer Shroud Contacts	Gold	12 mm	0.472 in	0.76 Ám	30 Áin	2 Power	LPHPower	-40 °C	105 ░C	Through Hole	UL94 V-0

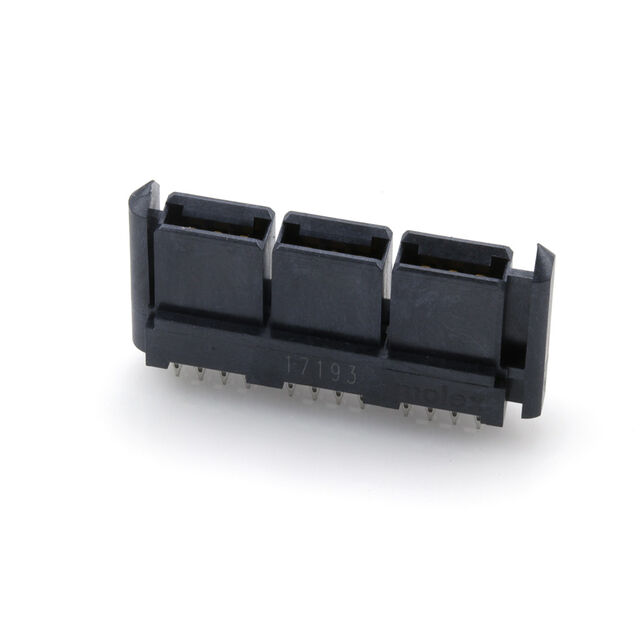

Molex 0461120603	Press-Fit	6	All	Black	2	Receptacle Outer Shroud Contacts	Gold	12 mm	0.472 in	0.76 Ám	30 Áin	6 Power	LPHPower	-40 °C	105 ░C	Through Hole	UL94 V-0	Guide Pin
Molex 0461120601	Press-Fit	6	All	Black	2	Receptacle Outer Shroud Contacts	Gold	12 mm	0.472 in	0.76 Ám	30 Áin	6 Power	LPHPower	-40 °C	105 ░C	Through Hole	UL94 V-0
Molex 0461120203	Press-Fit	2	All	Black	2	Receptacle Outer Shroud Contacts	Gold	12 mm	0.472 in	0.76 Ám	30 Áin	2 Power	LPHPower	-40 °C	105 ░C	Through Hole	UL94 V-0	Guide Pin
Molex 0461121401	Press-Fit	14	All	Black	2	Receptacle Outer Shroud Contacts	Gold	12 mm	0.472 in	0.76 Ám	30 Áin	14 Power	LPHPower	-40 °C	105 ░C	Through Hole	UL94 V-0
