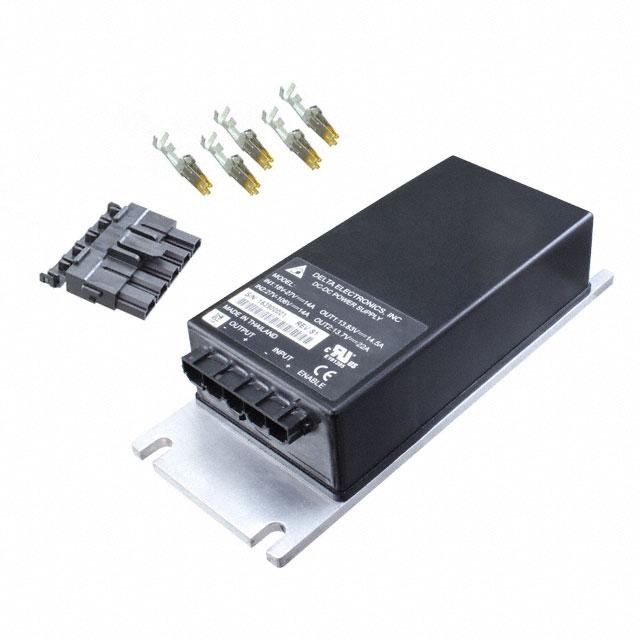

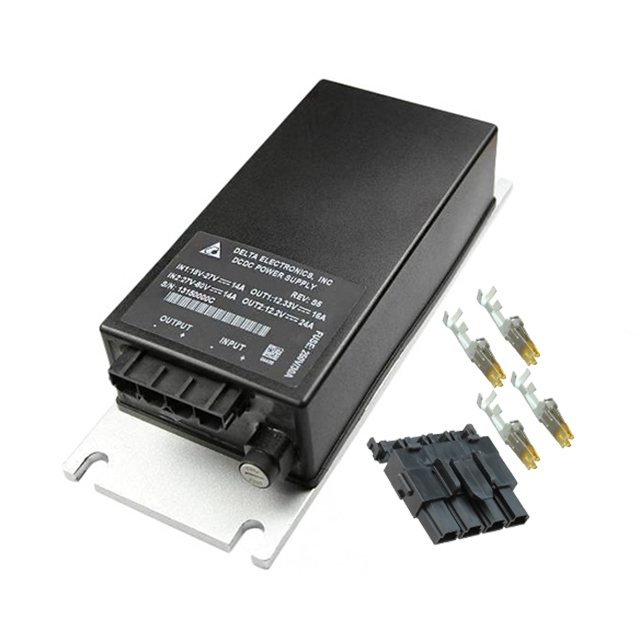

B70SR Series
Manufacturer: Delta Electronics
Beta
⌘K
DC/DC CONVERTER 13.7V 300W
| Part | Voltage - Output 1 | Mounting Type | Efficiency | Number of Outputs | Voltage - Input (Max) [Max] | Type | Voltage - Input (Min) [Min] | Voltage - Isolation | Current - Output (Max) [Max] | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Size / Dimension | Size / Dimension | Size / Dimension | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 13.7 V | Chassis Mount | 90.2 % | 1 | 106 V | Enclosed | 36 V | 2250 VDC | 22 A | ITE (Commercial) | -40 C | 75 ░C | 300 W | 2.99 in 75.9 mm | 7.48 in 190 mm | 1.73 in 43.9 mm | CE |
 Delta Electronics | 12.4 V | Chassis Mount | 90 % | 1 | 106 V | Enclosed | 36 V | 2250 VDC | 24 A | ITE (Commercial) | -40 C | 75 ░C | 298 W | 2.99 in 75.9 mm | 7.48 in 190 mm | 1.73 in 43.9 mm | CE |
Delta Electronics | 24 V | Chassis Mount | 92.5 % | 1 | 106 V | Enclosed | 36 V | 2250 VDC | 12.5 A | ITE (Commercial) | -40 C | 75 ░C | 300 W | 2.99 in 75.9 mm | 7.48 in 190 mm | 1.73 in 43.9 mm | CE |
