MCX7-P Series
Manufacturer: Samtec Inc.
Beta
⌘K
CONN MCX JACK R/A 75 OHM SOLDER
| Part | Contact Termination | Fastening Type | Mounting Type | Dielectric Material | Frequency - Max [Max] | Number of Ports | Impedance | Voltage Rating | Cable Group | Shield Termination | Connector Style | Connector Type | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Body Material | Housing Color | Center Contact Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

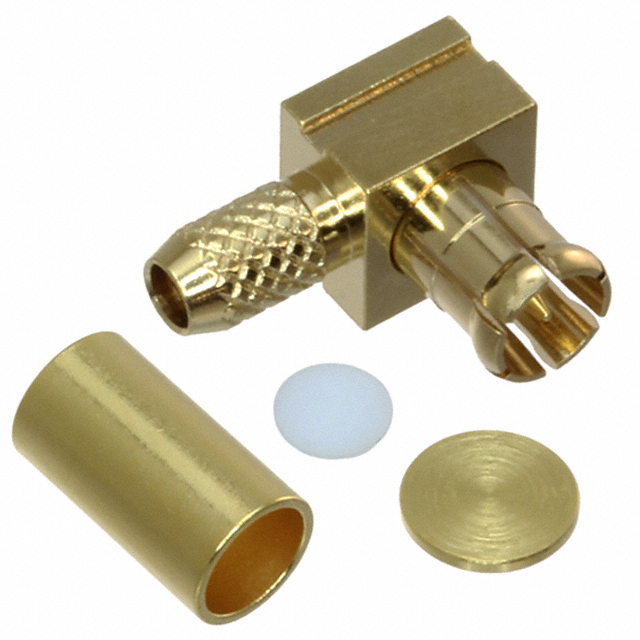

 Samtec Inc. | Solder | Snap-On | Free Hanging (In-Line) Right Angle | Polytetrafluoroethylene (PTFE) | 4.5 GHz | 1 | 75 Ohms | 170 V | RG-179 | Crimp | MCX | Male Pin Plug | Gold | 125 °C | -65 ░C | Brass | Brass | Gold | Gold |

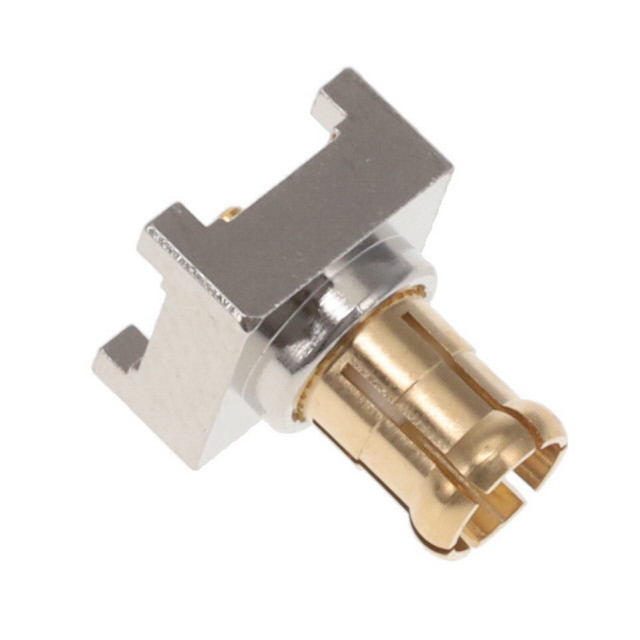

 Samtec Inc. | Solder | Snap-On | Surface Mount | Polytetrafluoroethylene (PTFE) | 6000 MHz | 1 | 75 Ohms | 170 V | Solder | MCX | Male Pin Plug | Gold | 125 °C | -65 ░C | Copper Alloy | Brass | Gold | Gold |
