070246 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 16POS 2.54MM

Part	Mounting Type	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating [x]	Number of Positions	Applications	Features	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Style	Number of Rows	Contact Type	Insulation Height	Insulation Height	Insulation Color	Material Flammability Rating	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Contact Material	Connector Type	Shrouding	Contact Finish - Mating	Number of Positions
Molex 0702461622	Through Hole	Square	74.8 Áin	1.9 Ám	Push-Pull	Tin-Lead	6.1 mm	0.24 in	16	Automotive General Purpose Lighting Medical Telecommunications	Keying Slot	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	0.135 in	3.43 mm	All	Board to Cable/Wire	2	Male Pin	0.365 in	9.27 mm	Black	UL94 V-0	Solder	30 Áin	0.76 Ám	12.7 mm	0.5 "	Phosphor Bronze	Header	Shrouded - 4 Wall	Gold

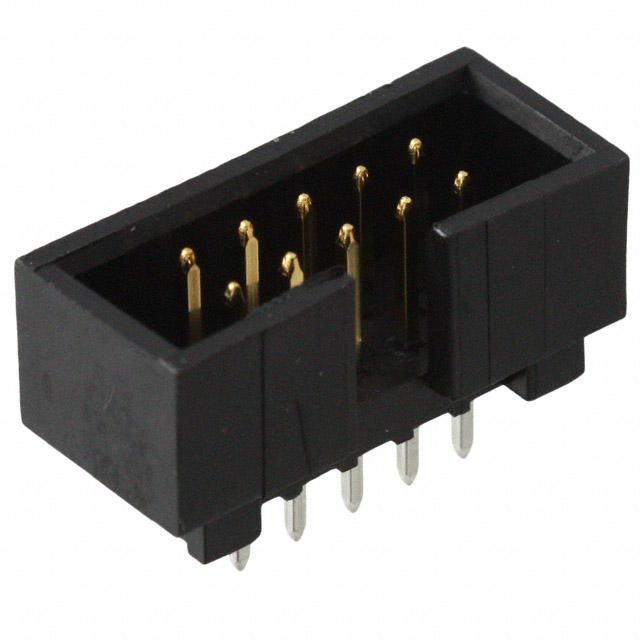

Molex 0702461001	Through Hole	Square	74.8 Áin	1.9 Ám	Push-Pull	Tin	6.1 mm	0.24 in		Automotive General Purpose Lighting Medical Telecommunications	Keying Slot	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	0.1 in	2.54 mm	0.135 in	3.43 mm	All	Board to Cable/Wire	2	Male Pin	0.365 in	9.27 mm	Black	UL94 V-0	Solder	15 µin	0.38 µm	12.7 mm	0.5 "	Phosphor Bronze	Header	Shrouded - 4 Wall	Gold	10
Molex 0702466401	Through Hole	Square	74.8 Áin	1.9 Ám	Push-Pull	Tin	6.1 mm	0.24 in		Automotive General Purpose Lighting Medical Telecommunications	Keying Slot	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	0.135 in	3.43 mm	All	Board to Cable/Wire	2	Male Pin	0.365 in	9.27 mm	Black	UL94 V-0	Solder	15 µin	0.38 µm	12.7 mm	0.5 "	Phosphor Bronze	Header	Shrouded - 4 Wall	Gold	64
Molex 0702464421	Through Hole	Square	74.8 Áin	1.9 Ám	Push-Pull	Tin-Lead	6.1 mm	0.24 in		Automotive General Purpose Lighting Medical Telecommunications	Keying Slot	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	0.135 in	3.43 mm	All	Board to Cable/Wire	2	Male Pin	0.365 in	9.27 mm	Black	UL94 V-0	Solder	15 µin	0.38 µm	12.7 mm	0.5 "	Phosphor Bronze	Header	Shrouded - 4 Wall	Gold	44
Molex 0702460801	Through Hole	Square	74.8 Áin	1.9 Ám	Push-Pull	Tin	6.1 mm	0.24 in		Automotive General Purpose Lighting Medical Telecommunications	Keying Slot	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	0.1 in	2.54 mm	0.135 in	3.43 mm	All	Board to Cable/Wire	2	Male Pin	0.365 in	9.27 mm	Black	UL94 V-0	Solder	15 µin	0.38 µm	12.7 mm	0.5 "	Phosphor Bronze	Header	Shrouded - 4 Wall	Gold	8

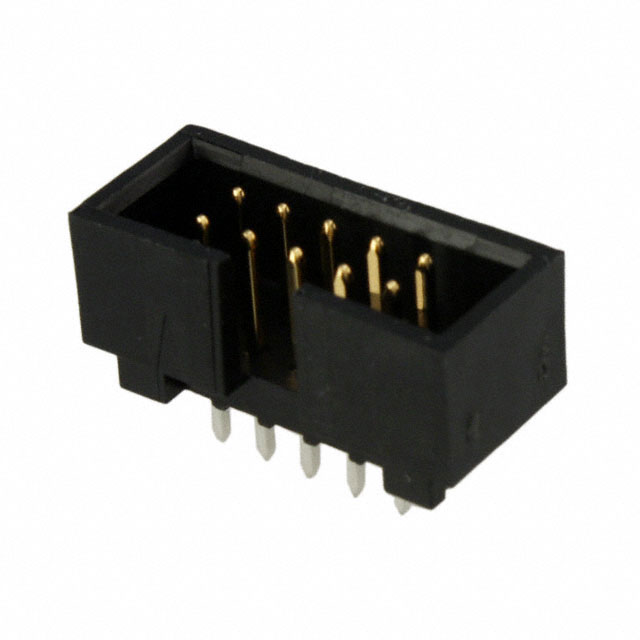

Molex 0702461002	Through Hole	Square	74.8 Áin	1.9 Ám	Push-Pull	Tin	6.1 mm	0.24 in		Automotive General Purpose Lighting Medical Telecommunications	Keying Slot	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	0.1 in	2.54 mm	0.135 in	3.43 mm	All	Board to Cable/Wire	2	Male Pin	0.365 in	9.27 mm	Black	UL94 V-0	Solder	30 Áin	0.76 Ám	12.7 mm	0.5 "	Phosphor Bronze	Header	Shrouded - 4 Wall	Gold	10
Molex 0702465021	Through Hole	Square	74.8 Áin	1.9 Ám	Push-Pull	Tin-Lead	6.1 mm	0.24 in		Automotive General Purpose Lighting Medical Telecommunications	Keying Slot	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	0.135 in	3.43 mm	All	Board to Cable/Wire	2	Male Pin	0.365 in	9.27 mm	Black	UL94 V-0	Solder	15 µin	0.38 µm	12.7 mm	0.5 "	Phosphor Bronze	Header	Shrouded - 4 Wall	Gold	50
Molex 0702462621	Through Hole	Square	74.8 Áin	1.9 Ám	Push-Pull	Tin-Lead	6.1 mm	0.24 in		Automotive General Purpose Lighting Medical Telecommunications	Keying Slot	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	0.135 in	3.43 mm	All	Board to Cable/Wire	2	Male Pin	0.365 in	9.27 mm	Black	UL94 V-0	Solder	15 µin	0.38 µm	12.7 mm	0.5 "	Phosphor Bronze	Header	Shrouded - 4 Wall	Gold	26
Molex 0702463002	Through Hole	Square	74.8 Áin	1.9 Ám	Push-Pull	Tin	6.1 mm	0.24 in		Automotive General Purpose Lighting Medical Telecommunications	Keying Slot	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	0.1 in	2.54 mm	0.135 in	3.43 mm	All	Board to Cable/Wire	2	Male Pin	0.365 in	9.27 mm	Black	UL94 V-0	Solder	30 Áin	0.76 Ám	12.7 mm	0.5 "	Phosphor Bronze	Header	Shrouded - 4 Wall	Gold	30
Molex 0702464022	Through Hole	Square	74.8 Áin	1.9 Ám	Push-Pull	Tin-Lead	6.1 mm	0.24 in		Automotive General Purpose Lighting Medical Telecommunications	Keying Slot	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	0.135 in	3.43 mm	All	Board to Cable/Wire	2	Male Pin	0.365 in	9.27 mm	Black	UL94 V-0	Solder	30 Áin	0.76 Ám	12.7 mm	0.5 "	Phosphor Bronze	Header	Shrouded - 4 Wall	Gold	40
