T 3400 Series

Catalog

CONN PLUG HSNG MALE 6POS INLINE

Part	Housing Color	Note	Contact Size	Contact Type	Ingress Protection	Shielding	Shell Size - Insert	Contact Shape	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Orientation	Connector Type	Shell Finish	Shell Material	Features	Material Flammability Rating	Type	Insert Material	Fastening Type	Current Rating (Amps)	Contact Finish - Mating	Voltage Rating	Primary Material	Color

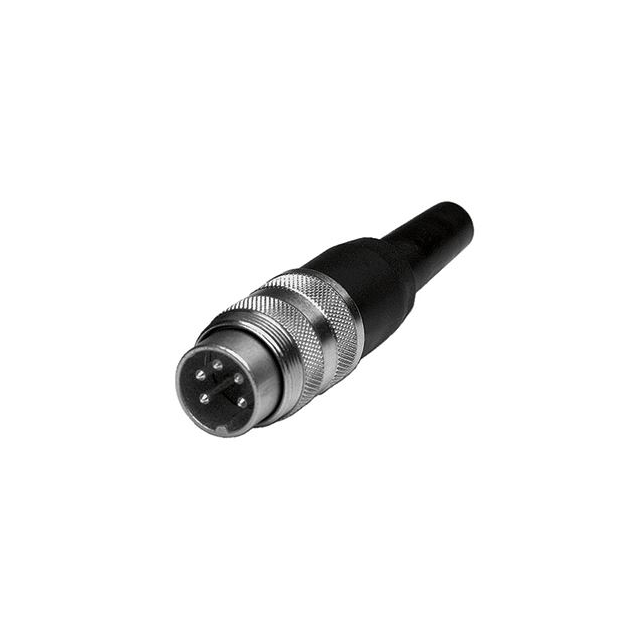

Amphenol Tuchel Industrial T 3400 551	Silver	Contacts Not Included	1.5 mm	Crimp	IP40	Shielded	M16-6	Circular	6	-40 C	100 °C	Free Hanging (In-Line)	Keyed	Plug Housing	Nickel	Die Cast	Cable Clamp Coupling Nut Strain Relief	UL94 V-0	For Male Pins	Thermoplastic	Threaded

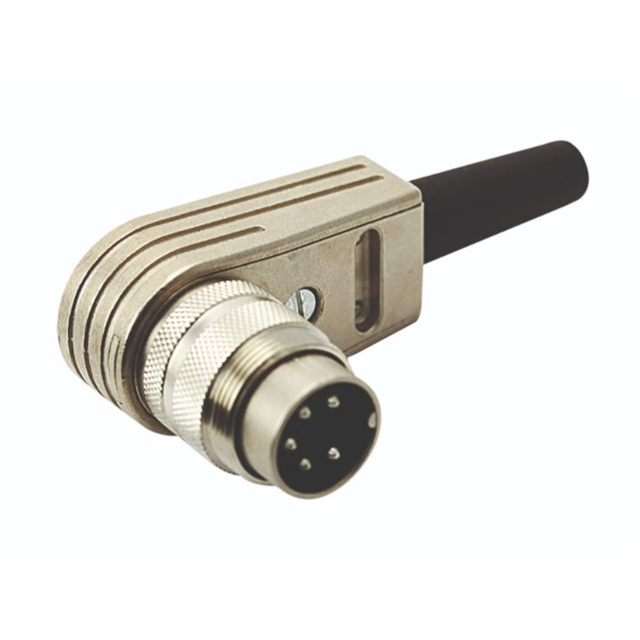

Amphenol Tuchel Industrial T 3400 058					IP40	Shielded	M16-6		6	-40 C	100 °C	Free Hanging (In-Line) Right Angle	Keyed	Plug Male Pins	Nickel	Die Cast	Strain Relief				Threaded	7 A	Gold	250 V	Metal	Silver
Amphenol Tuchel Industrial T 3400 028					IP40	Shielded	M16-6		6	-40 C	100 °C	Free Hanging (In-Line)	Keyed	Plug Male Pins	Nickel	Die Cast	Cable Clamp Strain Relief				Threaded	7 A	Gold	250 V	Metal	Silver
Amphenol Tuchel Industrial T 3400 552	Black Silver	Contacts Not Included	1.5 mm	Crimp	IP40	Shielded	M16-6	Circular	6	-40 C	100 °C	Free Hanging (In-Line)	Keyed	Plug Housing	Nickel	Die Cast	Backshell Cable Clamp Coupling Nut	UL94 V-0	For Male Pins	Thermoplastic	Threaded
Amphenol Tuchel Industrial T 3400 002					IP40	Shielded	M16-6		6	-40 C	100 °C	Free Hanging (In-Line)	Keyed	Plug Male Pins	Nickel	Die Cast	Cable Clamp Strain Relief				Threaded	7 A	Silver	250 V	Metal	Silver
