70000 Series Series
Miniature Toggle Switch Rocker Switches Rocker
Manufacturer: Littelfuse/Commercial Vehicle Products
Catalog
Miniature Toggle Switch Rocker Switches Rocker
...
| Part | Voltage Rating - AC | Switch Function | Features | Current Rating (Amps) | Termination Style | Bushing Thread | Voltage Rating - DC | Actuator Length [x] | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Illumination | Actuator Type | Actuator Material | Electrical Life | Panel Cutout Dimensions [diameter] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | 120 V | On-On | Epoxy Sealed Terminals | 5 A | PC Pin | Unthreaded | 28 V | 18.59 mm | DPDT | -30 ░C | 85 °C | Right Angle Through Hole Vertical | Non-Illuminated | Locking Lever | Brass Chrome Plated | 100000 Cycles | ||
 Littelfuse/Commercial Vehicle Products | 20 V | On-On-On | Jumper needed to achieve triple throw | 0.4 VA | Wire Wrap | Unthreaded | 20 V | 10.67 mm | SP3T | -30 ░C | 85 °C | Through Hole | Non-Illuminated | Standard Round | Brass Chrome Plated | 40000 Cycles | ||
Littelfuse/Commercial Vehicle Products | 120 V | On-On | Epoxy Sealed Terminals | 5 A | PC Pin | 1/4-40 | 28 V | 5.08 mm | DPDT | -30 ░C | 85 °C | Panel Mount Right Angle | Non-Illuminated | Anti-Rotation | Brass Chrome Plated | 100000 Cycles | 0.25 in | |
Littelfuse/Commercial Vehicle Products | 20 V | On-On | Black Actuator | 0.4 VA | Solder Lug | 1/4-40 | 20 V | 12.45 mm | SPDT | -30 ░C | 85 °C | Non-Illuminated | Standard Round | Brass Chrome Plated | 100000 Cycles | 0.25 in | ||
 Littelfuse/Commercial Vehicle Products | 120 V | Mom-On-Mom | Jumper needed to achieve triple throw | 5 A | Solder Lug | 1/4-40 | 28 V | 21.33 mm | DP3T | -30 ░C | 85 °C | Non-Illuminated | Flat Anti-Rotation | Brass Chrome Plated | 40000 Cycles | 0.25 in | ||
Littelfuse/Commercial Vehicle Products | 20 V | On-Off-On | Epoxy Sealed Terminals | 0.4 VA | Wire Wrap | 1/4-40 | 20 V | 21.33 mm | 4PDT | -30 ░C | 85 °C | Non-Illuminated | Flat Anti-Rotation | Brass Chrome Plated | 40000 Cycles | 0.25 in | IP67 - Dust Tight Waterproof | |
Littelfuse/Commercial Vehicle Products | 20 V | On-Off-On | Epoxy Sealed Terminals | 0.4 VA | PC Pin | Unthreaded | 20 V | 8.13 mm | SPDT | -30 ░C | 85 °C | Right Angle Through Hole Vertical | Non-Illuminated | Flat Anti-Rotation | Brass Chrome Plated | 40000 Cycles | ||
Littelfuse/Commercial Vehicle Products | 120 V | On-Off-Mom | Epoxy Sealed Terminals | 5 A | PC Pin | M6 x 0.75 | 28 V | 10.67 mm | SPDT | -30 ░C | 85 °C | Non-Illuminated | Standard Round | Brass Chrome Plated | 40000 Cycles | 6.5 mm | ||
Littelfuse/Commercial Vehicle Products | 120 V | On-On | Black Actuator | 5 A | Solder Lug | 1/4-40 | 28 V | 8.13 mm | DPDT | -30 ░C | 85 °C | Non-Illuminated | Flat Anti-Rotation | Brass Chrome Plated | 100000 Cycles | 0.25 in | ||
Littelfuse/Commercial Vehicle Products | 120 V | On-On | Epoxy Sealed Terminals | 5 A | PC Pin | Unthreaded | 28 V | 5.08 mm | DPDT | -30 ░C | 85 °C | Right Angle Through Hole Vertical | Non-Illuminated | Anti-Rotation | Brass Chrome Plated | 100000 Cycles |
Key Features
• Available with knurled cap for no slip grip
• Multi-pole and multi-position
• Wide variety of actuator and termination options
• Epoxy terminal-seal compatible with bottom wash cleaning
Description
AI

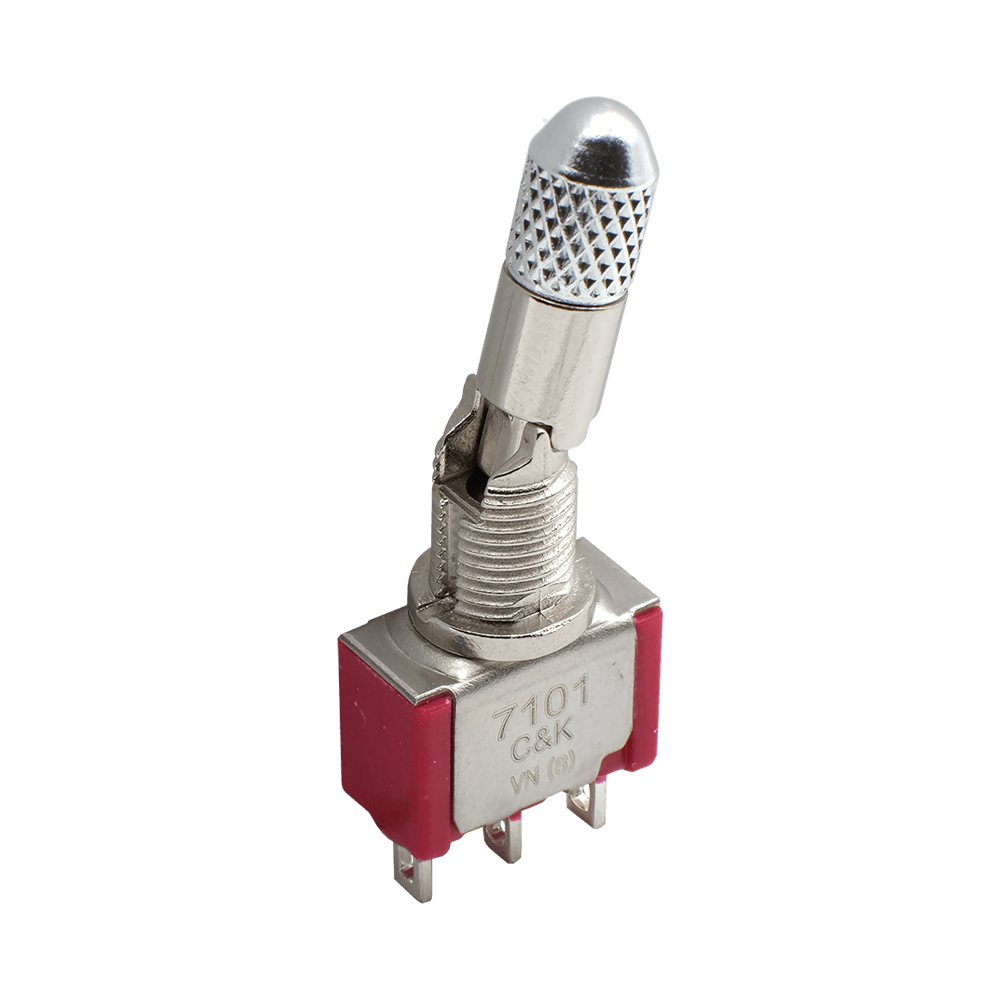

With a wide variety of actuator and termination options available, the 7000 series miniature toggle switches from C&K, which now includes an optional knurled cap on the locking lever options, are used by designers throughout the medical equipment and telecommunications industry to give product designs the long-lasting, high performance switch they need to succeed. The 7000 series are epoxy terminal-seal compatible with bottom wash cleaning and are engineered to be both multi-pole and multi-position, ensuring a perfect fit, no matter the design specifications.
