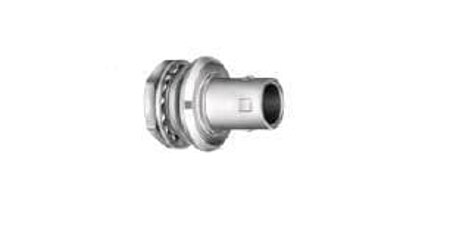

FWG.2B Series
Manufacturer: LEMO
Beta
⌘K
CONN PLUG MALE 7P GOLD SLDR CUP
| Part | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Shell Material | Shielding | Orientation [custom] | Shell Finish | Shell Size - Insert [custom] | Mounting Type | Insert Material | Connector Type | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Current Rating (Amps) | Contact Material | Ingress Protection | Fastening Type | Material Flammability Rating | Mounting Feature | Color | Backshell Material, Plating | Contact Finish - Mating | Shell Size - Insert | Termination | Note | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Metal | -55 C | 250 °C | 7 | Brass | Shielded | G | Chrome | 307 | Panel Mount | Polyetheretherketone (PEEK) | Plug Male Pins | 39.4 µin | 1 µm | 11 A | Brass | IP50 - Dust Protected | Push-Pull | UL94 V-0 | Bulkhead - Rear Side Nut | Silver | Brass Chrome | Gold | ||||
LEMO | Metal | -55 C | 250 °C | 5 | Brass | Shielded | G | Chrome | Panel Mount | Polyetheretherketone (PEEK) | Plug Male Pins | 39.4 µin | 1 µm | 14 A | Brass | IP50 - Dust Protected | Push-Pull | UL94 V-0 | Bulkhead - Rear Side Nut | Silver | Brass Chrome | Gold | 305 | ||||
LEMO | Metal | -55 C | 250 °C | 10 | Brass | Shielded | G | Chrome | Panel Mount | Polyetheretherketone (PEEK) | Plug Male Pins | 39.4 µin | 1 µm | 8 A | Brass | IP50 - Dust Protected | Push-Pull | UL94 V-0 | Bulkhead - Rear Side Nut | Silver | Brass Chrome | Gold | 310 | ||||
LEMO | Metal | -55 C | 250 °C | 12 | Brass | Shielded | G | Chrome | Panel Mount | Polyetheretherketone (PEEK) | Plug Male Pins | 39.4 µin | 1 µm | 7 A | Brass | IP50 - Dust Protected | Push-Pull | UL94 V-0 | Bulkhead - Rear Side Nut | Silver | Brass Chrome | Gold | 312 | ||||
LEMO | Metal | -55 C | 250 °C | 6 | Brass | Shielded | G | Chrome | Panel Mount | Polyetheretherketone (PEEK) | Plug Male Pins | 39.4 µin | 1 µm | 12 Amps | Brass | IP50 - Dust Protected | Push-Pull | UL94 V-0 | Bulkhead - Rear Side Nut | Silver | Brass Chrome | Gold | 306 | ||||
LEMO | Metal | -55 C | 250 °C | 4 | Brass | Shielded | G | Chrome | Panel Mount | Polyetheretherketone (PEEK) | Plug Male Pins | 39.4 µin | 1 µm | 15 A | Brass | IP50 - Dust Protected | Push-Pull | UL94 V-0 | Bulkhead - Rear Side Nut | Silver | Brass Chrome | Gold | 304 | ||||
LEMO | Metal | -55 C | 250 °C | 8 | Brass | Shielded | G | Chrome | Panel Mount | Polyetheretherketone (PEEK) | Plug Male Pins | 39.4 µin | 1 µm | 10 A | Brass | IP50 - Dust Protected | Push-Pull | UL94 V-0 | Bulkhead - Rear Side Nut | Silver | Brass Chrome | Gold | 308 | Crimp | |||
LEMO | -55 C | 250 °C | Brass | Shielded | G | Chrome | Panel Mount | Insert Shell | IP50 - Dust Protected | Detent Lock Push-Pull | Bulkhead - Rear Side Nut | Contacts Not Included; Insert Not Included | Silver | ||||||||||||||
LEMO | Metal | -55 C | 250 °C | 5 | Brass | Shielded | G | Chrome | Panel Mount | Polyetheretherketone (PEEK) | Plug Male Pins | 39.4 µin | 1 µm | 5 A | Brass | IP50 - Dust Protected | Push-Pull | UL94 V-0 | Bulkhead - Rear Side Nut | Silver | Brass Chrome | Gold | 704 | ||||
LEMO | Metal | -55 C | 250 °C | 8 | Brass | Shielded | G | Chrome | Panel Mount | Polyetheretherketone (PEEK) | Plug Male Pins | 39.4 µin | 1 µm | 10 A | Brass | IP50 - Dust Protected | Push-Pull | UL94 V-0 | Bulkhead - Rear Side Nut | Silver | Brass Chrome | Gold | 308 |
