NPPC262 Series

Catalog

CONN HDR 52POS 0.1 GOLD SMD

Part	Contact Material	Insulation Material	Contact Shape	Contact Finish Thickness - Post	Number of Rows [custom]	Voltage Rating	Current Rating (Amps)	Contact Type	Connector Type	Pitch - Mating	Pitch - Mating	Mounting Type	Termination	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Number of Positions	Insulation Height [z]	Insulation Height	Contact Finish - Post	Material Flammability Rating	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]

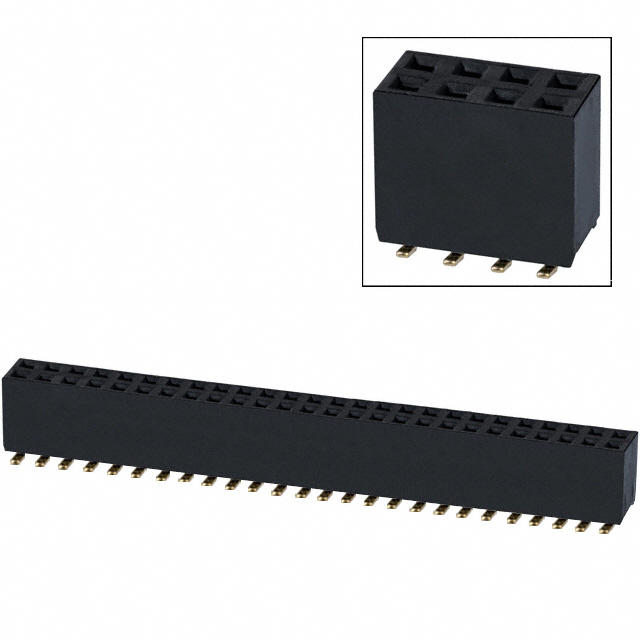

Sullins Connector Solutions NPPC262KFMS-RC	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	Flash	2	250 V	3 A	Female Socket	Header	0.1 "	2.54 mm	Surface Mount	Solder	Black	125 °C	-40 C	All	Push-Pull	0.1 in	2.54 mm	Flash	52	0.299 "	7.6 mm	Gold	UL94 V-0	Gold
Sullins Connector Solutions NPPC262LJBN-RC	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	Flash	2	250 V	3 A	Female Socket	Header	0.1 "	2.54 mm	Right Angle Through Hole	Solder	Black	105 ░C	-40 C	All	Push-Pull	0.1 in	2.54 mm	Flash	52	0.2 in		Gold	UL94 V-0	Gold	0.124 in	3.15 mm	5.08 mm
Sullins Connector Solutions NPPC262LFBN-RC	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	Flash	2	250 V	3 A	Female Socket	Header	0.1 "	2.54 mm	Through Hole	Solder	Black	105 ░C	-40 C	All	Push-Pull	0.1 in	2.54 mm	Flash	52		8.51 mm	Gold	UL94 V-0	Gold				0.335 "	0.126 "	3.2 mm
