05JQ Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

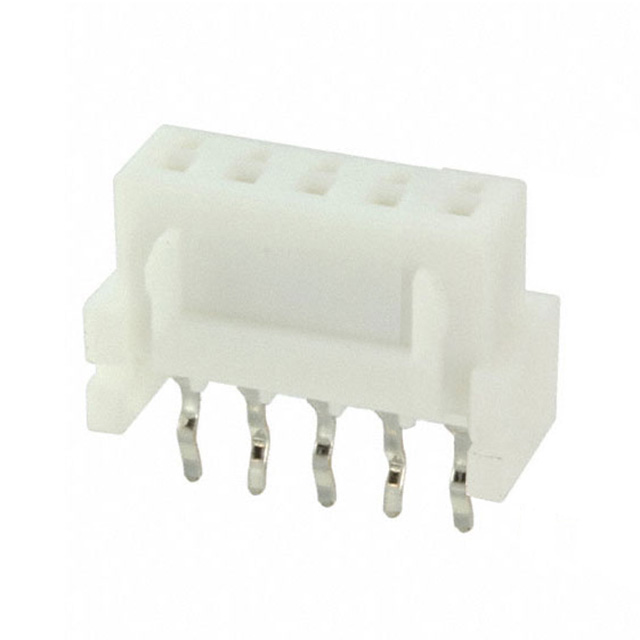

CONN RCPT 5POS 0.098 TIN PCB R/A
| Part | Contact Shape | Insulation Material | Contact Material | Connector Type | Number of Positions | Pitch - Mating | Pitch - Mating | Insulation Color | Current Rating (Amps) | Termination | Voltage Rating | Mounting Type | Insulation Height [custom] | Insulation Height [custom] | Contact Type | Number of Rows | Number of Positions Loaded | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Insulation Height [z] | Insulation Height [z] | Mated Stacking Heights |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Square | Nylon 6/6 Polyamide (PA66) | Phosphor Bronze | Receptacle | 5 | 2.5 mm | 0.098 in | Natural | 3 A | Press-Fit Solder | 250 V | Right Angle Through Hole | 0.236 " | 6 mm | Female Socket | 1 | All | Friction Lock | 85 °C | -25 °C | UL94 V-0 | |||
 JST Sales America Inc. | Square | Nylon 6/6 Polyamide (PA66) | Phosphor Bronze | Receptacle | 5 | 2.5 mm | 0.098 in | Natural | 3 A | Press-Fit Solder | 250 V | Through Hole | Female Socket | 1 | All | Friction Lock | 85 °C | -25 °C | UL94 V-0 | 9.5 mm | 0.374 in | 11.8 mm |
