M2028SS Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE DPDT 0.4VA 28V
| Part | Actuator Material | Electrical Life | Illumination | Actuator Type | Mounting Type | Circuit | Voltage Rating - AC | Bushing Thread | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Termination Style | Switch Function | Features | Actuator Length [x] | Bushing Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | Brass Chrome Plated | 50000 Cycles | Non-Illuminated | Standard Round | Panel Mount | DPDT | 28 V | 1/4-40 | 0.4 VA | 85 °C | -30 ░C | 6.5 mm | 28 V | Solder Lug | Mom-Off-Mom | Epoxy Sealed Terminals | ||
 NKK Switches | Brass Chrome Plated | 50000 Cycles | Non-Illuminated | Standard Round | Panel Mount | DPDT | 28 V | 1/4-40 | 0.4 VA | 85 °C | -30 ░C | 6.5 mm | 28 V | Wire Wrap | Mom-Off-Mom | Epoxy Sealed Terminals | ||
 NKK Switches | Brass Chrome Plated | 25000 Steps | Non-Illuminated | Standard Round with Cap | Panel Mount | DPDT | 125 V | 1/4-40 | 3 A 6 A | 85 °C | -30 ░C | 6.5 mm | 30 V | PC Pin | Mom-Off-Mom | Black Cap | 13.1 mm | |
 NKK Switches | Brass Chrome Plated | 25000 Steps | Non-Illuminated | Standard Round | Panel Mount | DPDT | 125 V | 1/4-40 | 3 A 6 A | 85 °C | -30 ░C | 6.5 mm | 30 V | PC Pin | Mom-Off-Mom | Epoxy Sealed Terminals | ||

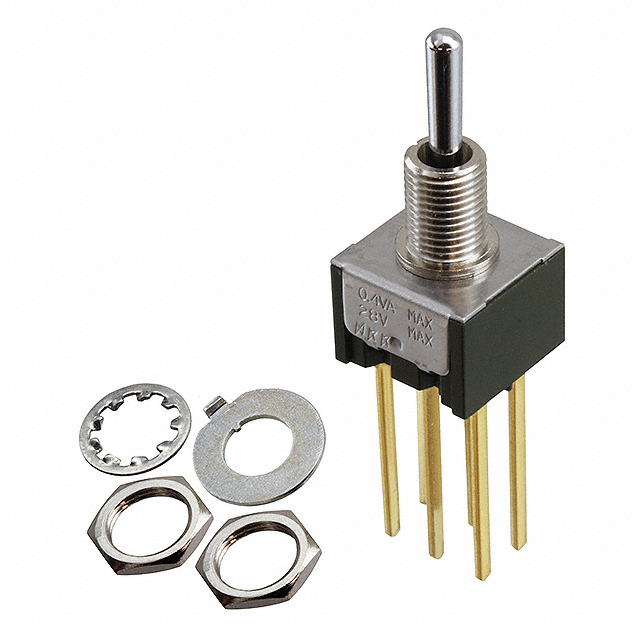

NKK Switches | Brass Chrome Plated | 50000 Cycles | Non-Illuminated | Standard Round with Cap | Through Hole | DPDT | 28 V | Unthreaded | 0.4 VA | 85 °C | -30 ░C | 6.5 mm | 28 V | PC Pin | Mom-Off-Mom | Red Cap | 13.5 mm | |
NKK Switches | Brass Chrome Plated | 25000 Steps | Non-Illuminated | Standard Round with Cap | Panel Mount | DPDT | 125 V | 1/4-40 | 3 A 6 A | 85 °C | -30 ░C | 6.5 mm | 30 V | Solder Lug | Mom-Off-Mom | White Cap | 13.5 mm | |
NKK Switches | Brass Chrome Plated | 25000 Steps | Non-Illuminated | Standard Round with Cap | Panel Mount | DPDT | 125 V | 1/4-40 | 3 A 6 A | 85 °C | -30 ░C | 6.5 mm | 30 V | Quick Connect - 0.062" (1.5mm) | Mom-Off-Mom | Blue Cap | 13.5 mm | |
 NKK Switches | Brass Chrome Plated | 25000 Steps | Non-Illuminated | Standard Round | Panel Mount | DPDT | 125 V | 1/4-40 | 3 A 6 A | 85 °C | -30 ░C | 6.5 mm | 30 V | Solder Lug | Mom-Off-Mom | Epoxy Sealed Terminals | ||

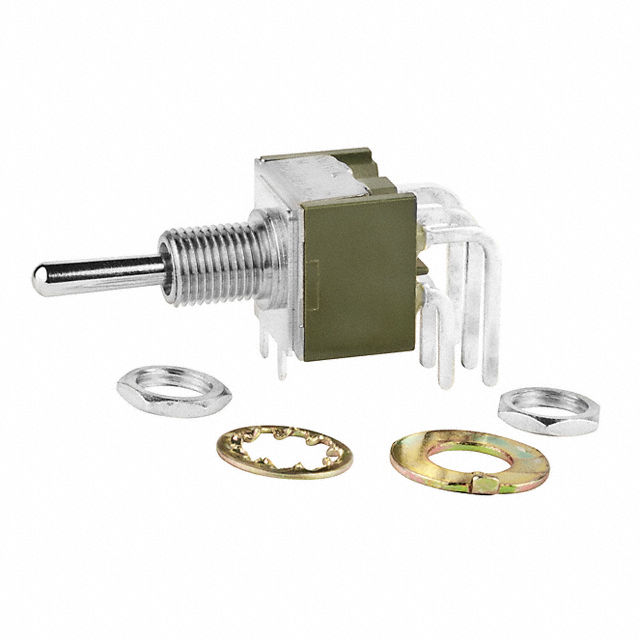

 NKK Switches | Brass Chrome Plated | 25000 Steps | Non-Illuminated | Standard Round | Right Angle Through Hole | DPDT | 125 V | 1/4-40 | 3 A 6 A | 85 °C | -30 ░C | 6.5 mm | 30 V | PC Pin | Mom-Off-Mom | Epoxy Sealed Terminals | ||
NKK Switches | Brass Chrome Plated | 25000 Steps | Non-Illuminated | Standard Round | Panel Mount | DPDT | 125 V | M6 | 3 A 6 A | 85 °C | -30 ░C | 6.5 mm | 30 V | Solder Lug | Mom-Off-Mom | Epoxy Sealed Terminals | 0.75 |
