US1D Series

Catalog

ULTRA FAST RECOVERY RECTIFIER 1A 2-PIN DO-214AC T/R

Part	Speed	Mounting Type	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Reverse Recovery Time (trr)	Current - Average Rectified (Io)	Package / Case	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Capacitance @ Vr, F	Voltage - Forward (Vf) (Max) @ If [Max]	Supplier Device Package
Panjit International Inc. US1D_R1_00001	200 mA 500 ns	Surface Mount	Standard	200 V	1 µA	50 ns	1 A	DO-214AC SMA	-55 °C	150 °C	17 pF	1 V	DO-214AC (SMA)

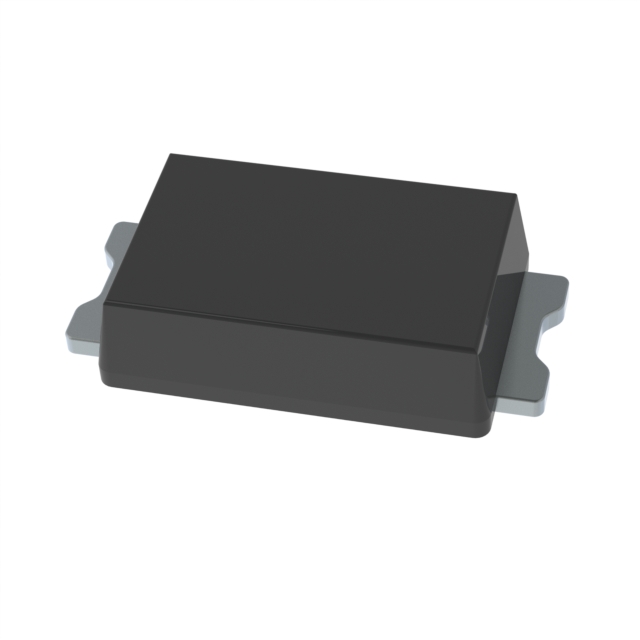

Panjit International Inc. US1DAFC_R1_00001	200 mA 500 ns	Surface Mount	Standard	200 V	1 µA	50 ns	1 A	DO-221AC SMA Flat Leads	-55 °C	150 °C	20 pF	1 V
