CWR Series

Catalog

D-SUB STANDARD CONNECTORS IDC COMMERCIAL D-SUB

Part	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Dielectric Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Connector Type	Material Flammability Rating	Mounting Type	Shell Size, Connector Layout	Shell Size, Connector Layout	Number of Positions	Connector Style	Contact Type	Flange Feature	Features	Termination	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout [x]	Row Spacing	Row Spacing	Cable Termination	Pitch	Pitch	Wire Type
CW Industries CWR-182-37-0021	30 AWG	27.5 AWG	Phosphor Bronze	Thermoplastic	Blue	-55 C	125 °C	2	Receptacle Male Pins	UL94 V-0	Free Hanging (In-Line)	4	DC C	37	D-Sub	Signal	Housing/Shell (Unthreaded)	Strain Relief	IDC Ribbon Cable	Gold	30 Áin	0.76 Ám

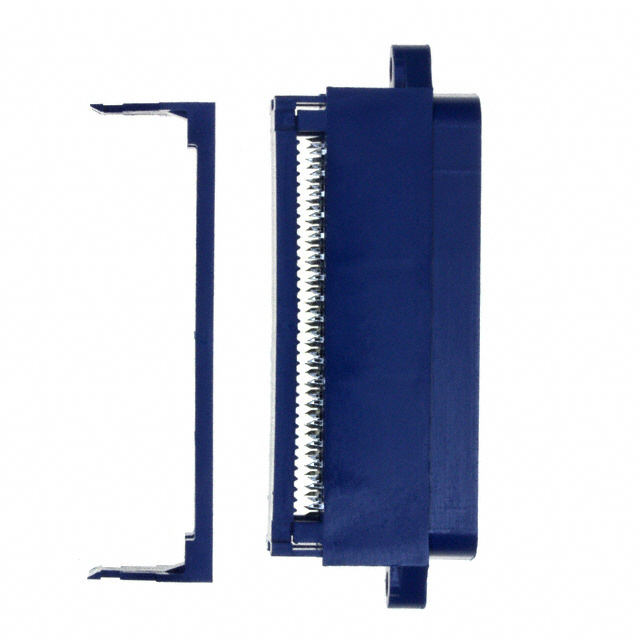

CW Industries CWR-180-37-0203	30 AWG	27.5 AWG	Phosphor Bronze	Thermoplastic	Blue	-55 C	125 °C	2	Receptacle Male Pins	UL94 V-0	Free Hanging (In-Line)	4	DC C	37	D-Sub	Signal	Housing/Shell (Unthreaded)	Feed Through Strain Relief	IDC Ribbon Cable	Tin	100 µin	2.54 µm
CW Industries CWR-183-15-0021	30 AWG	27.5 AWG	Phosphor Bronze	Thermoplastic	Blue	-55 C	125 °C	2	Receptacle Male Pins	UL94 V-0	Free Hanging (In-Line)	2		15	D-Sub	Signal	Housing/Shell (Unthreaded)	Strain Relief	IDC Ribbon Cable	Gold	30 Áin	0.76 Ám

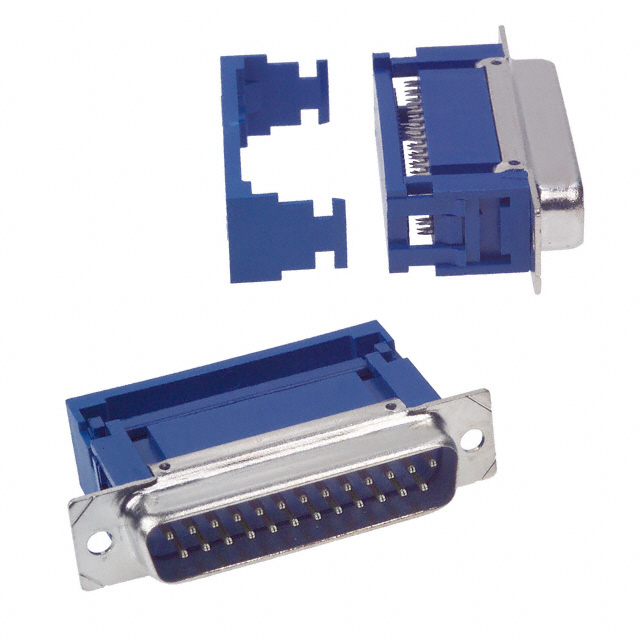

CW Industries CWR-280-25-0203	30 AWG	27.5 AWG	Phosphor Bronze	Thermoplastic	Blue			2	Receptacle Male Pins	UL94 V-0	Free Hanging (In-Line)		B DB	25	D-Sub	Signal	Housing/Shell (Unthreaded)	Feed Through Shielded Strain Relief	IDC Ribbon Cable	Tin	100 µin	2.54 µm	3
CW Industries CWR-217-16-0203					Blue			2	Receptacle		Free Hanging (In-Line)			16		Female Socket		Feed Through Polarizing Key Strain Relief		Tin				2.54 mm	0.1 "	IDC	0.1 "	2.54 mm	Ribbon Cable
CW Industries CWR-280-37-0203								2	Receptacle Male Pins	UL94 V-0	Free Hanging (In-Line)	4	DC C	37	D-Sub	Signal	Housing/Shell (Unthreaded)	Feed Through Shielded Strain Relief	IDC Ribbon Cable	Tin	100 µin	2.54 µm
CW Industries CWR-281-37-0003	30 AWG	27.5 AWG	Phosphor Bronze	Thermoplastic	Blue			2	Plug Female Sockets	UL94 V-0	Free Hanging (In-Line)	4	DC C	37	D-Sub	Signal	Housing/Shell (Unthreaded)	Feed Through Shielded Strain Relief	IDC Ribbon Cable	Tin	100 µin	2.54 µm
