813-S1 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN SPRING PISTON 18POS SMD

...

Part	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Row Spacing	Row Spacing	Material	Mounting Type	Number of Rows [custom]	Number of Contacts [custom]	Number of Contacts
Preci-Dip 813-S1-018-30-017191	0.1 "	2.54 mm	19.7 µin	0.5 µm	Piston	Gold	2.54 mm	0.1 "	Brass	Surface Mount	2
Preci-Dip 813-S1-014-30-015101	0.1 "	2.54 mm	19.7 µin	0.5 µm	Piston	Gold	2.54 mm	0.1 "	Brass	Surface Mount	2	14
Preci-Dip 813-S1-040-10-016101	0.1 "	2.54 mm	19.7 µin	0.5 µm	Piston	Gold	2.54 mm	0.1 "	Brass	Through Hole	2		40
Preci-Dip 813-S1-010-10-015101	0.1 "	2.54 mm	19.7 µin	0.5 µm	Piston	Gold	2.54 mm	0.1 "	Brass	Through Hole	2		10
Preci-Dip 813-S1-018-10-014101	0.1 "	2.54 mm	19.7 µin	0.5 µm	Piston	Gold	2.54 mm	0.1 "	Brass	Through Hole	2
Preci-Dip 813-S1-012-30-015191	0.1 "	2.54 mm	19.7 µin	0.5 µm	Piston	Gold	2.54 mm	0.1 "	Brass	Surface Mount	2	12

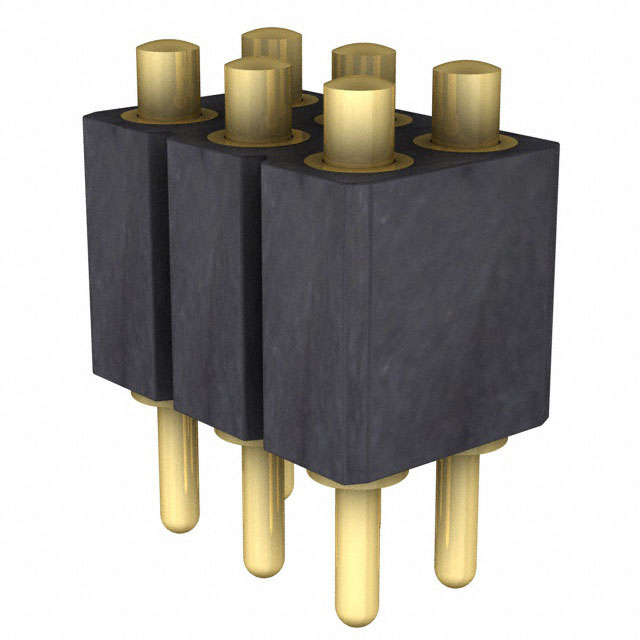

Preci-Dip 813-S1-006-10-017101	0.1 "	2.54 mm	19.7 µin	0.5 µm	Piston	Gold	2.54 mm	0.1 "	Brass	Through Hole	2		6
Preci-Dip 813-S1-026-10-014101	0.1 "	2.54 mm	19.7 µin	0.5 µm	Piston	Gold	2.54 mm	0.1 "	Brass	Through Hole	2		26
Preci-Dip 813-S1-008-30-017101	0.1 "	2.54 mm	19.7 µin	0.5 µm	Piston	Gold	2.54 mm	0.1 "	Brass	Surface Mount	2		8

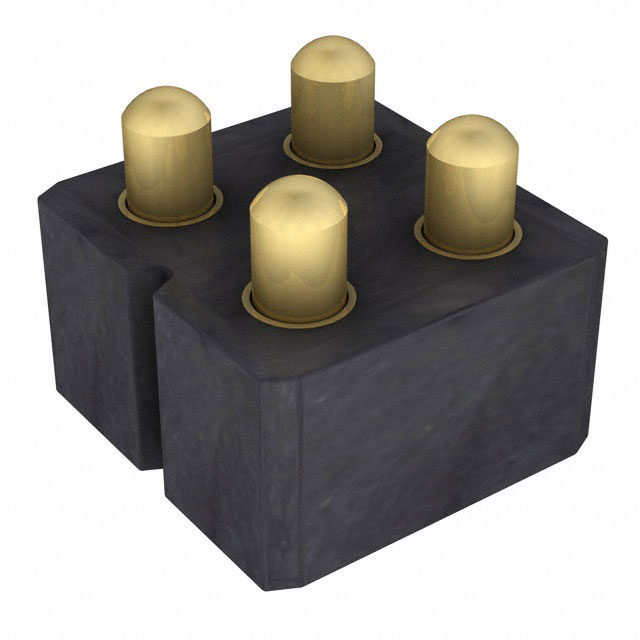

Preci-Dip 813-S1-004-30-015101	0.1 "	2.54 mm	19.7 µin	0.5 µm	Piston	Gold	2.54 mm	0.1 "	Brass	Surface Mount	2		4
